Help CenterHot Sale! Multi-head (Movable) Auto Feeding Laser Cutting Machine BCL-1814XH2(3)H(M)A From Jinan Bodor
Related Products
-
Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)ANegotiableMOQ: 1 Set -
Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A From Jinan BodorNegotiableMOQ: 1 Set
-
Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A Made in ChinaNegotiableMOQ: 1 Set
-
China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)ANegotiableMOQ: 1 Set
-
Hot Sale! China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A for ClothNegotiableMOQ: 1 Set
Specifications
Save timereduce cost
improve work efficiency for you
2. BCL1814XH2(3)HMA with electric laser head that can move freely, you could adjust distance between two heads according your needs. It is no need to move by hand any more .Each head can finish whole format processing work independently.
| Model | BCL1814XH2HA | BCL1814XH2HMA | BCL1814XH3HA | Option |
| Amountof Laser Head | Double-head | Double-head | Three-head | According to Demands |
| Lase Head Adjustment | Manually | Electrically | Manually | |
| Working Area | 1800*1400mm | |||
| Laser Power | 60w/80w/100w/130w/150w | |||
| Laser Type | CO2 Sealed Laser Tube,10.6μm | |||
| Cooling Type | Water Cooling | |||
| Max.Moving Speed | 1600mm/s | |||
| Max.Working Speed | 1400mm/s | |||
| Laser Output Control | 0-100% Set by Software | |||
| Min.Character Engraved | Chinese:2.0mm×2.0mm,Englishletter:1.0mm×1.0mm | |||
| Highest Scanning Precision | 4000DPI | |||
| Locating Accuracy | ≤+0.02mm | |||
| Controlling Software | DSP Control System | |||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | |||
| Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. | |||
| Color Separation | Yes | |||
| Drive System | High-precision 3-phase Stepper Motor | |||
| Auxiliary Equipments | Exhaust Fan and Smoke Pipe | |||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | |||
| Working Environment | Temperature0-45°C,Humidity5-95%(No Condensate Water) | |||
Warranty and after sale service:
Warranty the whole machine for 2 YEARS and laser tube for 4 months; offer lifelong repair; laser tube’s
average life is 4000-10000 working hours(depends on the laser power); Offer 24 - hour technical support.
About Bodor

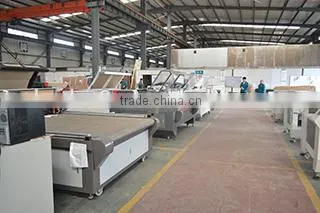

Jinan Bodor CNC Machine Co.,Ltd has been always devoting to the research and manufacturing of the CNC products such as Cutting, Engraving and Marking Machines and so on.Today, Bodor CNC has developed to a large worldwide Manufacturing Group, and becomes an excellent leader of the world in this field.
Bodor CNC was founded in 2002, and changed its name to "bodor" formly in 2008.We can supply Laser Cutting, Engraving and Marking Machines,Dot Peen Marking Machines, and many other industrial automation equipments.Meanwhile,we can also supply industrial automation sulutions according to your special needs.
Bodor CNC has earned ourselves a good reputation and ten thousands of faithful customers with our advanced technology,standardized producing management,stable products,and the best services.Through years of international marketing experience,we have established business relationships with customers from North America,West Europe,South Asia,and Middle East,etc.Welcome to join the world of Bodor CNC,you can experience the world-class products and services together with our customers all over the world.
