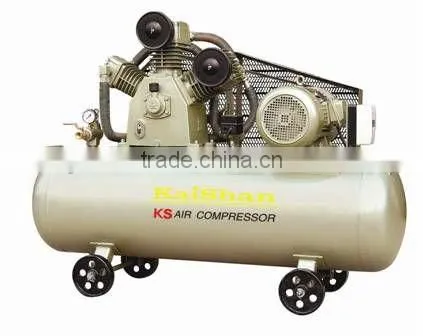

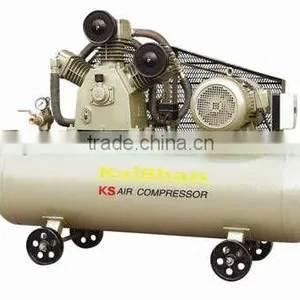

Help CenterKS30-2.2kw,0.26m3/min,0.8Mpa,Suitable for 16 Hours of Continuous Operation KS Series Reciprocating Air Compressor
Related Products
-
KS40-3.0kw,0.4m3/min,0.8Mpa,Suitable for 16 Hours of Continuous Operation KS Series Reciprocating Air CompressorUS$ 500 - 3,000MOQ: 1 Set -
KS55-4.0kw,0.55m3/min,0.8Mpa,Suitable for 16 Hours of Continuous Operation KS Series Reciprocating Air CompressorUS$ 500 - 3,000MOQ: 1 Set
-
KS100-7.5kw,1.0m3/min,0.8Mpa,Suitable for 16 Hours of Continuous Operation KS Series Reciprocating Air CompressorUS$ 500 - 3,000MOQ: 1 Set
-
KS150-11kw,1.5m3/min,0.8Mpa,Suitable for 16 Hours of Continuous Operation KS Series Reciprocating Air CompressorUS$ 500 - 3,000MOQ: 1 Set
-
KS200-15kw,2.0m3/min,0.8Mpa,Suitable for 16 Hours of Continuous Operation Reciprocating Air Compressor for IndustrialUS$ 500 - 3,000MOQ: 1 Set
Specifications
Short production and delivery time,suitable continuous operation under heavy load for long working time with higher reliabilityKS industrial piston type air compressor
1.exhaust pressure: 0.8-1.25 Mpa
2.displacement: 0.08-2.1 M3 / Min
3.motor power range: 1.1-18.5 Kw
usage
This series air compressor widely used in pneumatic lock,pneumatic tool,tire inflation,blowing process,spray paint,san blasting and fluidic element.
| KS series industrial piston type air machine technical parameters | |||||
| No. | Model | Motor power | air delivery | Max working pressure | overall dimension |
| HP/kW | m3/min | MPa(kg/cm2G) | mm×mm×mm | ||
| 1 | KS10 | 1.5/1.1 | 0.08 | 0.8(8) | 810×240×800 |
| 2 | KS15 | 2.0/1.5 | 0.12 | 0.8(8) | 860×350×710 |
| 3 | KS20 | 3.0/2.2 | 0.18 | 0.8(8) | 980×370×800 |
| 4 | KS30 | 3.0/2.2 | 0.25 | 0.8(8) | 1000×450×750 |
| 5 | KS40 | 4.0/3 | 0.4 | 0.8(8) | 1500×520×1050 |
| 6 | KS55 | 5.5/4 | 0.55 | 0.8(8) | 1500×520×1050 |
| 7 | KS75 | 7.5/5.5 | 0.75 | 0.8(8) | 1600×570×1110 |
| 8 | KS100 | 10/7.5 | 1 | 0.8(8) | 1650×600×1200 |
| 9 | KS150 | 11 | 1.5 | 0.8(8) | 1850×650×1370 |
| 10 | KS200 | 20/15 | 2 | 0.8(8) | 1850×680×1420 |
| 11 | KS240 | 20/15 | 2.4 | 0.8(8) | 1850×710×1440 |
| 11 | W327-D1 | 25/18.5 | 3.2 | 0.7(7) | 1900×880×1650 |
| 12 | KSH30 | 3.0/2.2 | 0.21 | 1.25(12.5) | 1500×520×1050 |
| 13 | KSH40 | 4.0/3 | 0.3 | 1.25(12.5) | 1500×520×1050 |
| 14 | KSH55 | 5.5/4 | 0.45 | 1.25(12.5) | 1500×520×1050 |
| 15 | KSH75 | 7.5/5.5 | 0.6 | 1.25(12.5) | 1650×600×1200 |
| 16 | KSH100 | 10/7.5 | 0.8 | 1.25(12.5) | 1650×600×1200 |
| 17 | KSH100D | 10/7.5 | 1.05 | 1.0(10) | 1650×600×1200 |
| 17 | KSH150 | 11 | 1.2 | 1.25(12.5) | 1650×650×1400 |
| 17 | KSH150D | 11 | 1.6 | 1.0(10) | 1650×700×1400 |
| 18 | KSH200 | 20/15 | 1.7 | 1.25(12.5) | 1850×800×1550 |
| 19 | KSH240 | 20/15 | 2.1 | 1.25(12.5) | 1850×800×1600 |
adventadge:
1)Special designed is made in heat emission and air flow,which leads to low air-output temp and low possibility of carbon deposit.
2)the piston ring imported from Japan is introduced in designing pistol ring,which is durable and sealable.
3)the core of air filter is made of imported filter paper,which acts well in filter and absorbing noise.
4)Lower noise level, oil free air compressor.
KS series of industrial machine characteristics
Low speed design, operation more quiet, longer life,
Reed valve design, higher efficiency;
Air filter core adopts imported filter paper production, filtration and sound attenuation effect is good, durable;
Electromagnetic switch adopts imported brands, such as: schneider, taian, etc.;
Piston ring USES the Japanese bedding mortar ring, durable, no oil;
Respirator channel using labyrinth structure, ensure that don't emit oil;
The moving parts by precision balance, smooth running, low noise,
Check valve valve core using new composite material, ensure that don't leak;
Fan wheel by zhejiang university patent technology, cooling effect is much better.
Suitable for 16 hours of continuous operation
