OEM and ODM all in one industrial panel computer with RS232 and RS485

Display

Screen Size

8″ TFT LED

Resolution

800*600

Brightness

350 cd/m2

Contrast ratio

500:1

Touch Screen

Resistive touch screen

Performance

Chipset

Intel ®ATOM N2600 + NM10

Memory

2G memory on board, up to 4GB

Hardware Monitor

Monitors voltage, TEMP and CPU fan speed

Watchdog Timer

Programmable 256 levels timer interval, from 1 to 255 sec, setup by software

Storage

SSD:16GB or optional

Power

Power Supply

Power Dissipation

100~240VAC/50~60Hz(Power adapter)

12VDC/5A or 9~18(36)VDC Optional(No power adapter)

15W (standby);

25W (Running MaxPower 100%).

O/S

Operating System

Windows XP/ Windows 7/ Linux

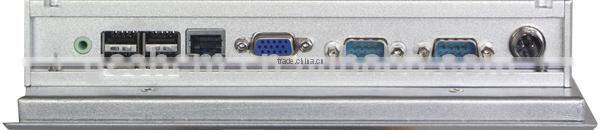

I/O

USB

4 *USB2.0

COM

2*RS232(optional 1-2 485)

LAN

1* RTL8111E RJ45 100/1000M

Audio

1*out put

Display

1*VGA

GPIO

1*GPIO(optional)

Environmental

Anti-vibration

5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration

Anti-shock

10g acceleration, 11ms duration

IP Level

Front panel IP65(Optional)

Reliability

MTBF≥50000h; MTTR≤0.5h

Operating Temperature

-10℃~50℃ (with air flow)

Storage Temperature

-20℃ ~60℃

Operating Humidity

95% @40℃, non-condensing

Mechanical

Dimensions

228mm (L) *178 mm (W) *47 mm (H)

Material

High-strength and elegant Al-alloy panel

Weight

1.7kg/2.0kg (NET./GROSS.)

Color

Slivery/Black/White
