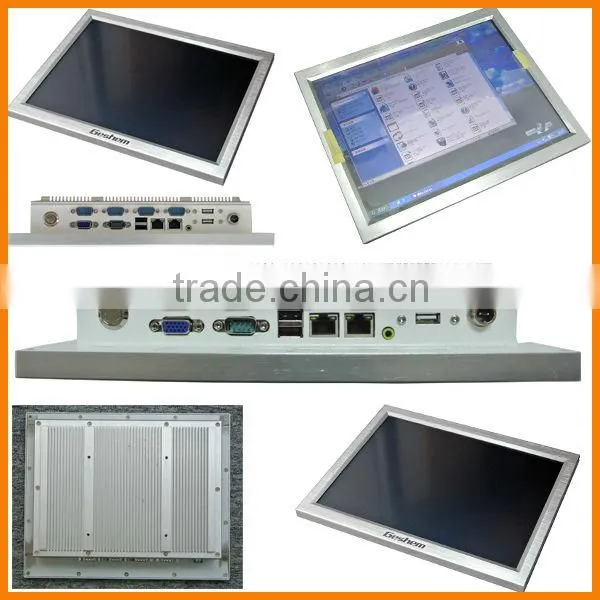

Products View
Specification
| Model | PPC-GS1201T |
| Display Features | 12'' TFT/Support VGA+LVDS; 1024x768; 350cd/m²; 400:1; touch screen |
| System | |
| Chipset | Intel Atom D525+Intel®ICH8M |
| Memory | 2G Memory(DDRIII),up to 4GB |
| Hardware Monitoring | Monitoring Voltage, temperature, CPU fan speed and etc. |
| Watchdog Timer | 1~255sec./min. timer system reset/interrupt, setup by software |
| Storage | 1x320GB 2.5''HDD |
| Ethernet | 2xRTL8111DL 10/100/1000Mbps/2xRJ45 |
| I/O Interface | 4xUSB2.0; 5xCOM; 1xPS/2(KB/MS); 1xVGA |
| Mechanical and Enviromental | |
| Dimensions | 380x300x60(LxWxH,mm) |
| IP Level(front panel) | IP65(optional) |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temp. | -10°c~50°c |
| Storage Temp. | -20°c~60°c |
| Operating Humidity | 10%~95%; non-condensing |
| Power | Power Supply: DC Power Input, Power Comsumpiton: Max. 120W |

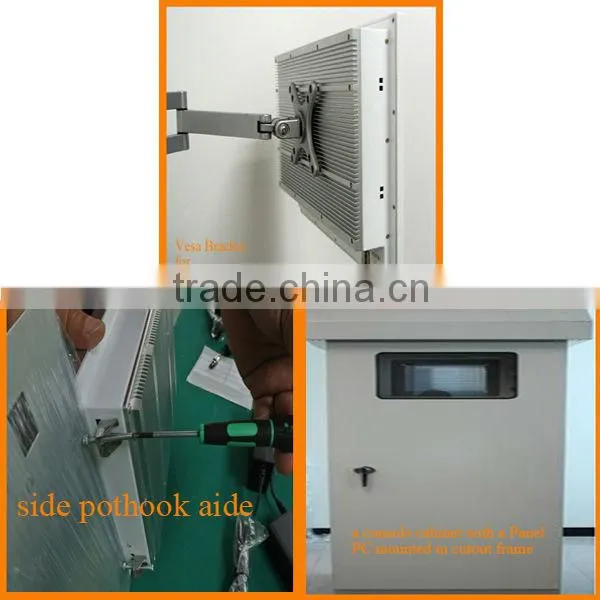

Installation
1.) Standard Vesa Bracket for Wallmount:
Vesa 100x100mm or 75x75mm
2.) Side Pothook Aide for Cutout Frame Mount
Packaging
One Set/One Carton
Carton Size : 430x190x340mm
Net Weight : 3.65kg
Gross Weight: 5.36kg
Inner carton , outer carton and foam packaging are all customized according to products dimension which provide
protection of cargo to great extend during shipment.
Accessories
Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval
Warranty
One year limited warranty

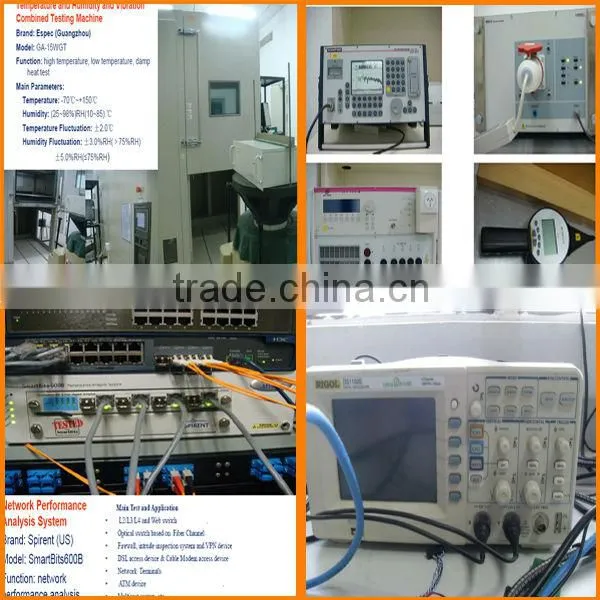

Testing Equipment
Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/
network performance analyis system/oscilloscope)

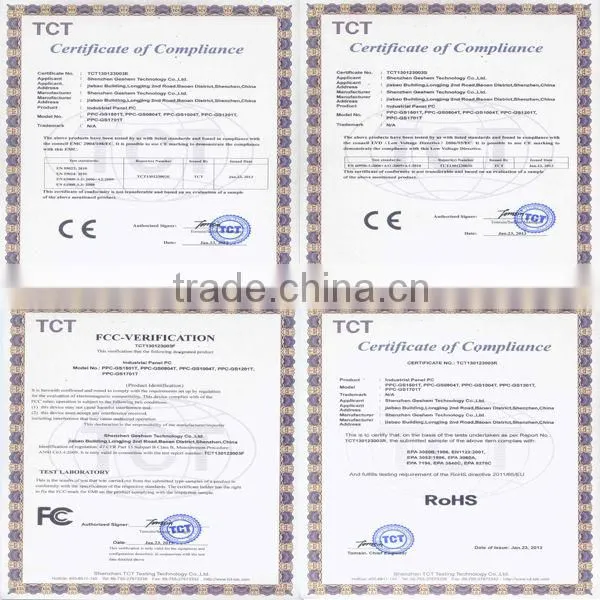

Certificate
CE / FCC/ Rohs
Advantage
Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts
to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature);
anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen);
sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell);
wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...

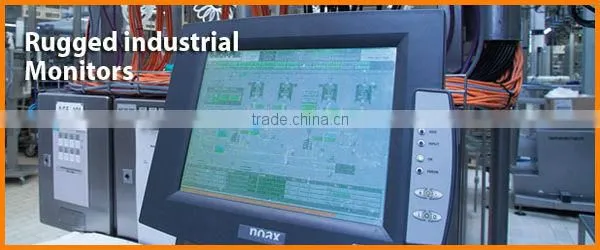

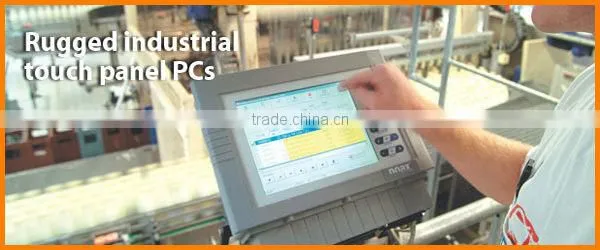

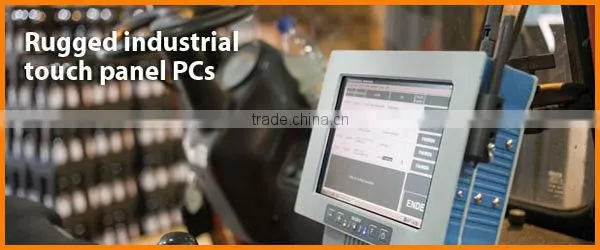

Application

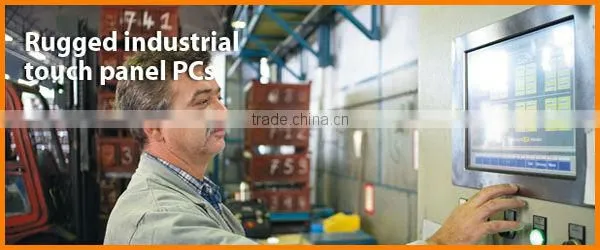

Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/
tunneling/vehicle terminal...)and mainly used as central control system.
Testing

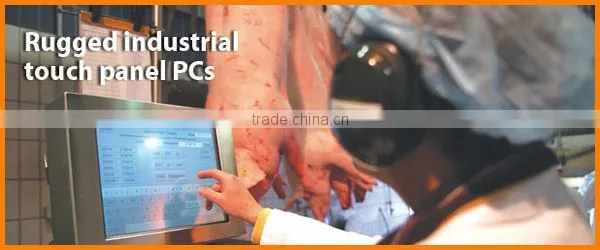

Food Processing
Logistics

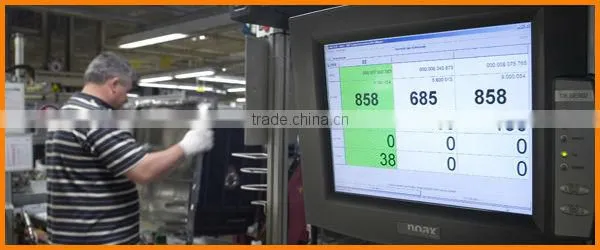

Manufacturing

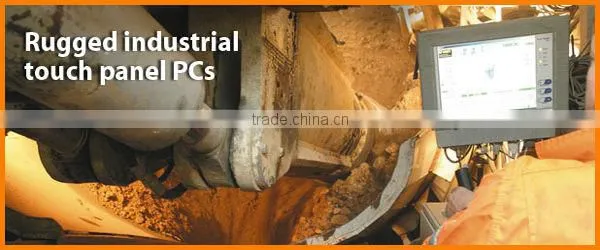

Tunneling
Vehicle Terminal
Automation
Geshem Brief
....
