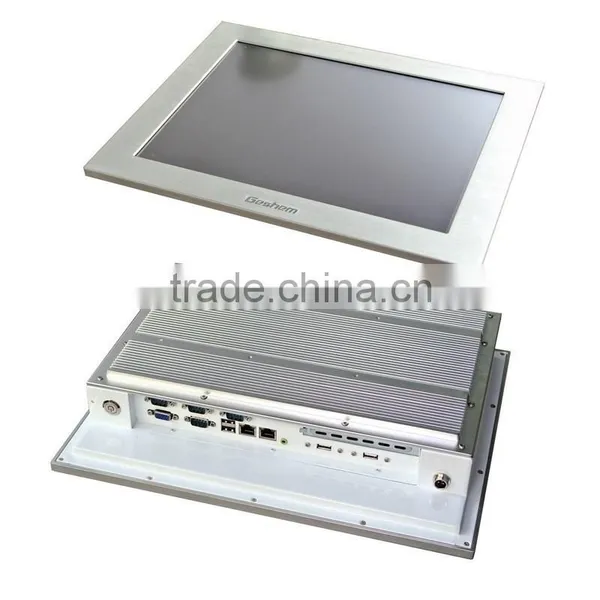

Help CenterIntel D525+ICH8-M Industrial Panel Computer, Fanless Industrial Pc, Cheap Fanless Industrial Panel Computer
Related Products
-
Industrial Touch Panel PCUS$ 520 - 585MOQ: 1 Piece -
Arm 9 1.5 Ghz Quad Core Android Industrial Panel pc With 2 USB and 2 PortsNegotiableMOQ: 1 Set
-
10.1'' Android Industrial Panel pc With 2 USB and 2 Ports Based on MTK Arm 9NegotiableMOQ: 1 Set
-
IP65 All in One Fanless Industrial Panel pc ComputerUS$ 446 - 446MOQ: 1 Set
-
Atom N2600 1.6 Ghz Industrial Panel Computer With 1 VGAUS$ 446 - 446MOQ: 1 Set
Product details:
Display Feature |
Display Screen |
15″ TFT LED |
Resolution |
1024*768 |
|
Brightness |
350 cd/m2 |
|
Contrast ratio |
400:1 |
|
Touch Screen |
Resistive touch screen |
|
Performance |
Chipset |
Intel® ATOM D525 + ICH8M |
Memory |
2G memory (DDRIII), up to 4GB |
|
Hardware Monitor |
Monitors voltage, TEMP and CPU fan speed |
|
Watchdog Timer |
1 to 255 sec, setup by software |
|
Storage |
HDD:320GB 2.5'HDD CF :(Optional) |
|
Power Feature |
100~240VAC/50~60Hz (Power adapter); 12VDC/5A or 9~36VDC Optional(No power adapter) |
|
Power Dissipation |
18W (standby) 30W (Running MaxPower 100%). |
|
O/S |
Operating System |
Windows XP/ Windows 7/ Linux |

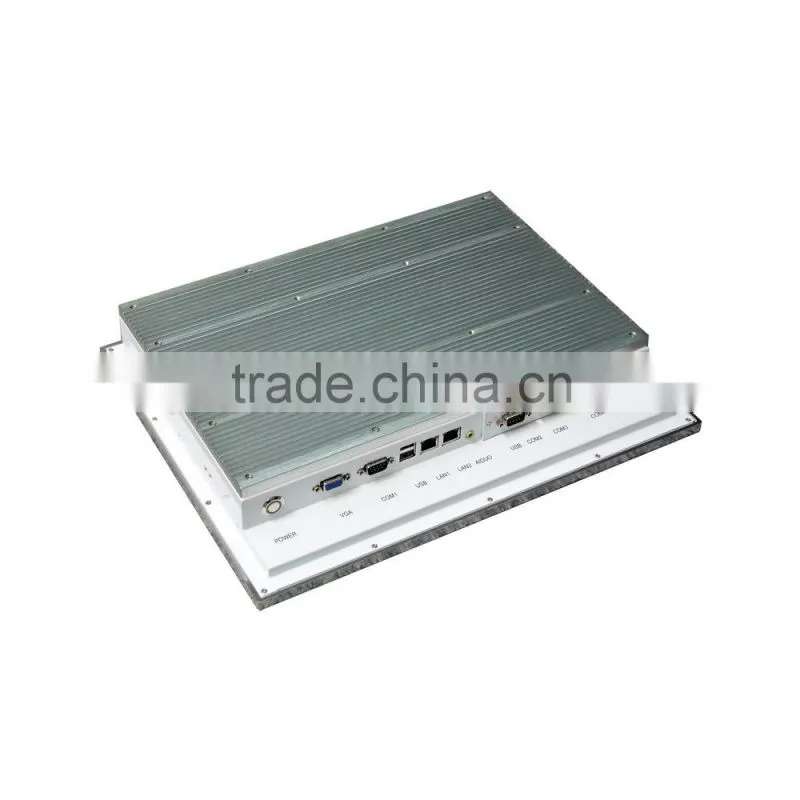

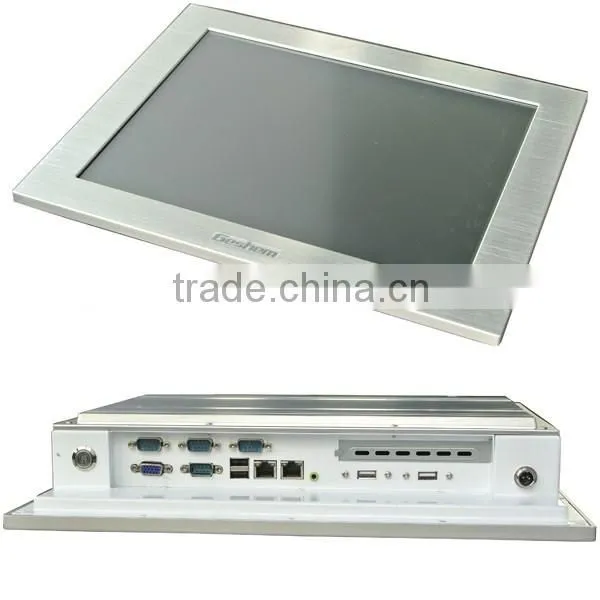

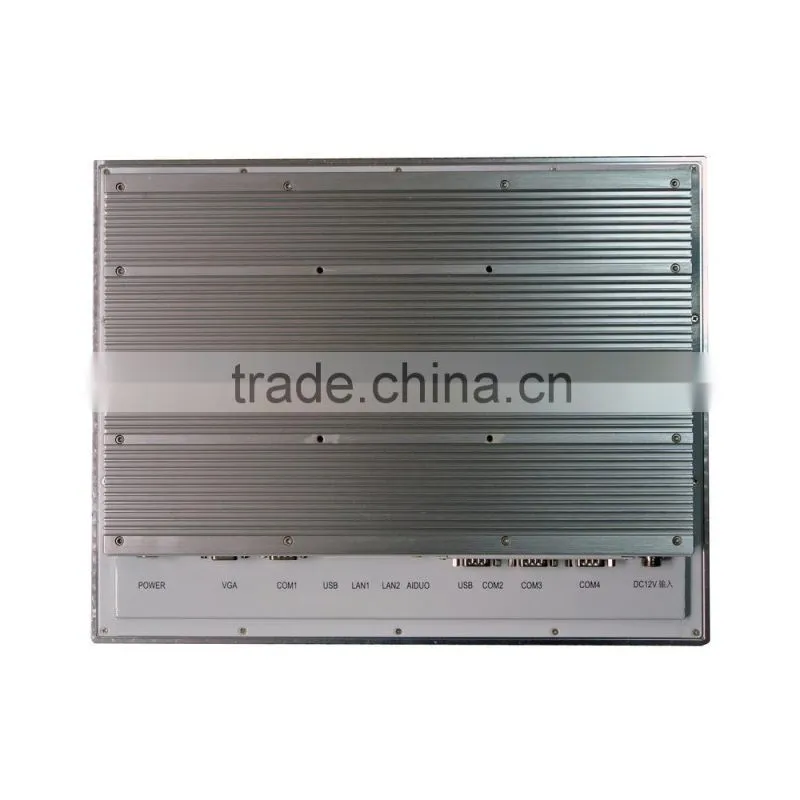

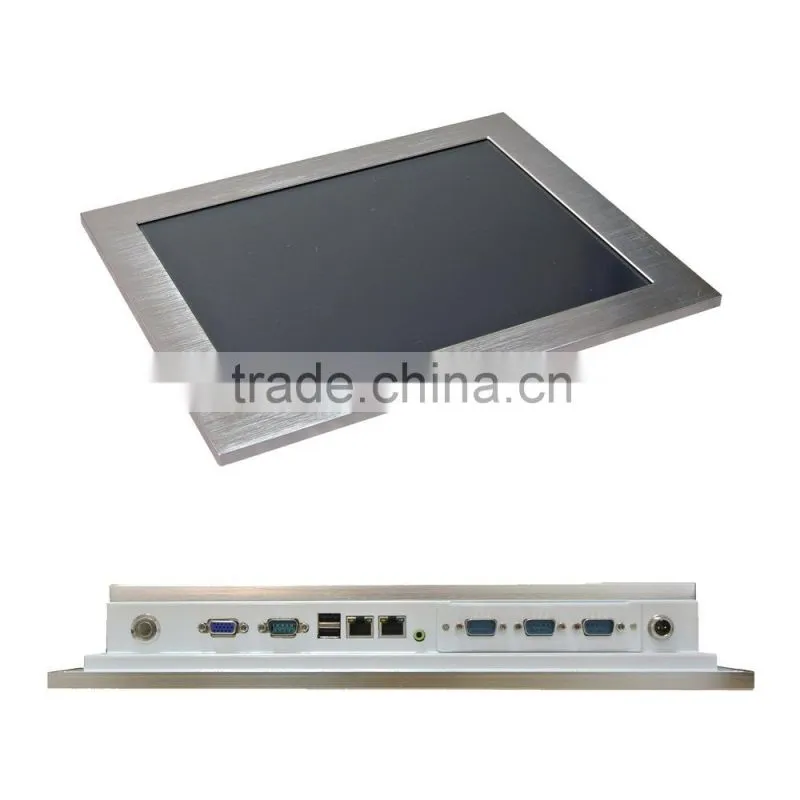

I/O Interface |
USB |
4*USB2.0 Ports |
Serial Port |
4*RS232 (1~2*RS485 Optional) |
|
Ethernet |
2* RTL8111DL 10/100/1000Mbps RJ45 |
|
Audio |
1*Line out |
|
Display |
1*VGA |
|
Expansion |
1*PCI |
|
Environmental |
Anti-vibration |
5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration |
Anti-shock |
10g acceleration, 11ms duration |
|
IP Level |
Front panel IP65(Optional) |
|
Reliability |
MTBF≥50000h; MTTR≤0.5h |
|
Operating TEMP |
-10℃~50℃ (with air flow) |
|
Storage TEMP |
-20℃ ~60℃ |
|
Operating Humidity |
95% @40℃, non-condensing |
|
Mechanical |
Dimensions |
380mm(L)×300mm(W)×70 mm (H) |
Material |
High-strength and elegant Al-alloy panel |
|
Weight |
6.2kg/8.2kg (NET./GROSS.) |
|
Color |
Slivery/Black/White |
