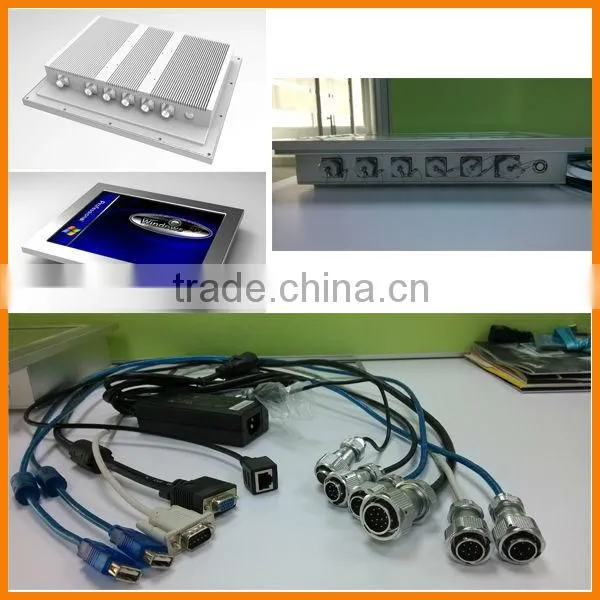

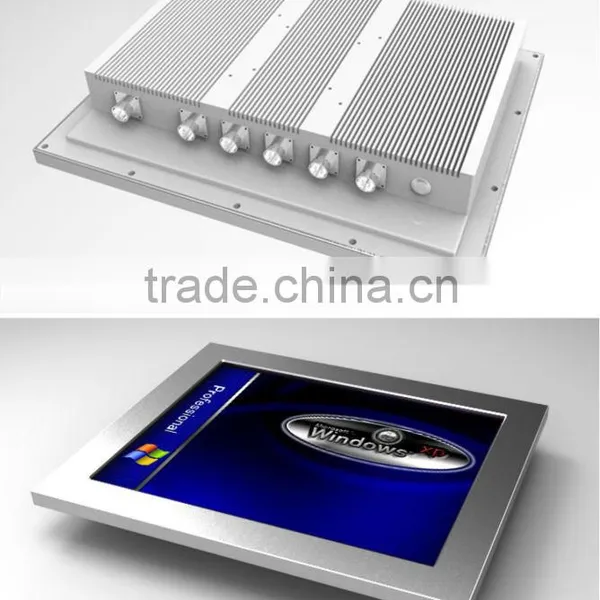

Industrial Touch Panel PC

Specifications

Industrial Touch Panel PC;Complete IP65
onboardN2600; 2G RAM DDRII;
1xUSB2.0 or2xUSB2.0; 2xCOM or 1x COM;
1xVGA;1xLAN

Products View











Specification



Model	PPC-GS1502TI
Display Features	15'TFT; 1024x768; 350cd/m²; 700:1; resistive touch screen
System
Chipset	Intel N2600+NM10
Memory	2G memory (DDRII)
Hardware Monitoring	Monitoring voltage, temperature
Watchdog Timer	1~255 sec./min. timer system reset/interrupt, setup by software
Storage	16G CF or Mini-SATA SSD
I/O Interface	1xUSB 2.0; 2xUSB; 2xCOM or 1xCOM; 1xVGA
Ethernet	1xLAN 10/100/1000M
Mechanical and Enviromental
Dimensions	380x300x60(LxWxH mm)
Weight	5.8kg/7.8kg
IP Level(front panel)	complete IP65
Reliability	MTBF≥5000h; MTTR≤0.5h
Temp. and Humidity	Operating Temp. -10°c~50°c; Storage Temp. -20°c~60°c; Operating Humidity 10%~95%, non-condensing
Power	Power Supply: DC Power Input; Power Comsumption:Max.120W
Operating System	Linux/Windows 7/ Windows XP
Test	Vibration: 5-17Hz/1.0mm amplitude, 17-200Hz/1.5g; Shock: 10g accelebration, 11ms duration; Noise: ≤ 60dB











Installation



1.) Standard Vesa Bracket for Wallmount:

     Vesa 100x100mm or 75x75mm

2.) Side Pothook Aide for Cutout Frame Mount











Packaging

One Set/One Carton

Carton Size : 520x450x200mm

Net Weight :  6kg

Gross Weight: 8.5kg

Inner carton , outer carton and foam packaging are all customized according to products dimension which provide

protection of cargo to great extend during shipment.

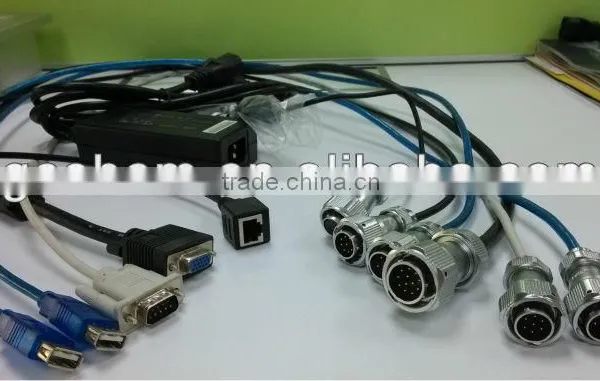

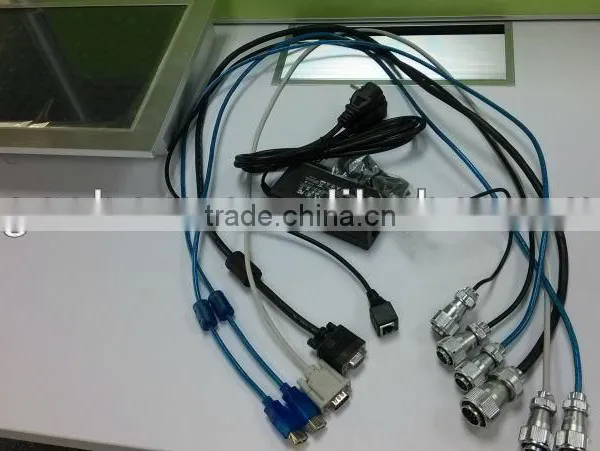

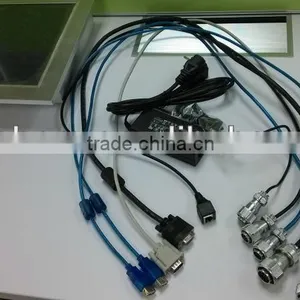

Accessories

 Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval



Warranty

One year limited warranty



Testing Equipment

 Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/

network performance analyis system/oscilloscope)







Certificate

CE / FCC/ Rohs







Advantage

Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts

to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature);

anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen);

sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell);

wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...



Application

Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/

tunneling/vehicle terminal...)and mainly used as central control system.





Testing



Food Processing



Logistics



Manufacturing



Tunneling



Vehicle Terminal





Automation
