Industrial Computer With 19inch Touch Screen

Industrial Computer With 19inch Touch Screen thumbnail-1
Industrial Computer With 19inch Touch Screen photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Panel PC
Brand Name:
Geshemtech
Contact Supplier Request Quote Chat Now
Shenzhen Geshem Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Panel PC
Brand Name Geshemtech
Model Number PPC-GS1901T
Place of Origin Guangdong, China

Specifications

Embedded Computer
19' TFT;touch screen;fanless;
onboard Intel Atom D525 1.8G; 2G memory(Max. to 4G); 4xUSB2.0

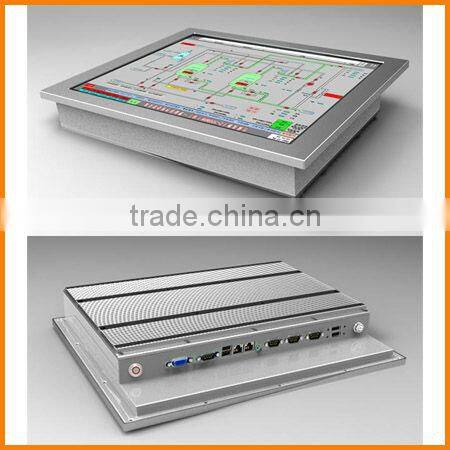

Products View



Industrial Computer with 19inch Touch Screen









Specification



Model PPC-GS1901T
Display Features 19' TFT/support VGA+LVDS; 1024x768; 300cd/m²; 400:1; resistive touch screen
System
Chipset Intel Atom D525 + Intel®ICH8M
Memory 2G memory (DDRIII), up to 4GB
Hardware Monitoring Monitoring voltage, temperature, CPU fan speed and etc.
Watchdog Timer 1~255 sec./min. timer system reset/interrupt, setup by software
Storage 1x320GB 2.5' HDD
Ethernet Chipset 2xRTL8111DL 10/100/1000Mbps/2xRJ45
I/O Interface 4xUSB2.0; 4xCOM; 1xVGA; onboard HD Audio
Mechanical and Enviromental
Dimensions 400x320x60(LxWxH mm)
Weight 6,8kg/7.8kg
IP Level(front panel) IP65(optional)
Reliability MTBF ≥ 5000h; MTTR≤0.5h
Temp. and Humidity Operating Temp.-10°c~50°c; Storage Temp. -20°c~60°c; Operating Humidity 10%~95%, non-condensing
Power Power Supply DC Power Input; Power Comsumption Max.72W
Operating System Linux/Windows 7/Windows XP
Test Vibration: 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration, 11ms duration; Noise:≤60dB

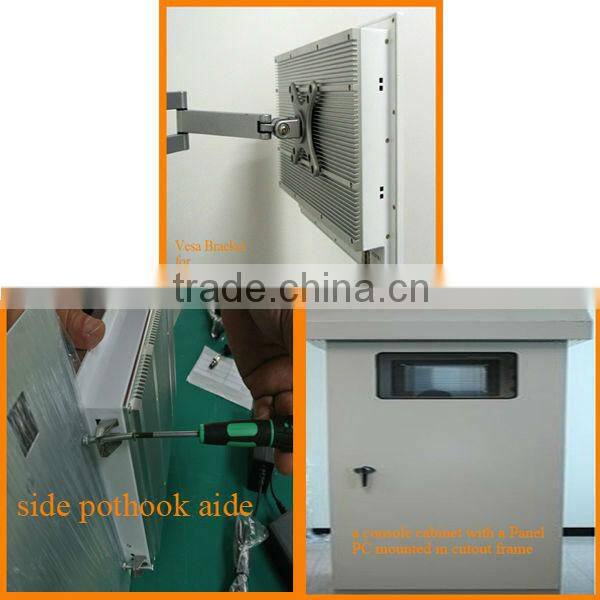

Installation



1.) Standard Vesa Bracket for Wallmount:

     Vesa 100x100mm or 75x75mm

2.) Side Pothook Aide for Cutout Frame Mount





 Industrial Computer with 19inch Touch Screen





Packaging

One Set/One Carton

Carton Size : 480x380x340mm

Net Weight :  7kg

Gross Weight: 8kg

Inner carton , outer carton and foam packaging are all customized according to products dimension which provide

protection of cargo to great extend during shipment.



Accessories

 Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval



Warranty

One year limited warranty

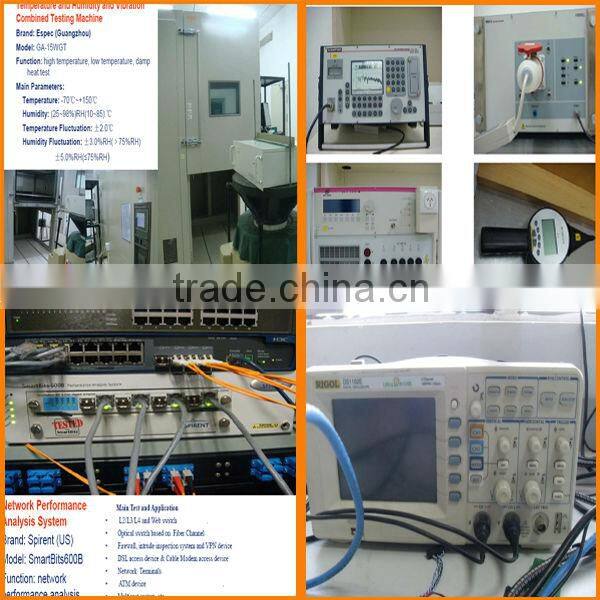

Testing Equipment

 Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/

network performance analyis system/oscilloscope)



Industrial Computer with 19inch Touch Screen

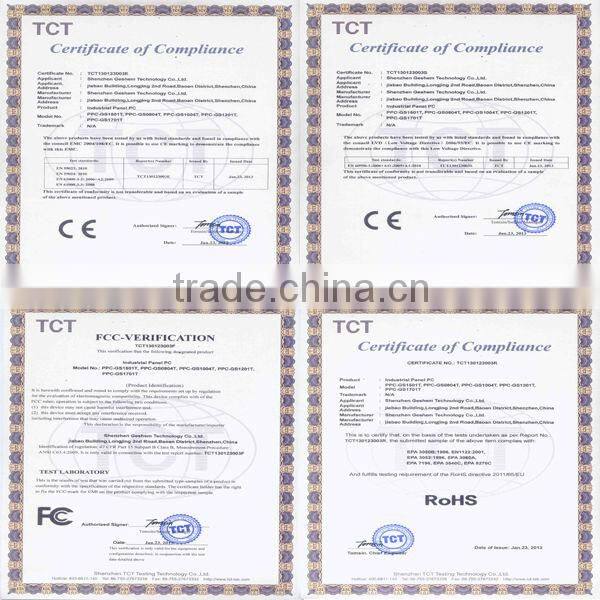

Certificate

CE / FCC/ Rohs



Industrial Computer with 19inch Touch Screen





Advantage

Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts

to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature);

anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen);

sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell);

wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...



Application

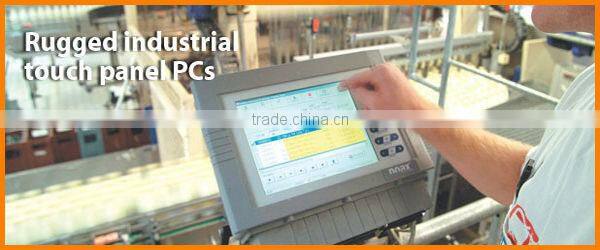

Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/

tunneling/vehicle terminal...)and mainly used as central control system.





Testing

Industrial Computer with 19inch Touch Screen

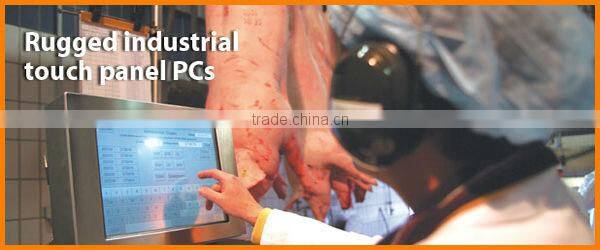

Food Processing

Industrial Computer with 19inch Touch Screen



Logistics

Industrial Computer with 19inch Touch Screen

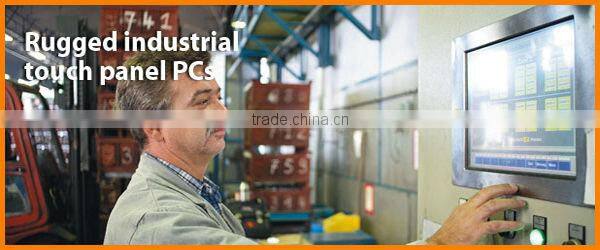

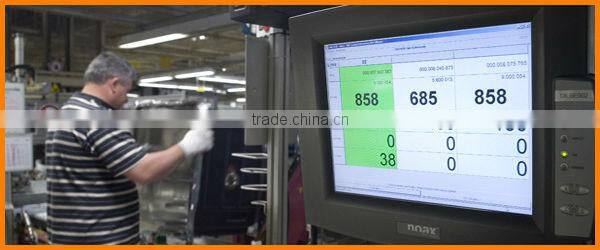

Manufacturing

Industrial Computer with 19inch Touch Screen

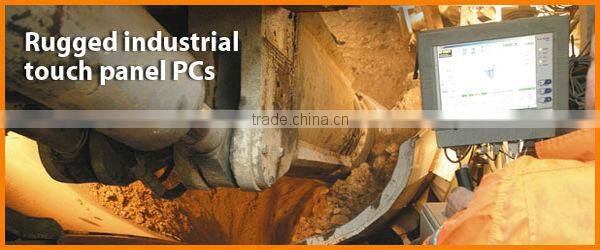

Tunneling

Industrial Computer with 19inch Touch Screen

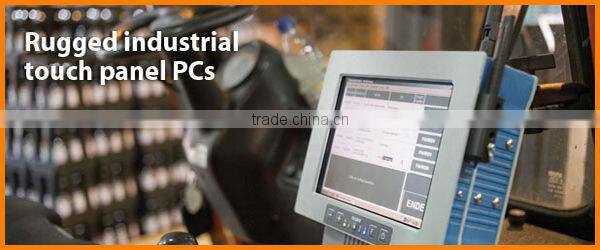

Vehicle Terminal

Industrial Computer with 19inch Touch Screen

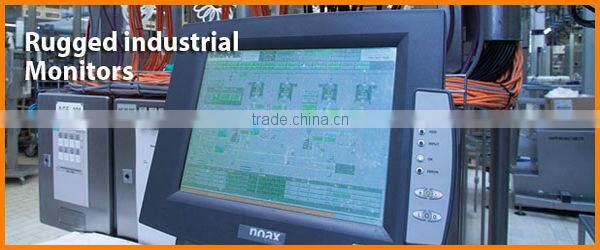

Automation

Industrial Computer with 19inch Touch Screen
