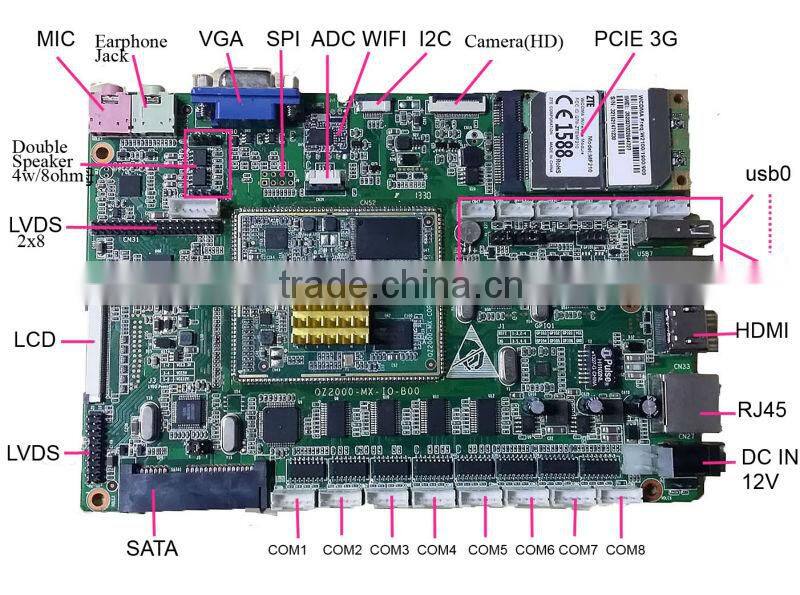

Android Board

Name: Android Board
Brand: Geshem
SKU: 101473317
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, advertising machine,

Chipset Manufacturer:

Other, ARM Cortex A9

Shenzhen Geshem Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, advertising machine,

Chipset Manufacturer Other, ARM Cortex A9

Socket Type Other, Onboard

Form Factor Other, 176x120x18mm ARM

Memory Type DDR3

Graphics Card Type Other, Mali-400@300M GPU

Hard Drive Interface SATA

Brand Name Geshem

Model Number A-GS0910

Place of Origin Guangdong, China

Specifications

ARM Cortex A9 Dual Core 1.5G
Mali-400@300M GPU
DDRIII 1G MAX
NAND 4G/8G(optional)
Android 4.2

A-GS0910

Features

Specifications

Type	A-GS0910
CPU	ARM Cortex A9 Dual Core 1.5G
Memory	Onboard DDRIII 1GB
Graphics	Mali-400@300M GPU
LAN	1*RJ-45 10/100 Base-T (lightning protection )
Storage	1*SATA 2.0 Support Micro SD Max. 32G NAND 4G/8G
Expansion	1SIM card slot(WCDMA/EVDO) 1MINI PCI-E
WIFI	Onboard Module, 802.11b/g/n
Connectors	1VGA(640480)SVGA(800600)XGA(1024768)SXGA(12801024) 1HDMI(1920x1080) 1RJ-45 10/100Base-T 7USB 2.0 Line Out/MIC In(build-in MIC optional)
I/O Controller	1LVDS,210Pin,18bits,single channel 1LVDS,218Pin,24bits,two-channel 1Amplifier, 13Pin, 4W,two-channel 7RS232 COM, 15Pin 7*USB 2.0
Others	Supports Android Serial Port, GPIO programming interface Supports programming interface Watchdog RTC , hardware encryption +12V 2~5A Power Supply
O.S.	Android4.2/Linux (customization optional)
Operating	0~60C, 5%~95%(non-condensing)
Size	17612018mm
Power Consumption	≤8W(normal or full power)
