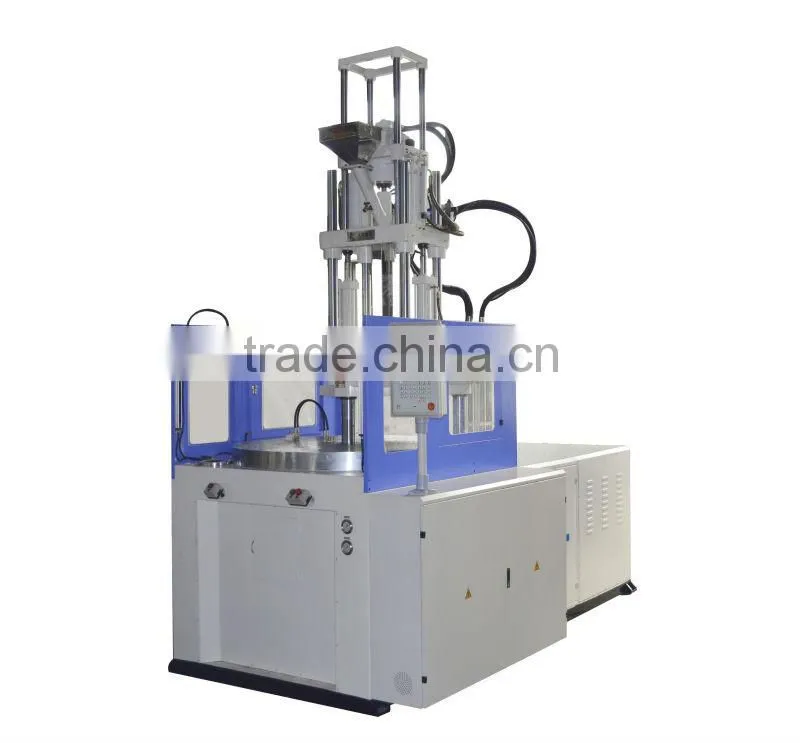

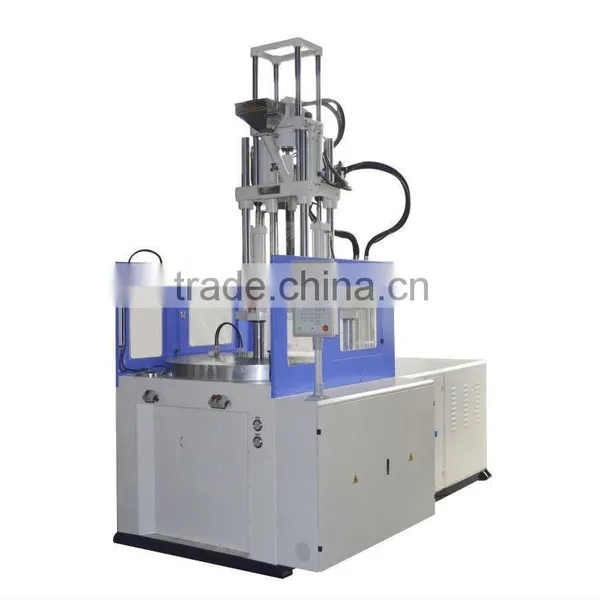

TY-2100.2R.J Servo Turntable Vertical Injection Molding Machine

Name: TY-2100.2R.J Servo Turntable Vertical Injection Molding Machine
Brand: TAYU
SKU: 101471645
Availability: InStock

TY-2100.2R.J Servo Turntable Vertical Injection Molding Machine thumbnail-1

TY-2100.2R.J Servo Turntable Vertical Injection Molding Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Other

Style:

Vertical

Contact Supplier Request Quote Chat Now

Hangzhou Tayu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shang or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other

Style Vertical

Brand Name TAYU

Model Number TY-2100.2R.J

Place of Origin Zhejiang, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 509/17.9 605/21.3

Injection Rate 180/215

Clamping Force 210

The following materials are suitable for our products:GPPS, HIPS, SAN, ABS,LDPE, HDPE,PP, PPO, PA6, PA66, ACEAL COPOLYMER, CAB, PET, PBT,PC, PMMA, hard PVC, soft PVC,PU, EVA, PSF, Bakelite, BMC.

Vertical-type four-column mould clamping. Vertical-type injection, mould-clamping force of 12 tons to 250 tons, ejection volume of 35g to 1000g, Chinese/English electrical control, screen display, effective, fast and stable hydraulic system, reasonable mechanical structures, convenient operation, suitable for the production of second compacting products such as electric and electronic products.

Model			Units	TY-2100.2R.J
	Injection Unit	Screw Diameter	mm	55	60
		Injection Pressure	Kg/cm²	1749	1470
		Theoretical Shot volume	cm³	570	678
		(P.S) Max. Shot Weight	g/Oz	509/17.9	605/21.3
		Injection Rate	cm³/sec	180	215
		Temperature Control	ZONE	4
		Material Hopper Capacity	L	60
	Clamping Unit	Clamping Force	T	120
		Opening Force	T	20
		Min Mold Height	mm	350
		Opening Stroke	mm	400
		Max. Open Daylight	mm	750
		Mold dimensions	mm	-
		Nozzle Center Height	mm
		Ejector Force	T	6.2
		Ejector stroke	mm	75
	Hydraulic Unit	Max. Hydraulic Pressure	Kg/cm²	140
		Pump Output	L	535
		Pump Motor Power	KW	21.5
		Barrel Heating Power	KW	12.5
		Total Wattage	KW	34
	Others	Slide table Stroke	mm	950
		Round Set Diameter	mm	-
		Machine Weight	T	9.8	10
		Machine Dimensions(L x W x H)	m	4.3x1.3x4.7	3.6X2.0X4.7
