Mini Industrial Box PC

Specifications

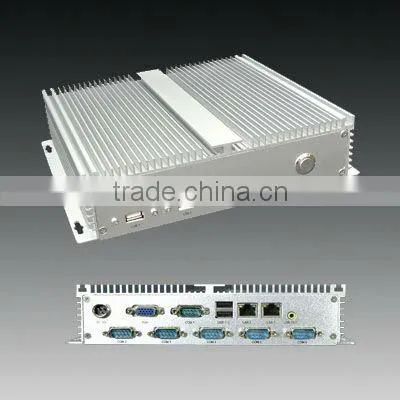

Mini Industrial Box PC
WIFI(Optional)
2xRJ45
4xUSB
6xCOM

Mini Industrial Box PC



Products View









Specification



Model	PC-GS525-10
CPU	Intel Atom D525 1.8GHz Dual Core
Chipset	Intel D525 + ICH8
Memory	Max. 4G
Graphics	Intel GM3150
Audio	Integrated AL C662 Audio
LAN	2xRTL 8111D, 10/100/1000M
Storage	2.5'HDD 320G; CF card (optional)
BIOS	AMI BIOS 4/8 Mbit flash
Ports	1xVGA; 2xRJ45; 4xUSB; 6xCOM; WIFI(optional); 12V DC Power Input
Operating System	Supporting Windowx XP/7, Linux, Win CE
Operating Temperature	0°c~50°c
Size	215x200x55mm
Material	High strength aluminum alloy chassis
Color	Silver
Stucture	Fanless







Installation



Desktop/Settop/Wallmount/Dinmount







Packaging

One Set/One Carton

Carton Size : 340x260x120mm

Net Weight :  2.6kg

Gross Weight: 3.0kg

Carton and foam packaging are all customized according to products dimension which provide

protection of cargo to great extend during shipment.



Accessories

 Driver Disk / Lockable Adapter Output / Power Cord / Internal Inspection Approval



Warranty

One year limited warranty



Testing Equipment

 Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/

network performance analyis system/oscilloscope)











Advantage

-Alluminium alloy chassis with radiation fin protects system from erosion  while providing high heat dissipation;



-Unique heat tower , made from material with low thermal resistance value,  efficiently conduct heat arising from

 CPU to chassis which is turned to a  big heatsink by this thermal design;



-Fanless design, no CPU fan/system fan/power fan inside, greatly reduce  maintenance workload, also make it

 possbile to work in dust-rich enviroment;



-Onboard CPU ensure protection against shock and vibration(complying IEC 60068-2-27/64);



-Reliability MTBF≥50000H;MTTR≤0.5H



-Compact structure and small size,suitable for installation in limited space.



Application

Industrial Box PC is widely used in various system(automotive electronics/railsway traffic/vending machine/kiosk...)and mainly used as central control unit.







Application Demo(automotive)









Application Demo(AFC system)







Geshem Brief







Certificate

CE / FCC/ Rohs

....
