Fanless Embedded Industrial Mini Computer With 1RS232 and 6USB

Name: Fanless Embedded Industrial Mini Computer With 1RS232 and 6USB
Brand: Geshemtech
SKU: 101471629
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Type:

Embedded Computer

Brand Name:

Geshemtech

Shenzhen Geshem Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Embedded Computer

Brand Name Geshemtech

Model Number PC-GS7041B

Place of Origin Guangdong, China

Product Description

Features:

l Intel ®Celeron 1037U 1.8GHz Processor (Optional I3 3227U OR I5 3337U OR I7 3517U)

l Fanless design, suitable for harsh industrial environment applications

l 2GB memory (DDRIII), up to 4GB memory

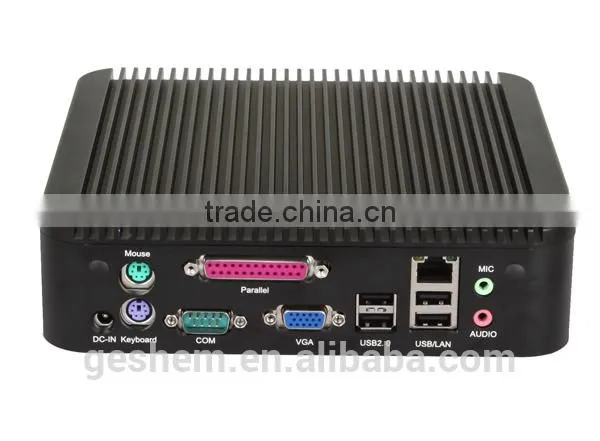

l 6*USB/1*COM/1*VGA/1*LPT

l 1*RJ45 Gigabit LAN

l 1*Audio(Line-out,MIC-in)

l 1*WIFI(Optional)

l Color: Slivery/Black

Specifications:

Performance	Chipset	Intel ®Celeron 1037U 1.8GHz (Optional I3/I5 CPU/I7 CPU)
	Memory	2G Memory (DDRIII), Up to 4GB
	Hardware Monitor	Monitors Voltage, TEMP and CPU Fan Speed
	Watchdog Timer	1 to 255 sec, setup by software
	Storage	HDD:16GB SSD Optional: 2.5inch HDD
	Power Supply	12VDC/5A; (No power adapter)
O/S	Operating System	Windows XP/ Windows 7/ Linux
I/O Interface	USB	6 *USB 2.0 Ports
	Serial Port	1*RS232
	Ethernet	1* RTL8111DL 10/100/1000Mbps RJ45
	Audio	1*Line out/Mic-in
	Display	1*VGA
Environmental	Anti-vibration	5-19Hz/1.0mm amplitude;19-200Hz/1.0g acceleration;
	Anti-shock	10g acceleration, 11ms duration.
	Reliability	MTBF≥50000h; MTTR≤0.5h
	Operating Temperature	-10℃~50℃ (with air flow)
	Storage Temperature	-20℃ ~60℃
	Operating Humidity	95% @40℃, non-condensing
Mechanical	Dimensions	200mm (L) 200 mm (W) 52 mm (H)
	Material	High-strength and elegant Al-alloy panel
	Weight	1.7kg/2.1kg(NET./GROSS.)
	Color	Slivery/Black
