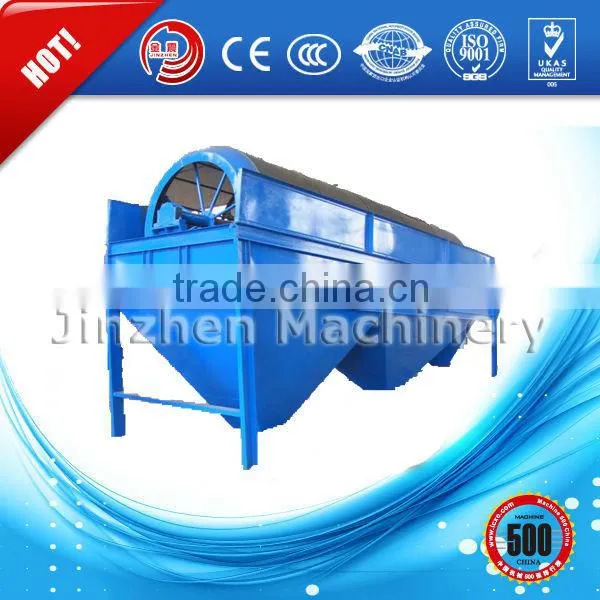

Single layer Soil Trommel Screen Rotating Drum Sieve

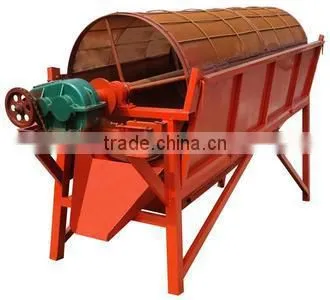

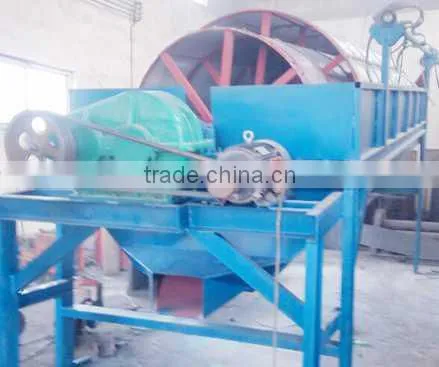

Trommel screen mainly made up by follow parts: motor, reduction gears, rolling device, rack, seal
cover, feed inlet and discharge hole.

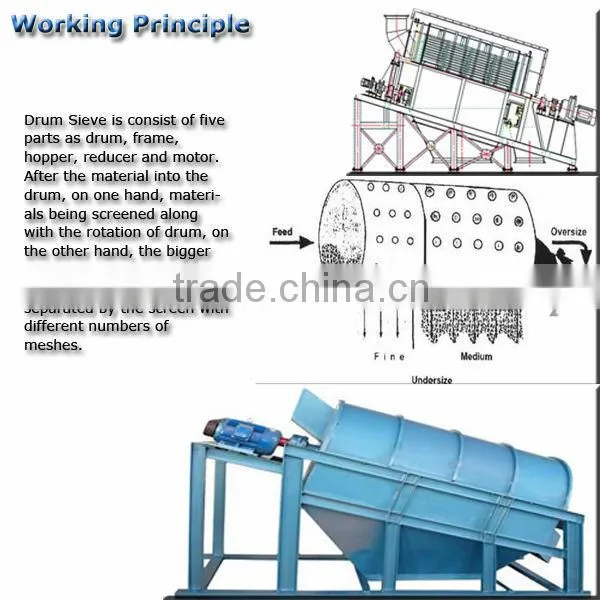

1. Working principle - Trommel Screen
Roller device installed slantwise on the rack.Motor by the reducer with roller device
through a shaft coupling, drive roller device around its axis of rotation.When
the materials enter the cylinder device, the material on surface of screen start flipping and rolling due to the tilt and turn of drum unit.Then the qualified materials expel from discharge hole at bottom of the back end, unqualified
material expel from discharge hole at the end of drum.The trammel screen
can avoid clogging efficiently due to the material kept turning and rolling in the cylindrical
screen.
2. Main feature - Trommel Screen
1. Small incline angle, not easy to jam;
2. Smooth operation, low noise;
3. Screen replaceable for different mesh sizes;
4. Simple structure, convenient maintenance;
5. Sieve can be closed, dust-proof;
6. High reliable, less investment;
7. Using special mesh, high screening efficiency, long service life;

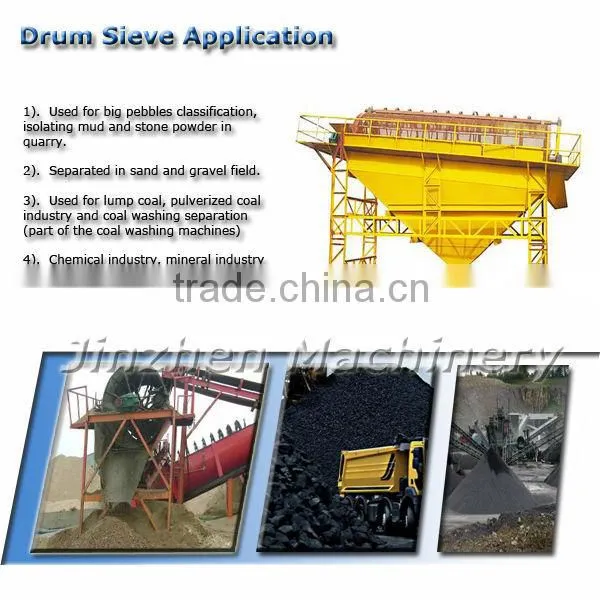

3. Application - Trommel Screen
4. Technical Parameter- Trommel Screen
Model |
Length |
Sieve segment |
Hole size |
Degree |
Max particle size |
Rotating speed |
Capacity |
Power |
Dimension |
(m) |
|
(mm) |
|
(mm) |
(rpm) |
(m3/h) |
(kw) |
(mm) |
|
YTS600 |
2-4 |
1-3 |
5-35 |
7 |
35 |
20 |
10 |
2.2-3 |
5400*1150*1200 |
YTS800 |
2-4 |
1-3 |
5-40 |
7 |
45 |
18 |
14 |
2.2-5.5 |
5600*1300*1500 |
YTS1000 |
2-6 |
1-4 |
5-45 |
7 |
60 |
16 |
16 |
3-7.5 |
7400*1400*2240 |
YTS1200 |
2-8 |
1-4 |
5-50 |
7 |
70 |
15 |
20 |
4-11 |
9480*1580-3400 |
YTS1500 |
2-8 |
1-4 |
5-55 |
7 |
80 |
12 |
32 |
4-15 |
9700*1860*3700 |
YTS2000 |
2-9 |
1-4 |
5-60 |
7 |
90 |
8 |
45 |
5.5-18.5 |
11000*2400*4500 |
The technical parameter is for your reference, we also accept customize as customer’s requirements! | |||||||||
5. Other choice - Trommel Screen
Package - Trommel Screen
1. Standard export package;
2. Fumigation-free wooden case;
3. According to customer's requirements.
Delivery - Trommel Screen
1. Generally in stock about 3-7 working days after receiving your payment;
2. Producing time for customize product is 10-20 working days.
Trade Terms for- Trommel Screen
1. Trade Terms: FOB;
2. Payment Terms: T/T, L/C, Western Union, Paypal;
3. Payment: 100%T/T, or 40% deposit in advance, 60% balance before delivery, or negotiation;
Our Service for- Trommel Screen
1. 12 months warranty;
2. 24 hours online or mobile service;
3. Customize and OEM is available;
4. Long life maintenance service for products.
Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd Located in Weibin District Industrial Park.
With 15 years experience in manufacturing machinery equipment,
Main products: rotary vibrate screen, test sieve, linear vibrate screen, trommel screen, screw
conveyors, belt conveyors, elevators, related accessories and etc.
Our products have sold all over the world, such as India, Holland, Malaysia, Russia, Japan, Korea,
America, Australia and etc.
1. How to get a suitable Trommel Screen ?
(1) What is the raw material ?
(2)The capacity you require ?? (L OR KG per hour)
(3) How many layers ?? the mesh size for each layer ??
(4) What's steel material ??? Stainless steel or contact part stainless steel or carbon steel ??
(5) Power condition: 380V or 415V ??? 50HZ or 60 HZ ???
(6) Other special requirement. Example: Heat resistant, anti-static, etc.
2. What is the delivery time?
Some machine has in stock, general machine in 7 days as usually.
3. What is warranty time?
Life-long maintenance, it is free in one year.
4. Where is you steel from?
All the steel come from AN Gang which is one of the best steel.
