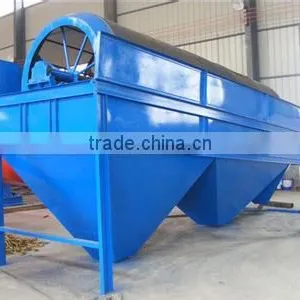

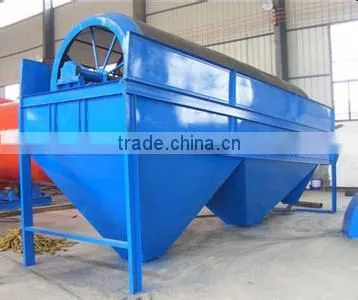

Latest Technology High Capacity Trommel Chemical Process Screen Device
Introduction- Trommel Screen

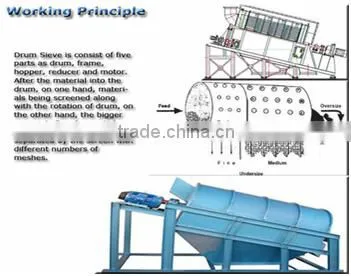

Trommel Screen is our main prooduct,used for siving or grading various material.On the one
hand,materials being screened along with the rotation of drum,on the other hand,the bigger
materials flow forward along the direction of slope and be separated by the screen with
different number of meshes.The trammel screen can avoid clogging efficiently due to
the material kept turning and rolling in the cylindrical screen.
Details- Trommel Screen

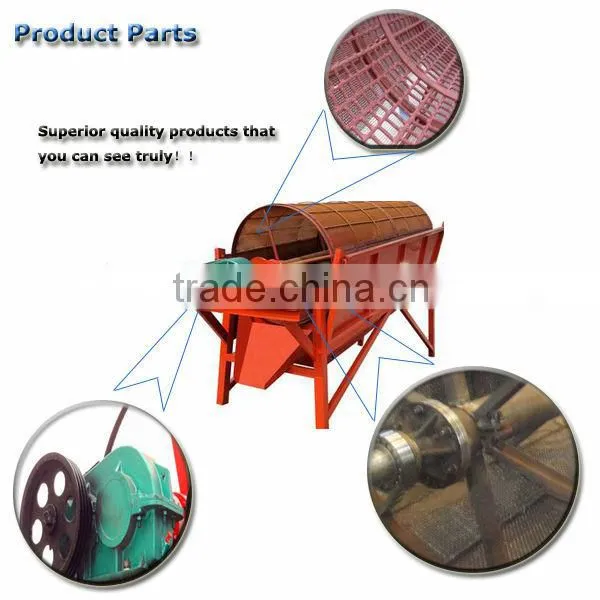

The Trommel Screen mainly consist of motor,reducer,drum units,racks,ring of clamp,
discharge hole,feed port,polyproplyene board,screen body etc.inclination of drum
equipment,motor is connected by reducer and drum unit,the drive drum rotate
around its axis.
Feature- Trommel Screen
1. Small incline angle, not easy to jam;
2. Smooth operation, low noise;
3. Screen replaceable for different mesh sizes;
4. Simple structure, convenient maintenance;
5.Powerful motor with low power consumption;
6. Largest processing capacity in the industry;
7. Using special mesh, high screening efficiency, long service life;
Technical Parameter- Trommel Screen
Model |
Length |
Sieve segment |
Hole size |
Degree |
Max particle size |
Rotating speed |
Capacity |
Power |
Dimension |
(m) |
|
(mm) |
|
(mm) |
(rpm) |
(m3/h) |
(kw) |
(mm) |
|
YTS600 |
2-4 |
1-3 |
5-35 |
7 |
35 |
20 |
10 |
2.2-3 |
5400*1150*1200 |
YTS800 |
2-4 |
1-3 |
5-40 |
7 |
45 |
18 |
14 |
2.2-5.5 |
5600*1300*1500 |
YTS1000 |
2-6 |
1-4 |
5-45 |
7 |
60 |
16 |
16 |
3-7.5 |
7400*1400*2240 |
YTS1200 |
2-8 |
1-4 |
5-50 |
7 |
70 |
15 |
20 |
4-11 |
9480*1580-3400 |
YTS1500 |
2-8 |
1-4 |
5-55 |
7 |
80 |
12 |
32 |
4-15 |
9700*1860*3700 |
YTS2000 |
2-9 |
1-4 |
5-60 |
7 |
90 |
8 |
45 |
5.5-18.5 |
11000*2400*4500 |
The technical parameter is for your reference, we also accept customize as customer’s requirements! | |||||||||

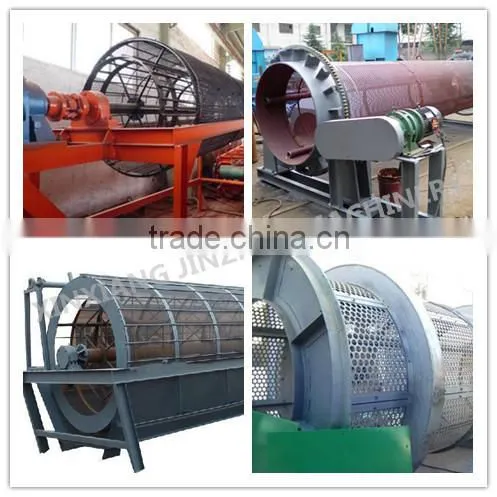

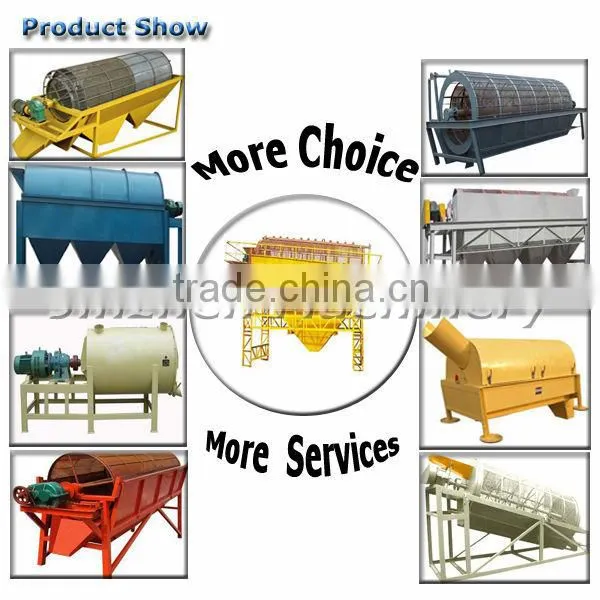

More choice- Trommel Screen
Our service- Trommel Screen
1. 12 months warranty;
2. 24 hours online or mobile service;
3. Customize and OEM is available;
4. Long life maintenance service for products.
Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd Located in Weibin District Industrial Park. With 15 years experience in manufacturing machinery equipment, Main products: rotary vibrate screen, test sieve, linear vibrate screen, trommel screen,screw conveyors,belt conveyors, elevators, related accessories and etc.Our products have sold all over the world, such as India, Holland, Malaysia, Russia, Japan, Korea,America, Australia and etc.
If you are interested in our products, please feel free to contact me!
