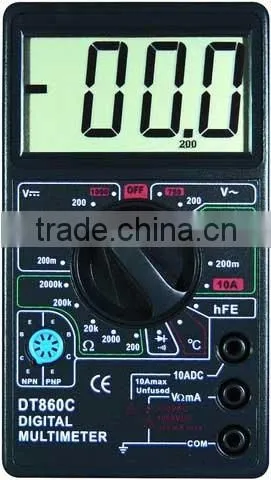

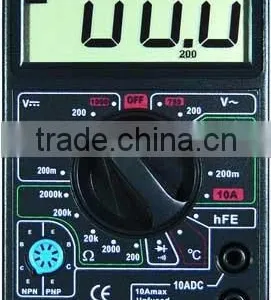

DT860C Digital multimeter
- 0 per Month
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Model Number: | DT860C | Measuring Current Range: | DCA:2000A-10A |
Measuring Voltage Range: | DCV:200mV-1000V,ACV:200V-750V | Measuring Resistance Range: | OHM:200-2000K | Operating Temperature: | -20-1370 |
Dimensions: | 126*70*28mm |
Packaging Details
Standard export packing or as customers' requests
Product Description
Specifications
DT860C Digital multimeterDCV:200mV-1000V,ACV:200V-750V,DCA:2000uA-10A,OHM:200-2000K
Max Display: 1999
With Buzzer,9V 6F22...
DT860C Digital multimeter
Specification
1. Technical data
DCV:200mV-1000V ±(0.5% + 2)
ACV:200V-750V ±(1.2% + 10)
DCA:2000μA-10A ±(1% + 2)
OHM:200Ω-2000KΩ ±(0.8% + 2)
Temperature:-20-1370 ±(1% + 2)
hFE:yes
Continuity Buzzer:yes
Diode Test:yes
Power Supply:9V 6F22
Maximum Display:1999
2. Packing details
1) Product Size:126*70*28mm
2) Product Net Weight.150g
3) Packing:gift box
Quantity:100pcs
Dimension:51.2*28.5*27.3cm
G.W.:19.0KGS
N.W.:18.0KGS
4) Packing:double blister
Quantity:60pcs
Dimension:55.5*31*34mm
G.W.:12.0KGS
N.W.:10.5KGS
5) Packing:Blister card
Quantity:60pcs
Dimension:47*30.3*29.5mm
G.W.:9.5KGS
N.W.:8.5KGS
......Many other products or more detailed products information, welcome to contact us.
