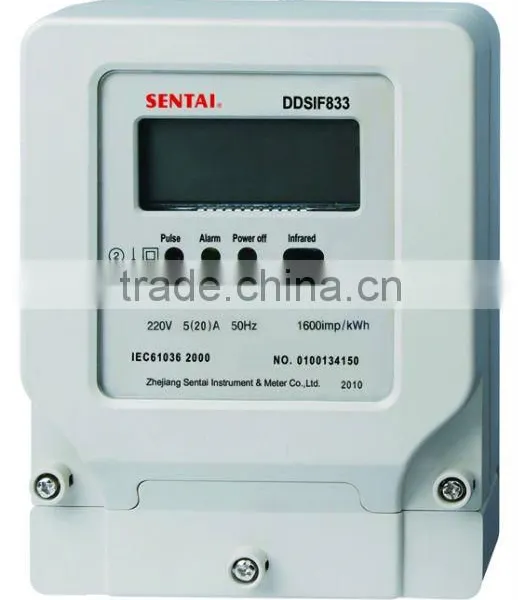

Help CenterDDSIF833 ElectronicCarrier Multi-rate Energy Meter
Related Products
-
Single Phase Multi-rate Energy Meter DDSF833NegotiableMOQ: 1 Piece -
DTS833 Three Phase Electric Energy MeterNegotiableMOQ: 1 Piece
-
Three Phase Prepayment Energy Meter DTSY833NegotiableMOQ: 1 Piece
-
Three Phase Multi-rate Energy Meter DTSF833NegotiableMOQ: 1 Piece
-
DDS351 Single-phase Electronic Socket Installed Energy MeterNegotiableMOQ: 500 Pieces
Specifications
It has function of carrier communications, relay control, withADE7755 chip, high integration.high measurement accuracy, etc.
Functions and features
1) Measurement function: with ADE7755, measurement of positive and negative power of active, protect electricity from stealing.
2) It has the function of peak period(the second rate), smooth period(the third rate), trough period(the forth rate).
3) According to different rate period to set: peak period, smooth period, trough period, the total power consumption is the three rate power consumption.
4) The meter data freezing day can be any one from 1 to 28 within one month, the first day zero time of ecery month will be auto-set by the system for the freezing date.
5) The period is changed by the inner clock, the date can be auto-changed by the clock with back-up battery;
6) Electricity carrier communication function: meter parameter setting and reading.
7) May control of meter relay.
8) Communication rate: synchronous communication, 500bps.
9) Communication distance: 500m(two connections between each).
10) 4S carrier relay function, expand communication rule.
11) With the function of remote power-off.
12) Display: LCD, Option of RS485.
Technical parameters
|
Rated Rated Frequency Accuracy Carrier Power Consumption Current(A) Voltage(V) (Hz) Communication |
|
5(20) 15 series spresd Static state is 5(30) 220(240) 50 or 60 Class1 or calss2 specturm. the less than 0.5W, 10(40) center frequency the carrier launch 15(60) 120K is less than 3W |
Outer and mount dimension
Wiring diagram
