Fisher® Baumanm 83000
Product Description
Sanitary valves are designed to meet the stringent demands of today’s state-of-the-art Life Science facilities. Polished, stainless steel body and trim components ensure efficient cleaning and sanitizing giving you confidence that your processing environment produces the highest purity.

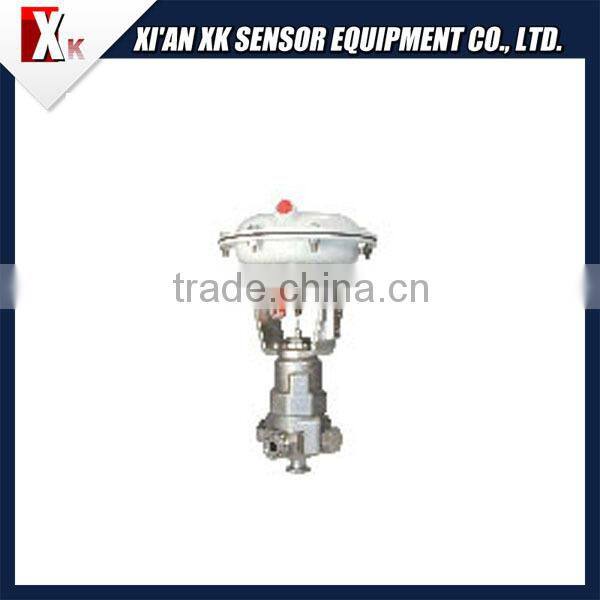

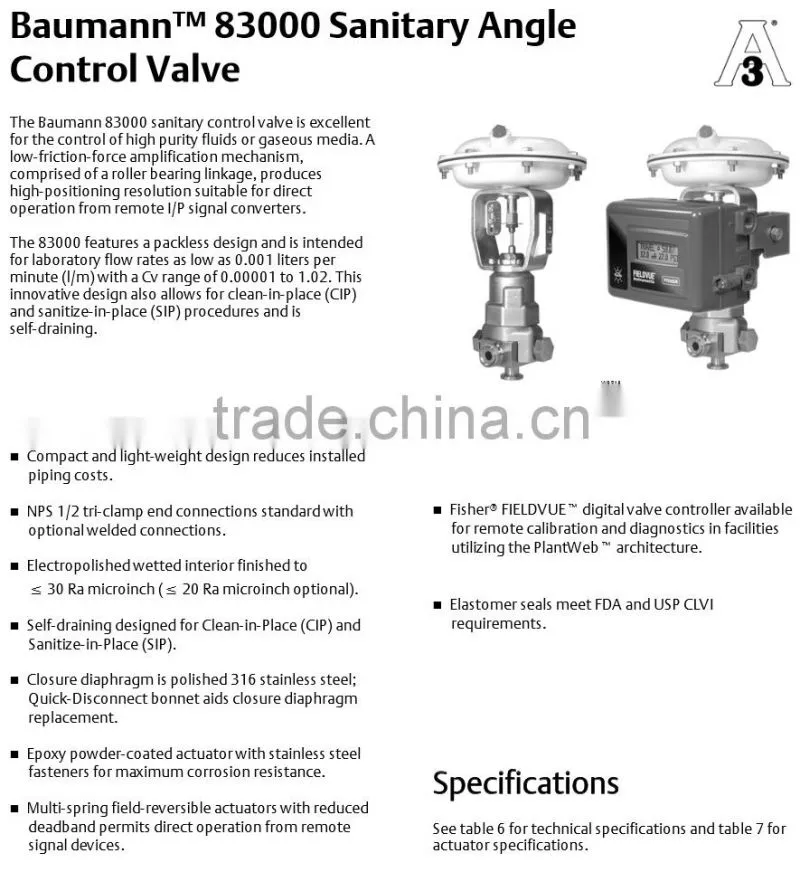

Baumann™ Packless micro-flow sanitary control valve.
- Size: NPS 1/2
- Connections: Tri-Clamp or optional welding ends
- Body Material: 316L SS
- Valve Body Rating: 275 psig CWP
- Trim Material: Polished 316 SS, or N10276 Nickel Alloy
- Trim Characteristic: Modified Equal %
- Seat Leakage: ANSI/FCI 70-2 Class IV
- Cv Ratings: 0.01 to 0.70
- Bonnet Type: Standard bolted
- Packing Material: Packless
- Compact and light-weight design reduces installed piping costs.
- NPS 1/2 tri-clamp end connections standard with optional welded connections.
- Electropolished wetted interior finished to ≤ 30 Ra microinch (≤ 20 Ra microinch optional).
- Self-draining designed for Clean-in-Place (CIP) and Sanitize-in-Place (SIP).
- Closure diaphragm is polished 316 stainless steel; Quick-Disconnect bonnet aids closure diaphragm replacement.
- Epoxy powder-coated actuator with stainless steel fasteners for maximum corrosion resistance.
- Multi-spring field-reversible actuators with reduced deadband permits direct operation from remote signal devices.
- Fisher® FIELDVUETM digital valve controller available for remote calibration and diagnostics in facilities utilizing the PlantWebTM architecture.
- Elastomer seals meet FDA and USP CLVI requirements.
