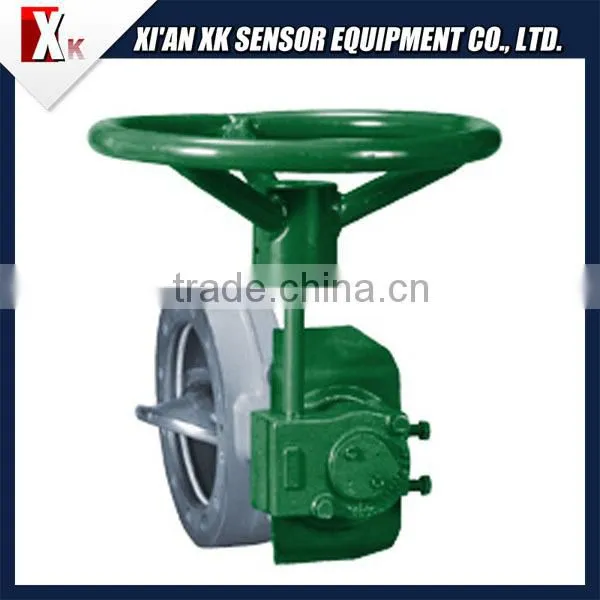

Fisher® M Series handwheel gear actuators
Fisher® manual handwheel actuators are used in applications that require a throttling type of control valve that can be manually operated and set. Capable of giving precise manual throttling control, these actuators can be used on nearly all standard globe-style or angle-style valve body assemblies. A travel indicator on the actuator yoke can provide a visual indication of valve plug position.
Fisher® M Series handwheel gear actuators are totally enclosed, weatherproof, worm gear actuators for reliable manual operation with Fisher A11, A31A and A41 High Performance Butterfly Valves. The M actuator consists of a body housing, cover, worm gear, input shaft, and handwheel. The housing is grease packed.
- Long Service Life—Rugged construction provides stability and corrosion resistance. The unit is totally enclosed for weatherproof operation.
- Accurate Valve Disc Positioning—Two adjustable stops are located in the housing for correct adjustment of disc position. The actuator is inherently self-locking, unless subjected to high vibration.
- Overtravel Capability—Provides for five degrees of overtravel in both directions for precise positioning of the valve disc.
