Fisher® Baumanm 89000
Product Description
Sanitary valves are designed to meet the stringent demands of today’s state-of-the-art Life Science facilities. Polished, stainless steel body and trim components ensure efficient cleaning and sanitizing giving you confidence that your processing environment produces the highest purity.

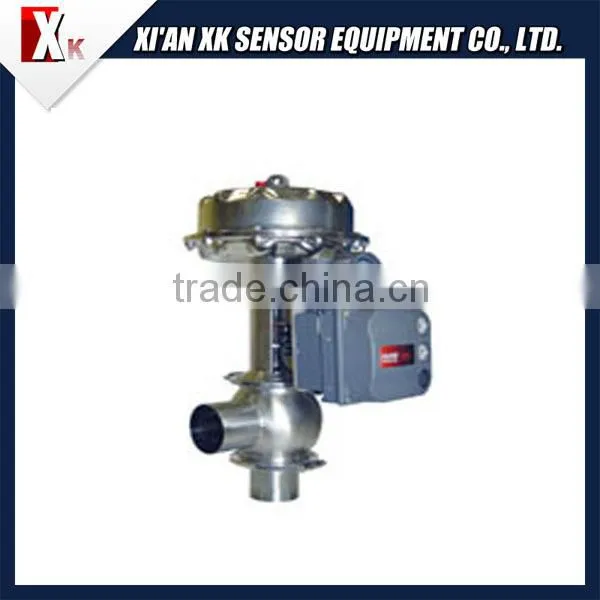

Baumann™ 89000 sanitary control valve with high lift metal plug suitable for the Life Science and Food & Beverage Industries
- Size: NPS 1/2 thru 6
- Connections: Tri-Clamp standard (Weld Ends, ISO Clamps and others available)
- Body Material: 316L SS
- Valve Body Rating: 250 psi
- Trim Material: 316L SS (Class IV)
- Trim Characteristic: Modified Equal Percentage
- Seat Leakage: ANSI/FCI 70-2, Class IV (Metal Seat)
- Cv Ratings: 0.20 to 442
- Bonnet Type: Tri-Clamp
- Packing Material: EPDM O-Ring Standard
- Temperature Range:
- Fluids & Gases (Non-Steam): 275oF
- Steam: 320oF
- Unique flow pattern allows for self draining in both vertical and horizontal pipelines
- Streamlined low shear flow contours make it ideal for sensitive biomedia
- Flow area between tubing O.D. and body seating is suitable for fine particulant media
- Fool proof bolting method assists with ease of body disassembly and reassembly
- Epoxy powder coated actuator with stainless steel yoke and fasteners for maximum corrosion resistance
- FIELDVUE™Digital Valve Controller available for remote calibration and diagnostics in facilities utilizing the PlantWeb™architecture.
