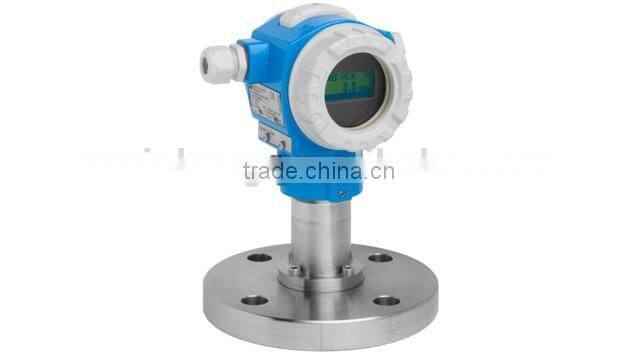

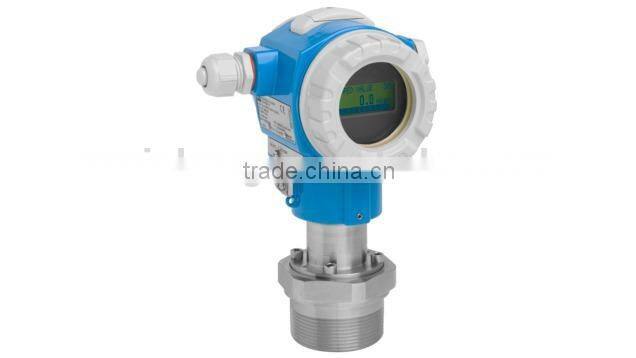

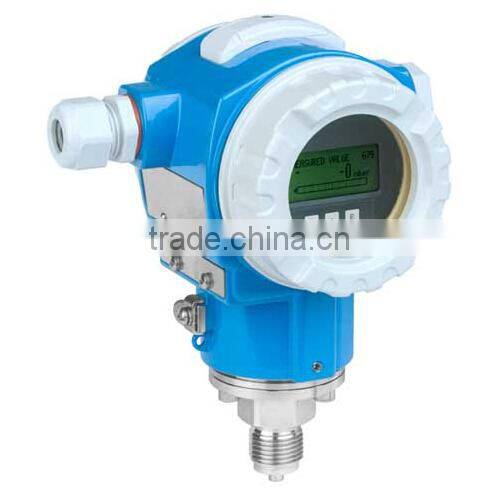

Germany e+h pressure transmitter pmc71 e&h
1. Product Description:
The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
2. Benefits:
Best fit for vacuum applications and applications with corrosive and abrasive media
Process safety through membrane breakage detection
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Cost savings with modular concept for easy replacement of sensor, display or electronics
3. Field of Applications:
Two chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +150°C (-40 to +302°F)
Measuring ranges: -1/0 up to to +40bar (+1.5 to +600psi)
Accuracy: ±0.075%, "Platinum" ±0.05%
International explosion protection certificates, WHG overfill prevention, SIL, EN 10204-3.1, 3-A, EHEDG, 3-A, ship building approvals
4. Specifications:
| Measuring Principle | Hydrostatic | |
| Characteristic |
Digital transmitter with capacitive sensor and ceramic membrane Modular transmitter Long term stability Enhanced safety via self diagnostic functions Secondary process barrier |
|
| Supply voltage |
4...20mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
|
| Reference Accuracy |
Standard: 0.05% Platinum: up to 0.025% |
|
| Long term stability | 0,05% of URL/year | |
| Process temperature |
-20°C...150°C (-4°F...257°F) |
|
| Ambient temperature |
-40°C...85°C (-40°F...185°F) |
|
| Measuring cell |
100mbar...40bar (1.5psi...600psi) relative/ absolute |
|
| Vacuum resistance | 0 mbar abs. | |
| Max. overpressure limit | 60bar (900psi) | |
| Process connection |
Thread: G1/2...G2, R1/2, MNPT1/2...MNPT2 Flange: DN25...DN80, ASME 1"...4", JIS 10K |
|
| Hygienic |
Tri-Clamp DIN11851 Varivent N SMS DRD |
|
| Material process membrane | Ceramic | |
| Fill fluid | none, dry measuring cell | |
| Material housing |
Die-cast aluminum, AISI 316L |
|
| Communication |
4...20mA HART PROFIBUS PA FOUNDATION Fieldbus |
|
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI | |
| Design approvals | EN10204-3.1 | |
| Hygienic approvals |
EHEDG 3A |
|
5. About us:
Xi'an XK Sensor Equipment Co,Ltd is located in Xi'an city, which is China's instrument authoritative research and development center, mainly engaged in four categories products:
Press Transmitter Branch: Rosemount, Yokogawa, ABB, SIEMENS, E+H, Honeywell.
Temperature Transmitter Branch: Rosemount, Yokogawa, Honeywell, E+H, ABB
Flow meter Branch: Rosemount, Yokogawa, Honeywell, E+H, ABB
Valve Positioner Branch: YTC, FISHER, SIEMENS, YAMATAKE, ABB, KOSO, YTC
We look forward to establishing long-term business relationship with you!
