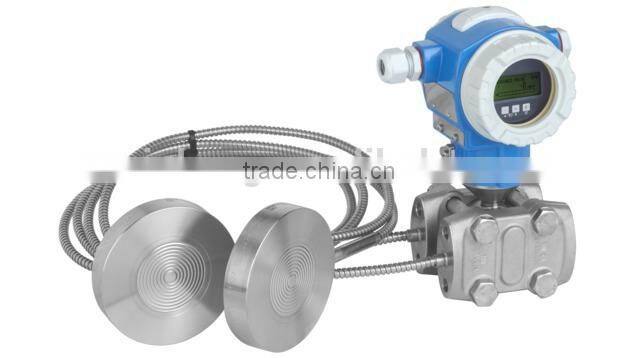

Germany brand e+h FMD78 pressure sensor
1. Product Description:
The Deltabar FMD78 differential pressure transmitter with metal sensor uses two capillary diaphragm seals. Typically used in process and hygiene applications for continuous measurement of pressure differences in liquids, vapors, gases and dusts. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.
2. Benefits:
Large variety of different process connections and membrane materials
New TempC Membrane for diaphragm seals: Minimum temperature effects and short recovery times
Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Cost savings with modular concept for easy replacement of sensor, display or electronics
Seamless and independent system integration (HART/PA/FF)
3. Field of Applications:
For differential pressure, level, volume or mass measurement in liquids.
Process connections: Threads, flanges, pancake and hygienic connections
Process temperature: -70 up to +400°C (-94 to +752°F)
Measuring ranges: 100mbar to +16bar (1.5 to 240psi);
Accuracy: ±0.075%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
4. Specifications
| Measuring Principle | Differential pressure | |
| Characteristic | Electronic differential pressure transmitter with metal sensor for level, volume or mass measurement in liquids. | |
| Supply voltage |
4...20 mA HART: 12...45V DC (Non Ex) Ex ia: 12...30V DC |
|
| Reference Accuracy |
0.075% of individual sensor, "PLATINUM" 0.05% of individual sensor |
|
| Long term stability | 0.05% of URL/year of individual sensor | |
| Process temperature | –40...+125°C (–40...+257°F) | |
| Ambient temperature | –40...+80°C (–40...+176°F) | |
| Measuring cell |
400 mbar...10 bar (6 psi...150psi) |
|
| Vacuum resistance | 10 mbar abs. | |
| Max. overpressure limit | 160 bar (2400 psi) | |
| Process connection |
Threads Flange (DIN, ASME,JIS) |
|
| Hygienic |
DIN11851 DIN11864-1 Tri-Clamp DRD Varivent |
|
| Material process membrane |
316L, AlloyC, |
|
| Fill fluid | Silicone oil, Synthetic oil | |
| Material housing |
Die-cast aluminum Stainless steel |
|
| Communication | 4...20 mA HART | |
| Certificates / Approvals |
ATEX, FM, CSA, IECEx |
|
| Design approvals |
NACE MR0175, EN10204-3.1, |
|
| Hygienic approvals | EHEDG, 3A | |
5. About us:
Xi'an XK Sensor Equipment Co,Ltd is located in Xi'an city, which is China's instrument authoritative research and development center, mainly engaged in four categories products:
Press Transmitter Branch: Rosemount, Yokogawa, ABB, SIEMENS, E+H, Honeywell.
Temperature Transmitter Branch: Rosemount, Yokogawa, Honeywell, E+H, ABB
Flow meter Branch: Rosemount, Yokogawa, Honeywell, E+H, ABB
Valve Positioner Branch: YTC, FISHER, SIEMENS, YAMATAKE, ABB, KOSO, YTC
We look forward to establishing long-term business relationship with you!
