China New Product High Capacity Conveying Machine Bucket Elevator China Tube Chain Conveyor

Name: China New Product High Capacity Conveying Machine Bucket Elevator China Tube Chain Conveyor
Brand: JINZHEN
Availability: InStock

FOB Price

USD $1,500 - $8,900 / Set

1 Set(Min.Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	JINZHEN
Model Number	JZHL; JZTH

Product Description

Specifications

China Tube Chain Conveyor
1.Large capacity
2.Professional design
3.Easy operation&Strong structure
4.CE, ISO900, BV

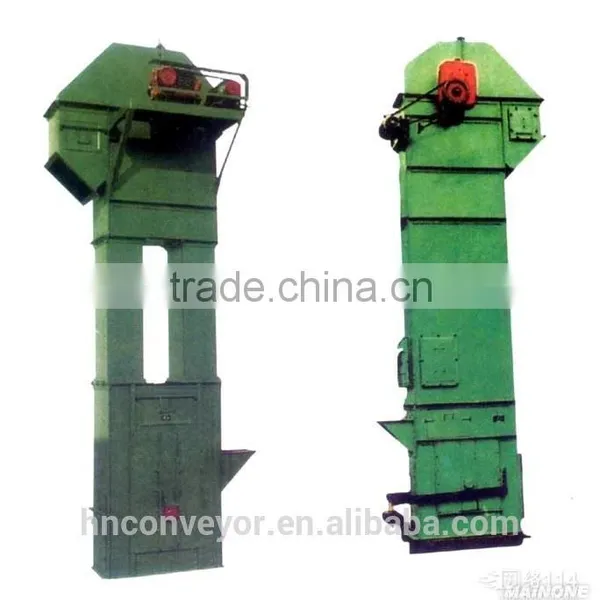

China New Product High Capacity Conveying Machine Bucket Elevator China Tube Chain Conveyor

Product introduction- China Tube Chain Conveyor

Bucket elevator is a kind of with a belt or chain for the traction mechanism of vertical lifting equipment. Canveying height is 30-80 meters. Bucket elevator application scope is extremely broad, it's suitable for many different industries. Small field area, hoisting height range, good sealing, reliable operation, high efficiency, low energy consumption characteristics.

Working principle- China Tube Chain Conveyor

The hopper material scooped up from the following storage, with the conveyor belt or chain ascend to the top, flip down after bypass the crown chakra, bucket elevator poured material into receiving groove.

Product parts- China Tube Chain Conveyor

1.Feed inlet 2.adjusting bolt 3.chain 4.bucket 5.Transmission platform 6.actuating device 7.transmission

8.The upper section 9.Outlet 10.The middle housing case 11.Footing fixing bolt 12.The lower section

Application- China Tube Chain Conveyor

1. Food industry: fodder, flour, rice, starch, sugar, salt, corn, etc.

2. M ining industry: coal, sand, mineral, limestone, gypsum, etc.

3. Building industry: stone, cement, clay, lime, concrete, soil, etc.

Technical parameters- China Tube Chain Conveyor

Type		Capacity (m³/h)	Bunker parameter			The speed of Main shaft (r/min)	Particle size of material (mm)	Lifting height (m)	Power (Kw)
Type		Capacity (m³/h)	Volume(L)	Distance(mm)	Speed(r/min)	The speed of Main shaft (r/min)	Particle size of material (mm)	Lifting height (m)	Power (Kw)
JZHL300	S	28	5.2	500	1.25	37.5	40	30.16	5.5-10
JZHL300	Q	16	4.4	500	1.25	37.5	40	30.16	5.5-10
JZHL400	S	47.2	10.5	600	1.25	37.5	50	21.92	5.5-10
JZHL400	Q	30	10	600	1.25	37.5	50	30.32	5.5-10
JZTH315	zh	35	3.75	512	1.4	42.5	45	50	4-11
JZTH315	sh	59	6.0	512	1.4	42.5	45	50	4-11
JZTH400	zh	58	5.9	512	1.4	37.6	55	50	7.5-18
JZTH400	sh	94	9.5	512	1.4	37.6	55	50	7.5-18
JZTH500	zh	73	9.3	688	1.5	35.8	65	45	11-22
JZTH500	sh	118	15	688	1.5	35.8	65	45	11-22
JZTH630	zh	114	14.6	688	1.5	31.8	75	50	11-37
JZTH630	sh	185	23.6	688	1.5	31.8	75	50	11-37

JZTH: zh- Medium deep bucket, for clammy material, like sugar, wet sand.

sh- Deep bucket, for dry powder and grain, like cement, sand and coal.

JZHL: Q- Shallow round bottom bucket, for the material that wet, easy to caking, hard to throw, like wet sand, wet coal.

S- Deep round botton bucket, for the material that dry, loose and easy to throw, like cement, coal sheet, gravel.

Advantages- China Tube Chain Conveyor

1. Tough Chain structure and very strong hopper connection.

2. The abrasion of chain is small, Stronger than belt type.

3. Suitable for a large quantity of industries.

4. Large capacity, Reliably Sealing and High efficiency.

Producing process- China Tube Chain Conveyor

Certification- China Tube Chain Conveyor

CE,BV,ISO9001,Supplier Assessment,Letter of Patent,Quality Authentication

Packaging- China Tube Chain Conveyor

Fumigation-free wooden case.

Waterproof, anti-corrosion, difficult to burn, sturdy and durable

Why choose us?

Jinzhen Machinery Manufacturing

BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
