Specifications
Hoister1.Large capacity
2.Professional design
3.Easy operation&Strong structure
4.CE, ISO9001, BV

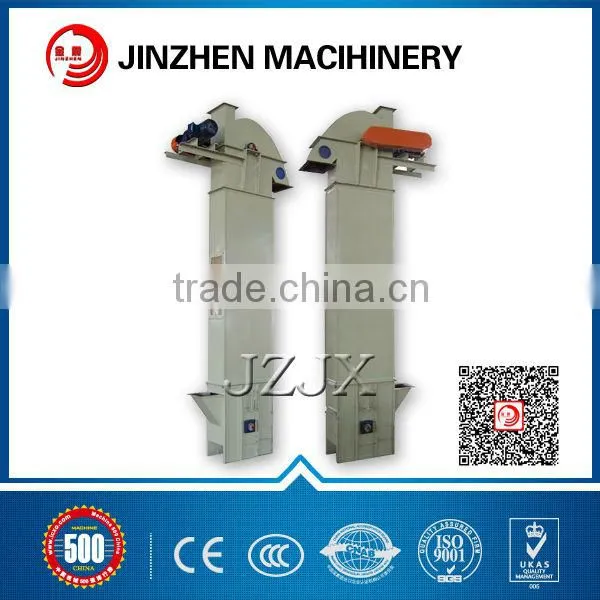

Alibaba China Supplier Conveyor Manufacturer Cheap Price Hoister
Product introduction- Cheap Price Hoister
Bucket elevator is a kind of with a belt or chain for the traction mechanism of vertical lifting equipment. Canveying height is 30-80 meters. Bucket elevator application scope is extremely broad, it's suitable for many different industries. Small field area, hoisting height range, good sealing, reliable operation, high efficiency, low energy consumption characteristics.
Working principle- Cheap Price Hoister
The hopper material scooped up from the following storage, with the conveyor belt or chain ascend to the top, flip down after bypass the crown chakra, bucket elevator poured material into receiving groove.
Product parts- Cheap Price Hoister
1.Feed inlet 2.adjusting bolt 3.chain 4.bucket 5.Transmission platform 6.actuating device 7.transmission
8.The upper section 9.Outlet 10.The middle housing case 11.Footing fixing bolt 12.The lower section
Application- Cheap Price Hoister
1. Food industry: fodder, flour, rice, starch, sugar, salt, corn, etc.
2. Mining industry: coal, sand, mineral, limestone, gypsum, etc.
3. Building industry: stone, cement, clay, lime, concrete, soil, etc.
Technical parameters- Cheap Price Hoister
| Type |
Capacity (m³/h) |
Bunker parameter |
The speed of Main shaft (r/min) |
Particle size of material (mm) |
Lifting height (m) |
Power (Kw) |
|||
| Volume(L) | Distance(mm) | Speed(r/min) | |||||||
| JZHL300 | S | 28 | 5.2 | 500 | 1.25 | 37.5 | 40 | 30.16 | 5.5-10 |
| Q | 16 | 4.4 | 500 | 1.25 | 37.5 | 40 | 30.16 | ||
| JZHL400 | S | 47.2 | 10.5 | 600 | 1.25 | 37.5 | 50 | 21.92 | 5.5-10 |
| Q | 30 | 10 | 600 | 1.25 | 37.5 | 50 | 30.32 | ||
| JZTH315 | zh | 35 | 3.75 | 512 | 1.4 | 42.5 | 45 | 50 | 4-11 |
| sh | 59 | 6.0 | 512 | 1.4 | 42.5 | 45 | 50 | ||
| JZTH400 | zh | 58 | 5.9 | 512 | 1.4 | 37.6 | 55 | 50 | 7.5-18 |
| sh | 94 | 9.5 | 512 | 1.4 | 37.6 | 55 | 50 | ||
| JZTH500 | zh | 73 | 9.3 | 688 | 1.5 | 35.8 | 65 | 45 | 11-22 |
| sh | 118 | 15 | 688 | 1.5 | 35.8 | 65 | 45 | ||
| JZTH630 | zh | 114 | 14.6 | 688 | 1.5 | 31.8 | 75 | 50 | 11-37 |
| sh | 185 | 23.6 | 688 | 1.5 | 31.8 | 75 | 50 | ||
JZTH: zh- Medium deep bucket, for clammy material, like sugar, wet sand.
sh- Deep bucket, for dry powder and grain, like cement, sand and coal.
JZHL: Q- Shallow round bottom bucket, for the material that wet, easy to caking, hard to throw, like wet sand, wet coal.
S- Deep round botton bucket, for the material that dry, loose and easy to throw, like cement, coal sheet, gravel.
Advantages- Cheap Price Hoister
1. Tough Chain structure and very strong hopper connection.
2. The abrasion of chain is small, Stronger than belt type.
3. Suitable for a large quantity of industries.
4. Large capacity, Reliably Sealing and High efficiency.
Producing process- Cheap Price Hoister
Certification- Cheap Price Hoister
CE,BV,ISO9001,Supplier Assessment,Letter of Patent,Quality Authentication
Packaging- Cheap Price Hoister
Fumigation-free wooden case.
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
