Specifications
Belt Bucket Elevators1.Large capacity
2.Professional design
3.Easy operation&Strong structure
4.CE, ISO9001, BV

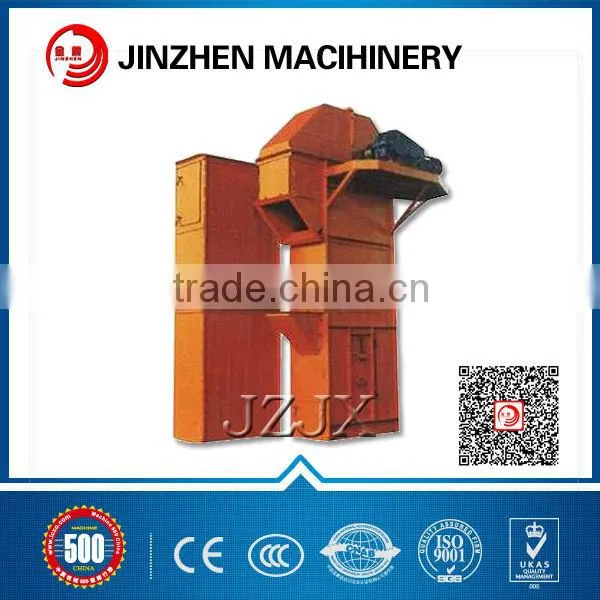

Large Capacity Belt Bucket Elevators Conveying Machine
Product introduction- Belt Bucket Elevators
Bucket elevator is a kind of with a belt or chain for the traction mechanism of vertical lifting equipment. Canveying height is 30-80 meters. Bucket elevator application scope is extremely broad, it's suitable for many different industries. Small field area, hoisting height range, good sealing, reliable operation, high efficiency, low energy consumption characteristics.
Working principle- Belt Bucket Elevators
The hopper material scooped up from the following storage, with the conveyor belt or chain ascend to the top, flip down after bypass the crown chakra, bucket elevator poured material into receiving groove.
Product parts- Belt Bucket Elevators
1.Feed inlet 2.adjusting bolt 3.chain 4.bucket 5.Transmission platform
6.actuating device 7.transmission 8.The upper section
9.Outlet 10.The middle housing case 11.footing fixing bolt
Application- Belt Bucket Elevators
1. Food industry: fodder, flour, rice, starch, sugar, salt, corn, etc.
2. Mining industry: coal, sand, mineral, limestone, gypsum, etc.
3. Building industry: stone, cement, clay, lime, concrete, soil, etc.
Technical parameters- Belt Bucket Elevators
| Type |
Capacity (m³/h) |
Bunker parameter |
The speed of Main shaft (r/min) |
Particle size of material (mm) |
Lifting height (m) |
Power (Kw) |
|||
| Volume(L) | Distance(mm) | Speed(r/min) | |||||||
| JZHL300 | S | 28 | 5.2 | 500 | 1.25 | 37.5 | 40 | 30.16 | 5.5-10 |
| Q | 16 | 4.4 | 500 | 1.25 | 37.5 | 40 | 30.16 | ||
| JZHL400 | S | 47.2 | 10.5 | 600 | 1.25 | 37.5 | 50 | 21.92 | 5.5-10 |
| Q | 30 | 10 | 600 | 1.25 | 37.5 | 50 | 30.32 | ||
| JZTH315 | zh | 35 | 3.75 | 512 | 1.4 | 42.5 | 45 | 50 | 4-11 |
| sh | 59 | 6.0 | 512 | 1.4 | 42.5 | 45 | 50 | ||
| JZTH400 | zh | 58 | 5.9 | 512 | 1.4 | 37.6 | 55 | 50 | 7.5-18 |
| sh | 94 | 9.5 | 512 | 1.4 | 37.6 | 55 | 50 | ||
| JZTH500 | zh | 73 | 9.3 | 688 | 1.5 | 35.8 | 65 | 45 | 11-22 |
| sh | 118 | 15 | 688 | 1.5 | 35.8 | 65 | 45 | ||
| JZTH630 | zh | 114 | 14.6 | 688 | 1.5 | 31.8 | 75 | 50 | 11-37 |
| sh | 185 | 23.6 | 688 | 1.5 | 31.8 | 75 | 50 | ||
JZTH: zh- Medium deep bucket, for clammy material, like sugar, wet sand.
sh- Deep bucket, for dry powder and grain, like cement, sand and coal.
JZHL: Q- Shallow round bottom bucket, for the material that wet, easy to caking, hard to throw, like wet sand, wet coal.
S- Deep round botton bucket, for the material that dry, loose and easy to throw, like cement, coal sheet, gravel.
Advantages- Belt Bucket Elevators
1. Tough Chain structure and very strong hopper connection.
2. The abrasion of chain is small, Stronger than belt type.
3. Suitable for a large quantity of industries.
4. Large capacity, Reliably Sealing and High efficiency.
Producing process- Belt Bucket Elevators
Certification- Belt Bucket Elevators
CE,BV,ISO9001,Supplier Assessment,Letter of Patent,Quality Authentication
Packaging- Belt Bucket Elevators
Fumigation-free wooden case.
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Why choose us?
Jinzhen Machinery Manufacturing
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
