Specifications
Belt Convey1.Long conveying distance
2.large capacity
3.CE, ISO, BV certificates
4.Energy saving

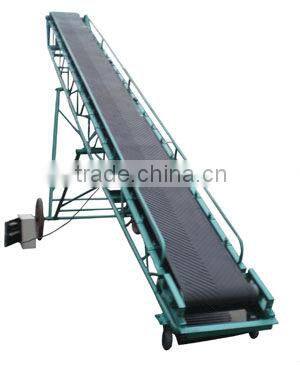

JINZHEN China Top Ten Products Portable Type Belt Convey
Product introduction- Mobile Belt Convey
Mobile belt conveyor also named DY belt conveyor, belongs to a new type of belt conveyor. The main components of the belt conveyor is same with the common type of conveyor, but the common type can not be moved, and it is heavier. Mobile belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance.
Working principle- Mobile Belt Convey
Belt-driven approach: gear motor drive, electric drum drive
Belt speed mode: frequency control, infinitely variable.
Rack material: carbon steel, stainless steel, aluminum
Type- Mobile Belt Convey

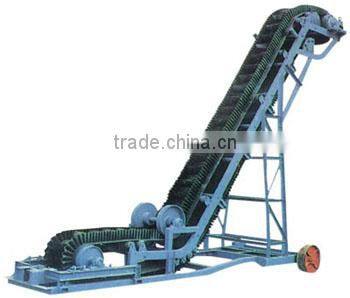

Groove belt conveyor, flat belt conveyor, climbing belt, belt curves, telescopic belt conveyor and other forms, Belt conveyor can be added to other accessories to meet process requirements. Such as lifting, both sides of the conveyor table, the installation of fixtures, electronic instrument assembly, food packaging and other belt conveyor assembly line.
Material- Mobile Belt Convey
Rubber, silicone, PVC, PU and other materials, except for transport ordinary materials, it also transport special requirements, like oil, corrosion resistance, anti-static materials etc. Using special conveyor belt for grain, to meet the food, pharmaceutical, household chemicals and other industry requirements.
Belt conveyor has a simple structure, easy maintenance, less energy consumption and low cost characteristics, but also has the following characteristics:
1, Many kinds of material can be transported, also transport all kinds of bulk material , a variety of cartons, bags and other single-piece lightweight products, it can also be used to transport goods at a large supermarket cashier, etc.
2, Many diverse forms of structure, can also add other accessories to meet different process requirements.
3, Except for the delivery of ordinary materials, also works for special requirements, like corrosion resistance, anti-static materials etc.
4, Smooth transportation between the material and the conveyor belt there is no relative movement, to avoid damage to the transported material .
6, The noise is smaller than other kinds of conveyors , suitable for quiet work environment.
Technical parameters- Mobile Belt Convey
| Belt Width(mm) | Belt Length(m) / Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
| B400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 | 40-80 |
| B500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 | 78-191 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 | 131-323 |
| B800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 | 278-546 |
| B1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 | 435-853 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2 | 655-1284 |
Delivery details- Mobile Belt Convey
7-20days after deposit
Packaging- Mobile Belt Convey
Fumigation-free wooden case
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Certification- Mobile Belt Convey
CE, ISO, BV, Supplier Assessment, Letter of Patent, Quality Authentication
Professional service- Mobile Belt Convey
Our products are sold in China and abroad in over 15 countries;
We will send you an engineer to abroad help for the machine setup and training your workers.
Q&A: How to choose a suitable type of Belt Conveyor?
1. What is the raw material going to conveying?
2. What is the Load Capacity?(T or m3/Per hour)
3. How long is the conveying length? (in meter)
4. What is the Angle (Degree)?
5. Other special requirement? Example: Dust Cap, Heat resistant, anti-static,etc.
Why choose us?
Jinzhen Machinery Manufacturing
We are specialized in manufacturing Belt conveyor and many kinds of machinery for 25 years.
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
