Home > Products > Belt Conveyor > Stable Structure Conveying System Fixed Type Fertilizer Belt Conveyors
Stable Structure Conveying System Fixed Type Fertilizer Belt Conveyors
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Other, Fertilizer Belt Conveyors | Material: | Rubber |
Material Feature: | Heat Resistant | Structure: | Belt Conveyor | Load Capacity: | 500~2500kg/m3 |
Place of Origin: | Henan, China | Brand Name: | JINZHEN | Model Number: | JZ-DY |
Voltage: | 380v | Power(W): | 1.5KW-13KW | Dimension(L*W*H): | Depends on the models |
Certification: | CE, BV, ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Fertilizer Belt Conveyors1.Long conveying distance
2.Large capacity
3.CE, ISO, BV
4.Energy saving
Stable Structure Conveying System Fixed Type Fertilizer Belt Conveyors
Product introduction- Fertilizer Belt Conveyors

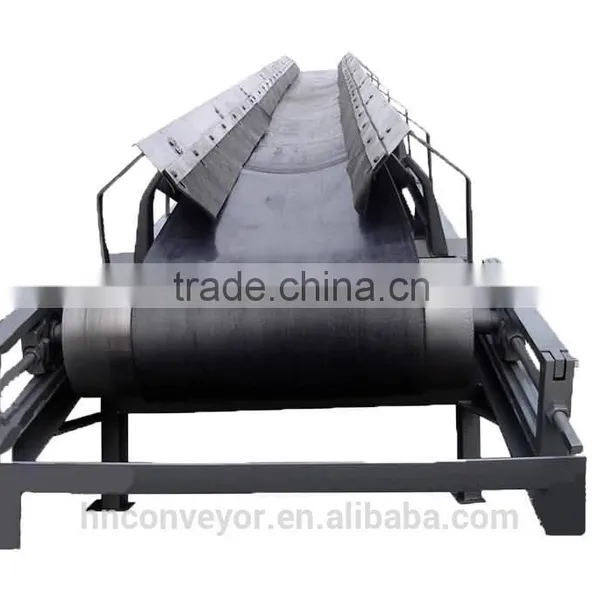

Fixed belt conveyor is a machine can transport materials in a continuous mechanical move by friction drive. It is made up of the rack, conveyor belt, rollers, tensioning devices, drives and other components. It can transport the material to a certain line, from the feed point to the final discharge point, became a transport processe between the two points.
Working principle- Fertilizer Belt Conveyors
Belt-driven approach: gear motor drive, electric drum drive
Belt speed mode: frequency control, infinitely variable.
Rack material: carbon steel, stainless steel, aluminum
Different Type- Fertilizer Belt Conveyors
Groove belt conveyor, flat belt conveyor, climbing belt, belt curves, telescopic belt conveyor and other forms, Belt conveyor can be added to other accessories to meet process requirements. Such as lifting, both sides of the conveyor table, the installation of fixtures, electronic instrument assembly, food packaging and other belt conveyor assembly line.
Material- Fertilizer Belt Conveyors
Rubber, silicone, PVC, PU and other materials, except for transport ordinary materials, it also transport special requirements, like oil, corrosion resistance, anti-static materials etc. Using special conveyor belt for grain, to meet the food, pharmaceutical, household chemicals and other industry requirements.
Advantage- Fertilizer Belt Conveyors
Belt conveyor has a simple structure, easy maintenance, less energy consumption
and low cost characteristics, but also has the following characteristics:
1, Many kinds of material can be transported, also transport all kinds of bulk material,
a variety of cartons, bags and other single-piece lightweight products, it can also be used to transport goods at a large supermarket cashier, etc.
2, Many diverse forms of structure, can also add other accessories to meet different process requirements.
3, Except for the delivery of ordinary materials, also works for special requirements,
like corrosion resistance, anti-static materials etc.
4, Smooth transportation between the material and the conveyor belt there is no relative movement, to avoid damage to the transported material .
6, The noise is smaller than other kinds of conveyors , suitable for quiet work environment.
Technical parameters- Fertilizer Belt Conveyors
Belt Width(mm) | Belt Length(m) / Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
B400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 | 40-80 |
B500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 | 78-191 |
B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 | 131-323 |
B800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 | 278-546 |
B1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 | 435-853 |
B1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2 | 655-1284 |
Delivery details- Fertilizer Belt Conveyors
7-20days after deposit
Packaging- Fertilizer Belt Conveyors
Fumigation-free wooden case
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Certification- Fertilizer Belt Conveyors
CE, ISO, BV, Supplier Assessment, Letter of Patent, Quality Authentication
Professional service- Fertilizer Belt Conveyors
Our products are sold in China and abroad in over 15 countries;
We will send you an engineer to abroad help for the machine setup and training your workers.
Why choose us?
Jinzhen Machinery Manufacturing
We are specialized in manufacturing Belt conveyor and many kinds of machinery for 25 years.
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
Contact Us
- Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd.
- Contact nameSarah liu
- Phone86-373-5939771
- AddressYulin Village,Yanjin County, Xinxiang, Henan, China (Mainland) Xinxiang,Henan
