High Quality Customized Electronic LED Multi-sports Scoreboard

US$ 800 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

QHG

Model Number:

SGH-F180DA

Shijiazhuang Sothink Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name QHG

Model Number SGH-F180DA

Usage Outdoor

Tube Chip Color Other, Red,green,yellow

Display Function Graphics

Pixels 10mm

Screen Dimension 1800*950*75mm

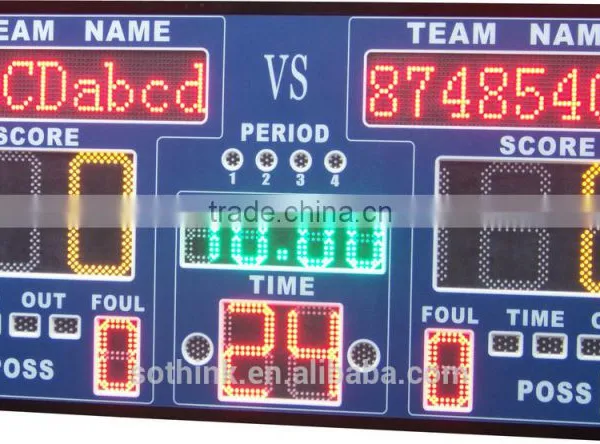

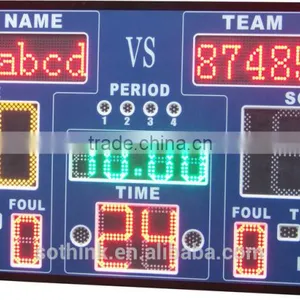

High quality customized electronic LED multi-sports scoreboard

Specification:

Product	LED multi-sports scoreboard
Brand Name	QHG
Model	SGH-F180DA
Frame Material	spray aluminum alloy
Color of Scoreboard	matt black,white
Screen Dimension	180095075mm
Control	wired/ wireless control
Packing	wooden case
Weight	40kg
Working Life	>100000 hours
Power Supply	110v/220v AC, 50-60Hz
The Machine Power	80-100W(0.08 KWH -- 0.1 KWH / hour)
Watts	80w -100w
Warranty	one year guarantee against defects in materials and workmanship
Installation	available to be installed on two posts, hanging etc
Application	basketball, football

Configuration:

Display screen	1 set (180095075mm )
Console	1 set
Instruction book	1 piece
Cable	45 meters
The movable stand with active wheels	1 pair (optional)
Wireless control	optional

Font Height :

1.Team Name displayed	P10 single red semi-outdoor display unit board, character height is 160mm
2.Score display	Red or yellow Bright LED Composition ,Height 280mm
3.Game time	Green or yellow Bright LED Composition ,Height 145mm
4.Foul display	Red Bright LED Composition ,Height 160mm
5. 24 seconds display	Red or yellow Bright LED Composition ,Height 220mm

Function:

Poduct Disply:

Working Process:

Our Advantage:

The scoreboard is designed according to the characteristics of the basketball match, made of Taiwan's production with LED life more than 100000 hours;
The LED scoreboard is of high brightness, good visibility, low power consumption and long working life;
It can be wired or wireless remote control and easy to operate;
It has high accuracy, and controlled by single chip microcomputer;
Optional installation of removable sliding shelf, easy to move;
It is capable of storing the data set at the last time in a long term;
Two teams score between subject and object is adjustable from 0-199;
It has the function of power-fail protection, wherein all contents displayed on the display screen before power-fail (shutdown) may be memorized;
It is available to be installed on two posts, hanging etc;
It has stable performance, moderate size, flexible usage, good quality and reasonable price, especially suitable for small gym and training venue.
