manufacture price with 5m-12m pole equal arm waterproof integrated solar lantern

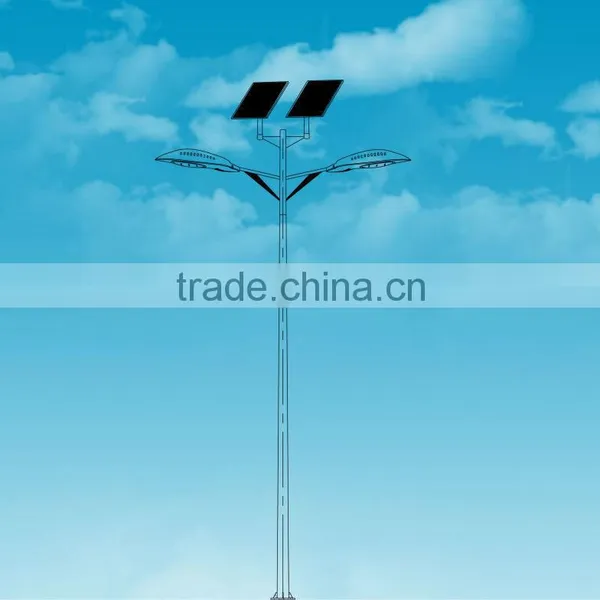

Pole

Material: Q235, mild steel (Q275 Q345 available)

Height: 4m, 5m, 6m, 7m,8m, 9m, 10m, 11m, 12m

Thickness: 2.75mm, 3mm

Finish: Hot-dip Galvanize, powder coating
Life span: 25years

Details see CAD drawing of poles of different cases

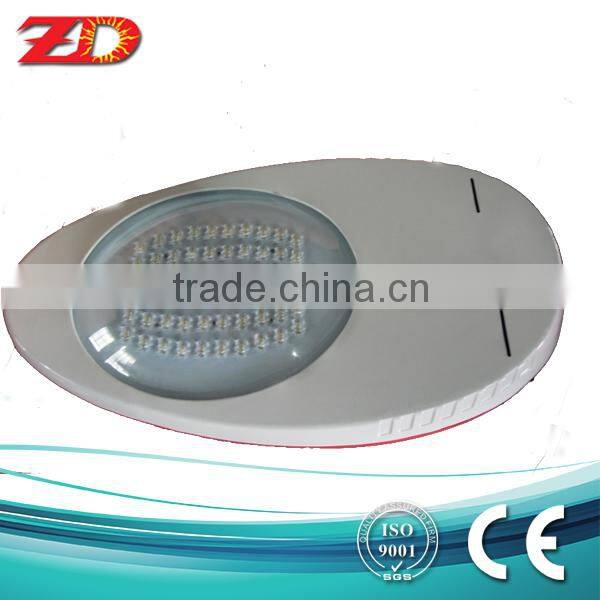

LED Lamp

Power:20W-100W

Chip: Epistar ,Bridgelux or Cree.

Average Illumination: 6m>25Lux, 8m>20Lux

LED Luminous Efficiency:>110Lm/m

Light Luminous Efficiency: >90%

Color temperature: 3000-5500K

Color Rendering Index: Ra>75

Input Voltage: 85-265V, 50-60Hz

Power factor: >0.95

Power efficiency: >90%

Working temperature: -60 to +70 centigrade

IP rating: IP65

Working life: >50000hours

Solar panel

Power 50—200W

Mono-crystalline panel or Polycrystalline panel

Power tolerance : ±5%

Working temperature:  -40°C to 85°C

working life ≥ 20 years

Battery

 Solar Gel Battery (12V & 24V)

lChinese leading manufacture of solar gel battery

lMaintenance-free Gel battery

lPatented design- 24V series, perfect combination of 2 12V battery into 1

lPatented formula: alloy and lead paste formula assures strong recovery after discharge

lLong life span: Gel electrolyte – no acid layer, no leaking

lEcho-friendly: No Cadmium. No leaking

lWorking temperature: -40 to +50 centigrade

lEasy transportation with no leaking of battery

lworking life ≥ 8 years

Battery box

 Waterproof

Anti-corrosion

Pressure resistant

Heat protection

Life span: 20years

Controller

  Intelligent sensor

lLight control

lTime control

lPower control

lOver charging protection

lDischarging protection

lShort Circuit protection

lReverse polarity protection

l& more…

warranty

  Two years quality
