Specifications
solar energy system light1.Professionalism for 20 years.
2.CE & ISO
3.Bridgelux & Cree chip
4. in-house production
high lumen single arm IP65 all in one solar energy system light
1.Detailed Specification:
Pole |
Material: Q235, mild steel (Q275 Q345 available) Height: 4m, 5m, 6m, 7m,8m, 9m, 10m, 11m, 12m Thickness: 2.75mm, 3mm Finish: Hot-dip Galvanize, powder coating Details see CAD drawing of poles of different cases |
|
LED Lamp |
Power:20W-100W Chip: Epistar ,Bridgelux or Cree. Average Illumination: 6m>25Lux, 8m>20Lux LED Luminous Efficiency:>110Lm/m Light Luminous Efficiency: >90% Color temperature: 3000-5500K Color Rendering Index: Ra>75 Input Voltage: 85-265V, 50-60Hz Power factor: >0.95 Power efficiency: >90% Working temperature: -60 to +70 centigrade IP rating: IP65 Working life: >50000hours |
|
Solar panel |
Power 50—200W Mono-crystalline panel or Polycrystalline panel Power tolerance : ±5% Working temperature: -40°C to 85°C working life ≥ 20 years |
|
Battery |
Solar Gel Battery (12V & 24V) lChinese leading manufacture of solar gel battery lMaintenance-free Gel battery lPatented design- 24V series, perfect combination of 2 12V battery into 1 lPatented formula: alloy and lead paste formula assures strong recovery after discharge lLong life span: Gel electrolyte – no acid layer, no leaking lEcho-friendly: No Cadmium. No leaking lWorking temperature: -40 to +50 centigrade lEasy transportation with no leaking of battery lworking life ≥ 8 years |
|
Battery box |
Waterproof Anti-corrosion Pressure resistant Heat protection Life span: 20years |
|
Controller |
Intelligent sensor lLight control lTime control lPower control lOver charging protection lDischarging protection lShort Circuit protection lReverse polarity protection l& more… |
|
warranty |
Two years quality |
|
high lumen single arm IP65 all in one solar energy system light
2. ODM & OEM service
Tailed lighting solutions
Send us drawings of your solar street lighting system, we will work out satisfactory solutions for you.
Tell us the consumption/lighting power or the road condition/width, we will work out satisfactory solutions for you.
high lumen single arm IP65 all in one solar energy system light

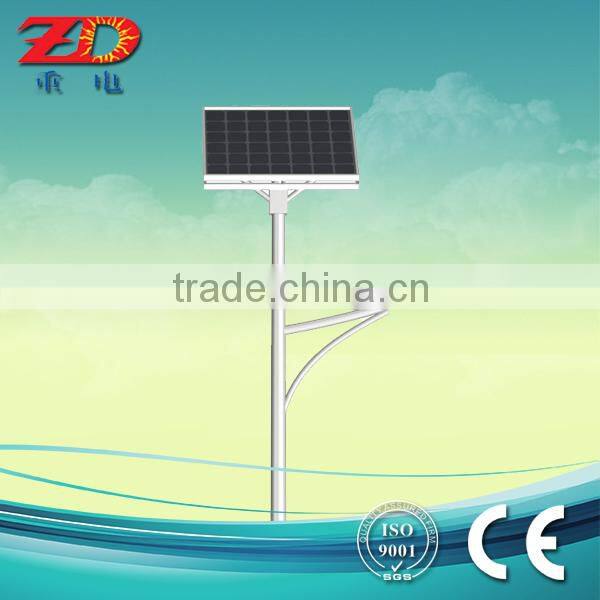

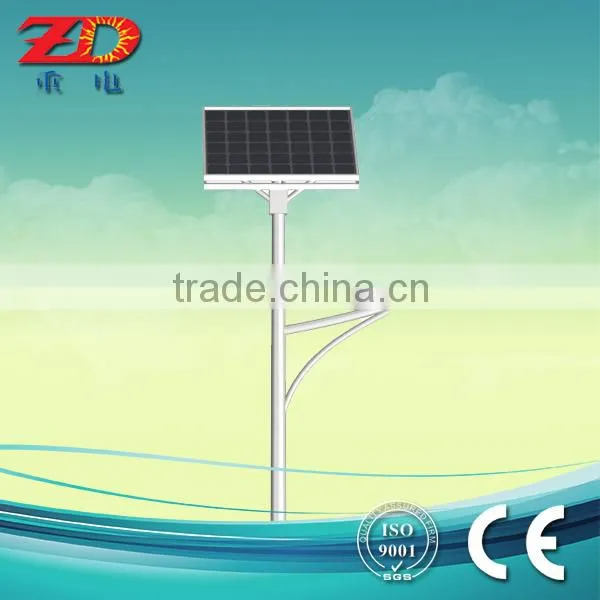

3.Pic:
high lumen single arm IP65 all in one solar energy system light
4.Certificates:
high lumen single arm IP65 all in one solar energy system light
5. Why Zhongdian
lComplete in-house production line of: Panel, LED light, Battery, Controller, Poles
lChinese Leading manufacture of solar battery
lChinese leading manufacture of solar home generator system
lUncompromised quality control & devotion in R&D of green energy
lFactory outlet price
lEasy and happy communication with Zhongdian
high lumen single arm IP65 all in one solar energy system light
6.Factory pictures
