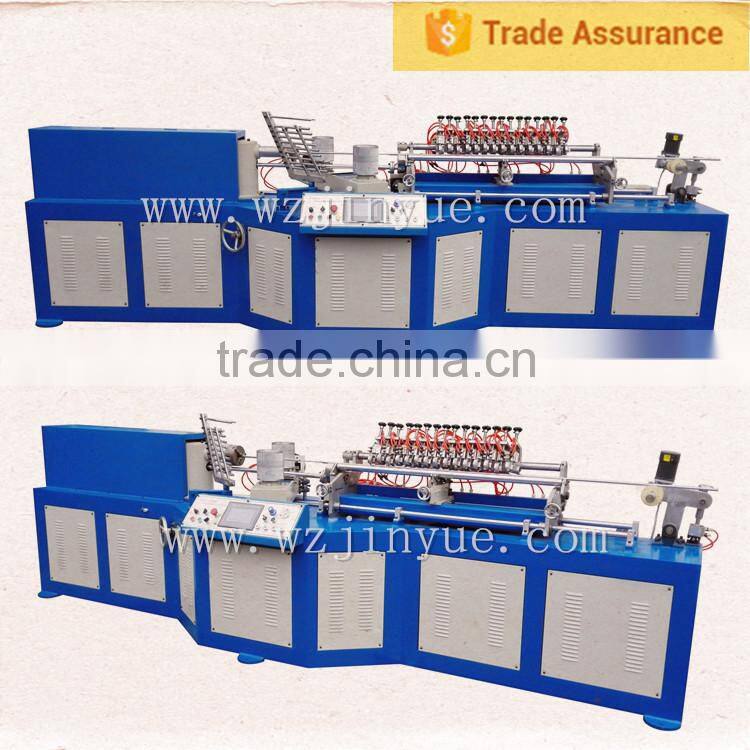

JY - MC960 paper core pipe making machine in China
USE:
Suitable for all kind of paper tube / core production,such as package tin,tea caddy,
food cans,wine cans,fireworks tube,calendar tube,fax paper core,etc.
FEATURE:
1.With multi function waxing paper device and auto stop when paper cut off.
2.With online multi-cut blades,no need secondary cutting,save labor and time.
3.Stable production at the highest speed 60m/min,the firdt of its kind in China
Basic parameter:
•Tube I.D.: 10-60mm
•Tube wall thickness: 1-5mm
•Paper plies: 8 plies
•Paper gramme: 100-350GSM
•Machinery speed: 10-60m/min (depend on tube sizes, material quality and operator skill )
•In-line cut off length: 50-1500mm (or more)
Machine Consists:
Technical Parameter |
Control system |
|||
Number of roller |
3-8 layer |
PLC controller |
Delta DVP28SV |
|
Tube diameter |
10-60 mm |
Touch screen |
MCGS TPC7062 |
|
Tube wall-thickness |
0.5-5 mm |
Transducer |
YASKAWA 3.7KW |
|
Core mould fixed way |
Flank chuck |
Electric part |
Schneider |
|
Winding head |
2 |
Single part |
Omron |
|
Cutting way |
Round knife |
Pneumatic part |
AIRTAC |
|
Gluing way |
Single / double sides |
Fix length way |
Optoelectronic switch/encode |
|
Operator |
1-2 person |
Equip device |
||
Winding speed |
3-60 m/min |
Paper shelf type |
Integral reel stand |
|
Speed control |
Transducer |
Auto fall tube shelf |
Have |
|
Driving system |
Glue shelf |
Have |
||
Main motor |
4.0KW |
Belts |
2 |
|
Reducer type |
WPO155 JIACHENG |
Core mould |
2 |
|
Cutting motor |
Stepper motor |
Cut left-right control |
Z lead screw+ servo motor |
|
Glue pump |
1.5 KW |
|
||
Mainframe size & Weight | ||||
Mainframe size |
4000*1600*1600 mm |
Weight |
2000 KG |
|
Area space |
8000*8000 mm |
|||
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
