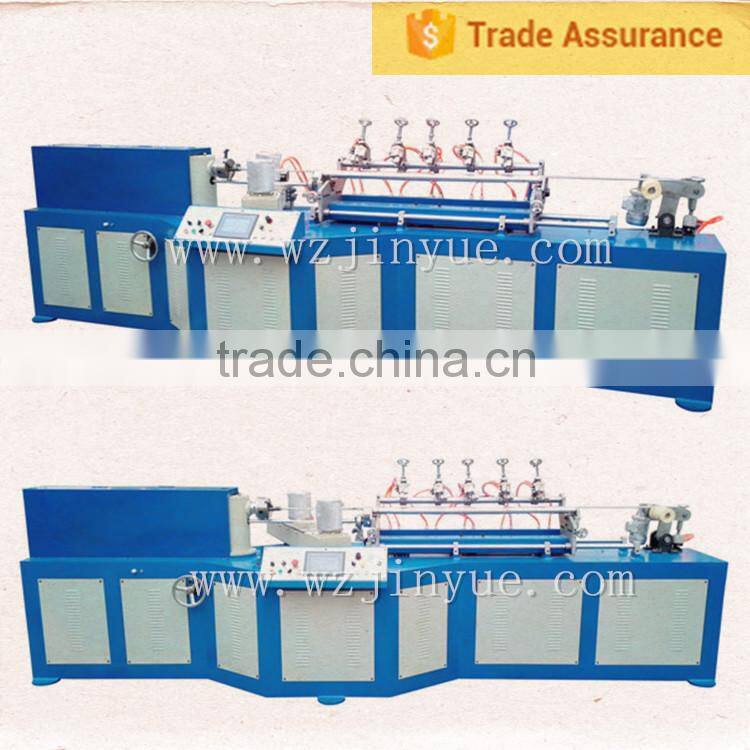

MC - 530 paper drinking straw making machine (100 pieces per minute)
USE

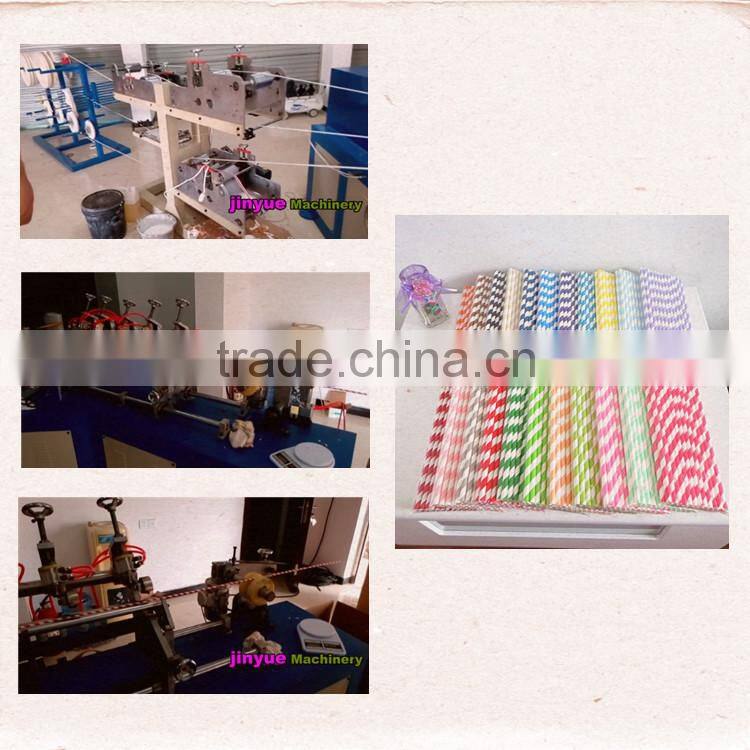

Suitable for small diameter (5-30 mm) paper tube production, such as paper straw, pen tube
FEATURE:
1. With online multi-cut blades, no need secondary cutting, save labor and time.
2. Paper tube diameter 5 mm stable production 20 m/min, it fill the blank of the industry and to be the world’s first.
Basic parameter:
•Tube I.D.: 5-30mm
•Tube wall thickness: 0.5-5mm
•Paper plies: 5 plies
•Paper gramme: 100-350GSM
•Machinery speed: 10-60m/min (depend on tube sizes, material quality and operator skill )
•In-line cut off length: 50-1000mm (or more)
Machine Consists:
Technical Parameter |
Control system |
|||
Number of roller |
1-5 layer |
PLC controller |
Delta DVP28SV |
|
Tube diameter |
5-30 mm |
Touch screen |
MCGS TPC7062 |
|
Tube wall-thickness |
0.5-2 mm |
Transducer |
YASKAWA 3.7 KW |
|
Core mould fixed way |
Flank chuck |
Electric part |
Schneider |
|
Winding head |
2 |
Single part |
Omron |
|
Cutting way |
Round knife |
Pneumatic part |
AIRTAC |
|
Gluing way |
Single / double sides |
Fix length way |
Optoelectronic switch/encode |
|
Operator |
1-2 person |
Equip device |
||
Winding speed |
3-30 m/min |
Paper shelf type |
Integral reel stand |
|
Speed control |
Transducer |
Auto fall tube shelf |
Have |
|
Driving system |
Glue shelf |
Have |
||
Main motor |
4 KW |
Belts |
2 |
|
Reducer type |
WPO120 JIACHENG |
Core mould |
2 |
|
Cutting motor |
Stepper motor |
Cut left-right control |
Z lead screw+ servo motor |
|
Glue pump |
1.5 KW |
|
||
Mainframe size & Weight | ||||
Mainframe size |
4000*1600*1200 mm |
Weight |
2000 KG |
|
Area space |
8000*6000 mm |
|||
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
