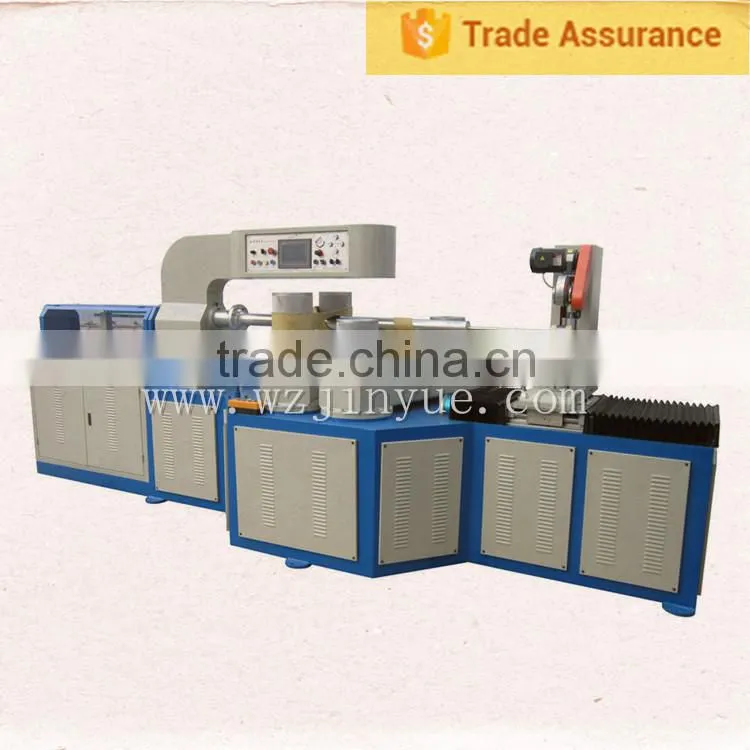

JY - HS120 manufacturer for spiral paper tube winding machine

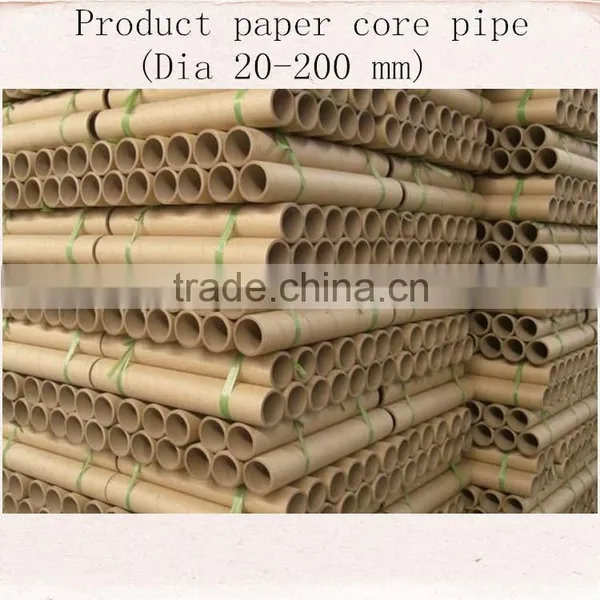

USE:
Apply to textiles, plastic, industrial pipe, such as fabric reel, chemical fiber pipe, airflow spinning
inner core, etc.
FEATURE:
1.Numerical control servo cutter device,high precision cutting;
2.Automatically cut,automatically fall pipe, automatically change speed and revert;
3.Computer PLC control, touch screen man-machine interface operation;
4.Round knife cutting, incision more smooth, performance more stable;
5.Stainless steel gluing box,with polyurethane scraper and high carbon steel plastic knife, durable in use;
6.Integration linkage device of integral paper reel stand and glue system, all electric regulation to feed paper;
7.With multifunction waxing paper device and auto stop when paper cut off.
Basic parameter:
•Tube I.D.: 25-200mm •Tube wall thickness: 1-10mm
•Paper plies: 16 plies •Paper gramme: 100-530GSM
•Machinery speed: 1-30m/min (depend on tube sizes, material quality and operator skill )
•In-line cut off length: 1000-4000mm (or more)

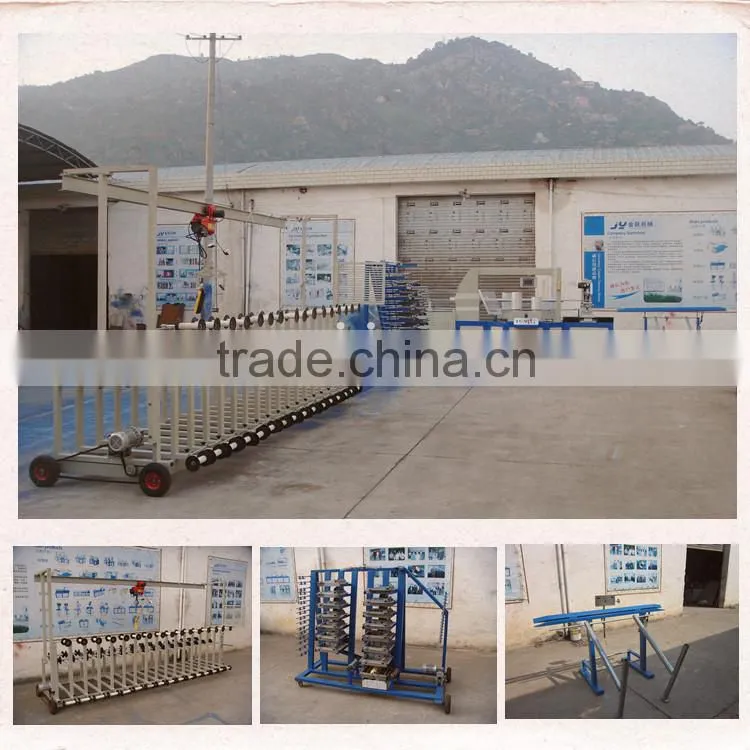

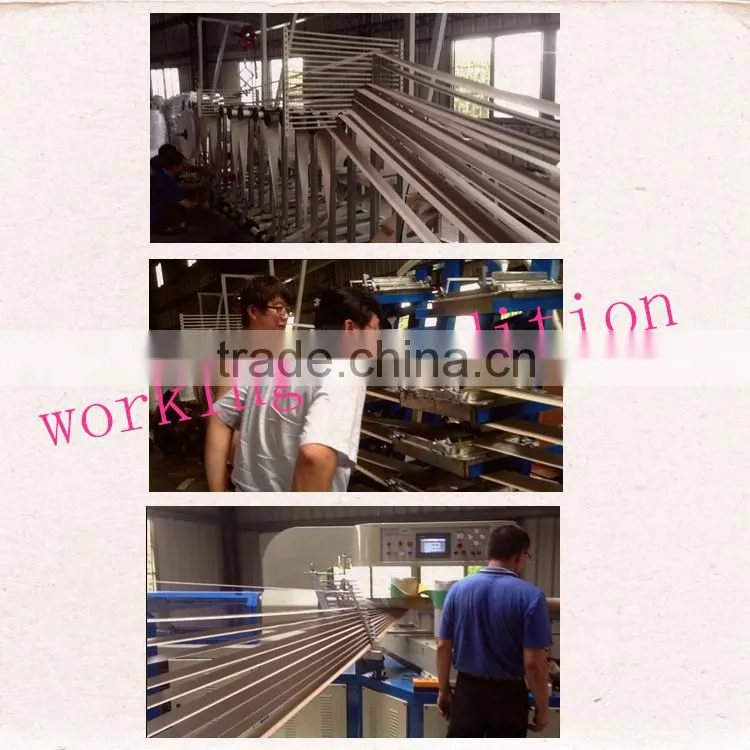

Machine Consists:
Technical Parameter |
Control system |
|||
Number of roller |
3-16 layer |
PLC controller |
Delta |
|
Tube diameter |
25-200 mm |
Touch screen |
MCGS |
|
Tube wall-thickness |
1-10 mm |
Transducer |
MITSUBISHI |
|
Core mould fixed way |
Flank chuck |
Electric part |
Schneider |
|
Winding head |
4 |
Single part |
Omron |
|
Cutting way |
Round knife |
Pneumatic part |
AIRTAC |
|
Gluing way |
Single / double sides |
Fix length way |
Optoelectronic switch/encode |
|
Operator |
1-2 person |
Equip device |
||
Winding speed |
3-30 m/min |
Paper shelf type |
Integral reel stand |
|
Speed control |
Transducer |
Auto fall tube shelf |
Have |
|
Driving system |
Glue shelf |
Have |
||
Main motor |
7.5 KW |
Belts |
4 |
|
Reducer type |
WPO155 |
Core mould |
2 |
|
Cutting motor |
Stepper motor |
Cut up-down control |
Y lead screw+ stepper motor |
|
Glue pump |
1.5 KW |
Cut left-right control |
Z lead screw+ servo motor |
|
Mainframe size & Weight | ||||
Mainframe size |
5200*2000*2000 mm |
Weight |
3000 KG |
|
Area space |
14000*60000 mm |
|||
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
