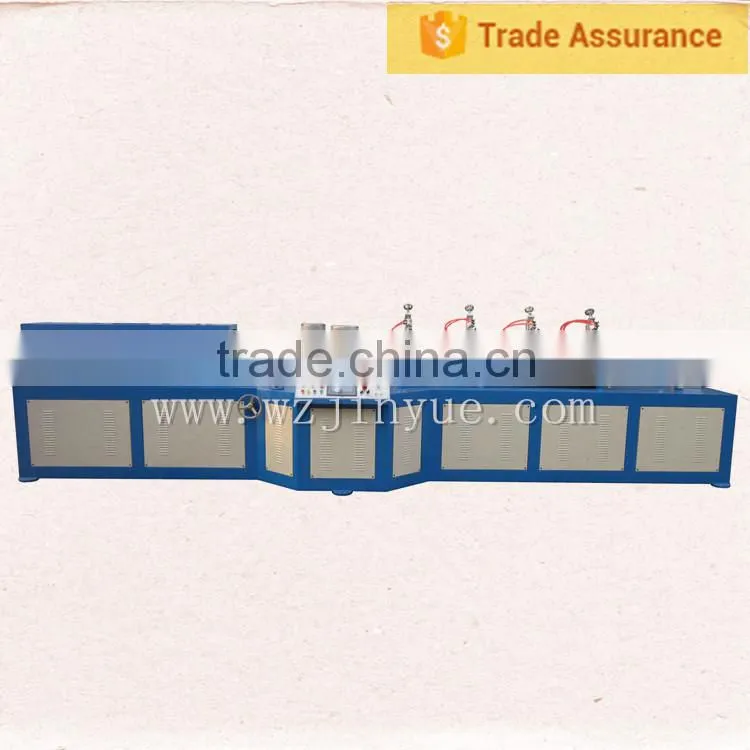

JY-MC100 automatic paper tube machine with good quality
USE:
Suitable for all kind of paper tube / core production,such as package tin,tea caddy,
food cans,wine cans,fireworks tube,calendar tube,fax paper core,etc.
Basic parameter:
•Tube I.D.: 15-100mm
•Tube wall thickness: 0.5-5mm
•Paper plies: 8 plies
•Paper gramme: 100-530GSM
•Machinery speed: 10-60m/min (depend on tube sizes, material quality and operator skill )
•In-line cut off length: 50-1000mm (or more)
Machine Consists:
.Paper tube auto load shelf
FEATURE:
1.With online mulit-cut blades,no need secondary cutting,save labor and time;
2.Stable production at the highest speed 60m/min,the first of its kind in China.
Technical Parameter |
Control system |
|||
Number of roller |
3-8 layer |
PLC controller |
Delta |
|
Tube diameter |
15-100 mm |
Touch screen |
MCGS |
|
Tube wall-thickness |
0.5-5 mm |
Transducer |
MITSUBISHI |
|
Core mould fixed way |
Flank chuck |
Electric part |
Schneider |
|
Winding head |
2 |
Single part |
Omron |
|
Cutting way |
Round knife |
Pneumatic part |
AIRTAC |
|
Gluing way |
Single / double sides |
Fix length way |
Optoelectronic switch/encode |
|
Operator |
1-2 person |
Equip device |
||
Winding speed |
3-60 m/min |
Paper shelf type |
Integral reel stand |
|
Speed control |
Transducer |
Auto fall tube shelf |
Have |
|
Driving system |
Glue shelf |
Have |
||
Main motor |
15 KW |
Belts |
2 |
|
Reducer type |
WPO155 |
Core mould |
2 |
|
Cutting motor |
Stepper motor |
Cut left-right control |
Z lead screw+ servo motor |
|
Glue pump |
1.5 KW |
|
||
Mainframe size & Weight | ||||
Mainframe size |
5500*1800*2000 mm |
Weight |
3000 KG |
|
Area space |
12000*60000 mm |
|||
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
