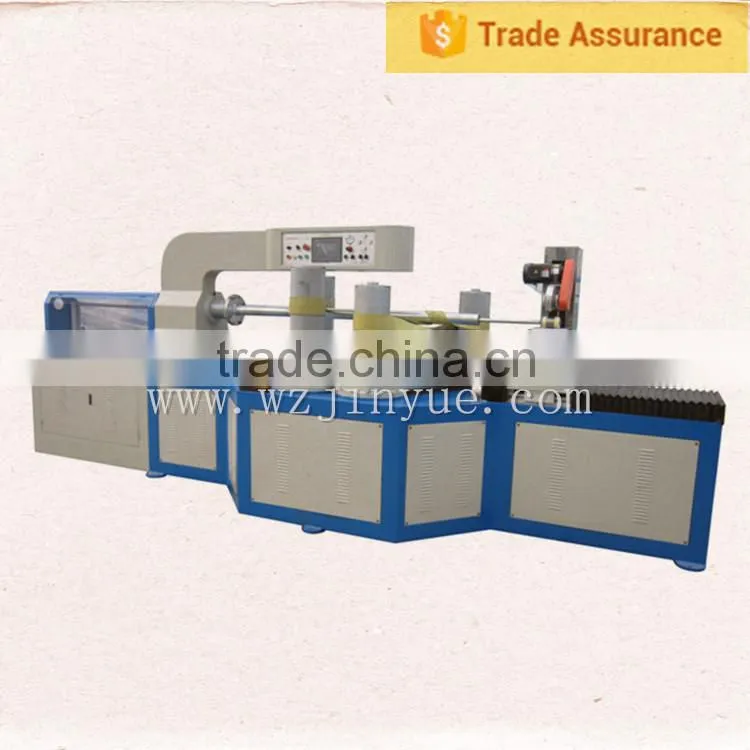

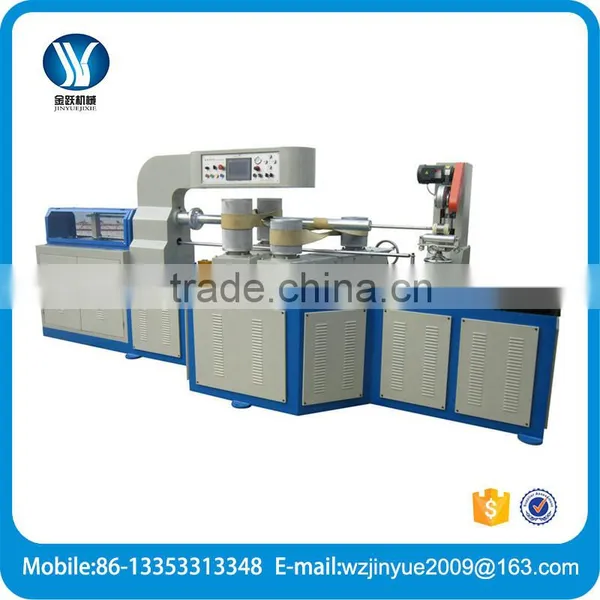

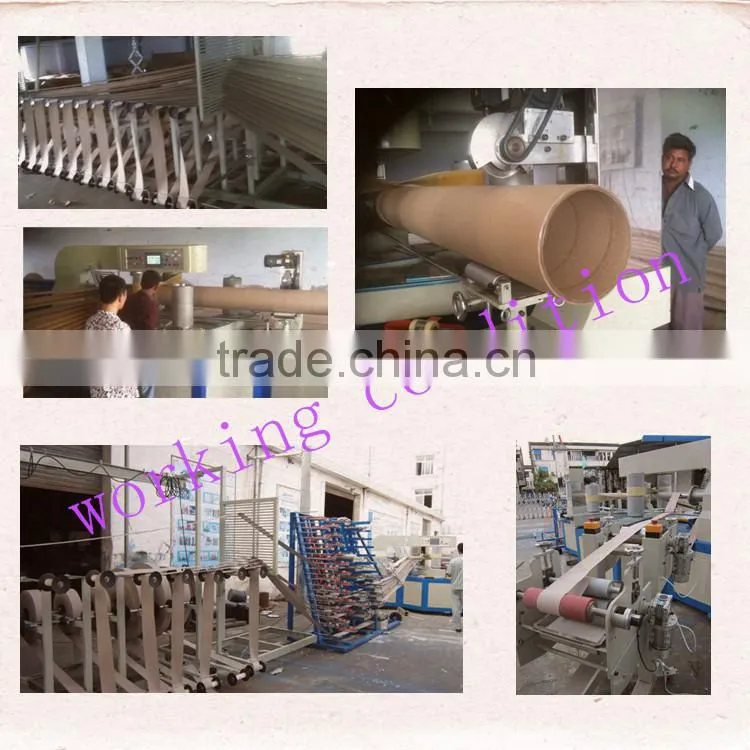

big diameter paper core tube winding machine
USE:

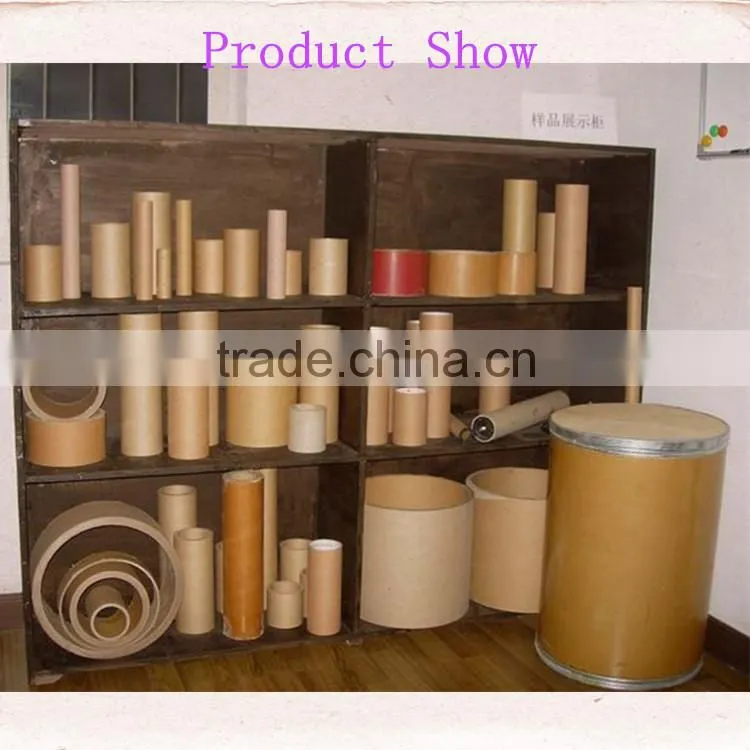

Used in paper industry and all kinds of thick tube production. Such as , roll paper core, BOPP film inner core and industrial pipe ,etc
FEATURE:
1. Numerical control servo cutter device, high precision cutting;
2. Automatically cut, automatically fall pipe, automatically change speed and revert;
3. Computer PLC control, touch screen man-machine interface operation;

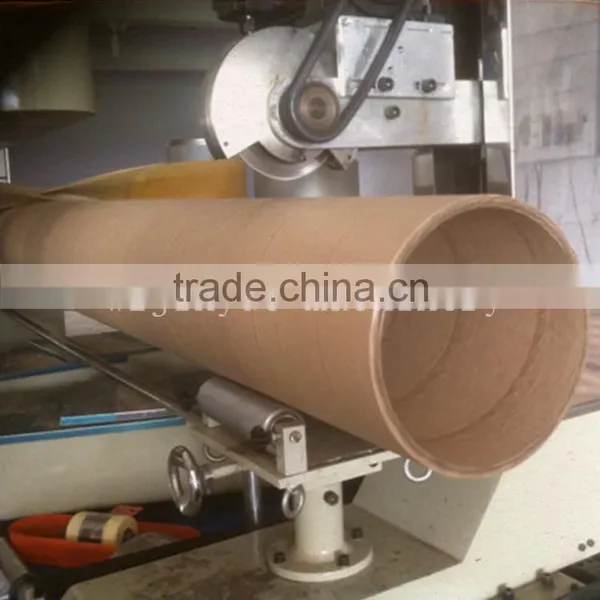

4. Round knife cutting, incision more smooth, performance more stable;

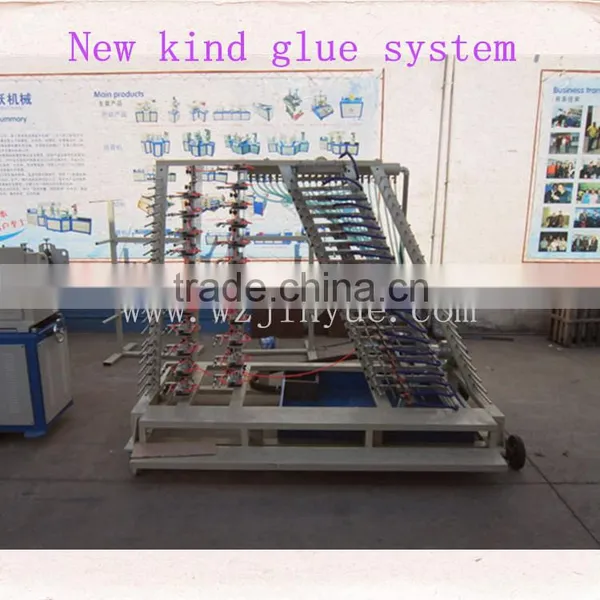

5. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;
6. Integration linkage device of integral paper reel stand and glue system, all electric regulation to feed paper;
7. With multifunction waxing paper device and auto stop when paper cut off.
Basic parameter:
•Tube I.D.: 25-300mm
•Tube wall thickness: 1-15mm
•Paper plies: 24 plies
•Paper gramme: 100-530GSM
•Machinery speed: 1-20m/min (depend on tube sizes, material quality and operator skill )
•In-line cut off length: 1000-4000mm (or more)
Machine Consists:

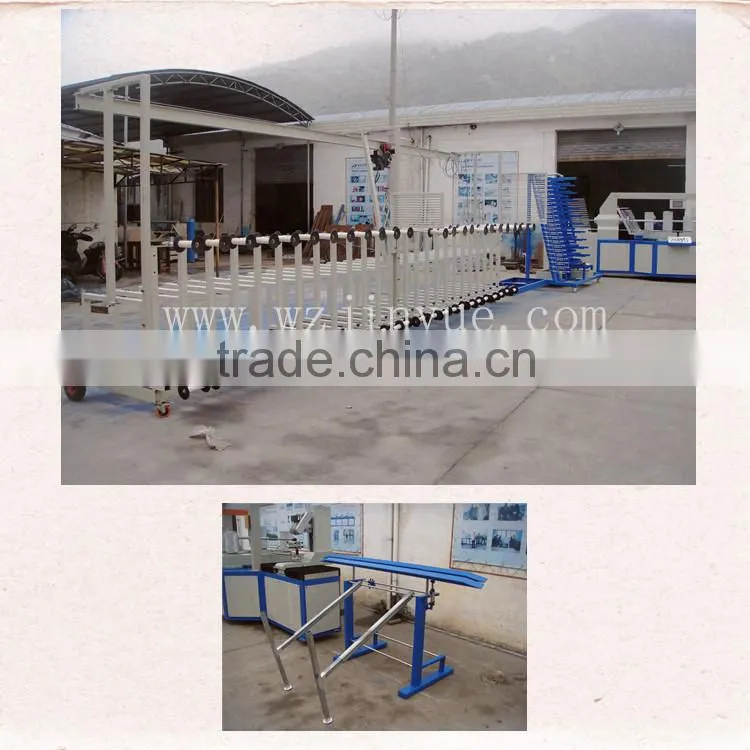

.Paper tube auto load shelf
Technical Parameter |
Control system |
|||
Number of roller |
3-24 layer |
PLC controller |
Delta DVP14SS2 |
|
Tube diameter |
25-300 mm |
Touch screen |
MCGS TPC7062 |
|
Tube wall-thickness |
1-15 mm |
Transducer |
YASKAWA 15 KW |
|
Core mould fixed way |
Flank chuck |
Electric part |
Schneider |
|
Winding head |
4 |
Single part |
Omron |
|
Cutting way |
Round knife |
Pneumatic part |
AIRTAC |
|
Gluing way |
Single / double sides |
Fix length way |
Optoelectronic switch/encode |
|
Operator |
2-3 person |
Equip device |
||
Winding speed |
3-30 m/min |
Paper shelf type |
Integral reel stand |
|
Speed control |
Transducer |
Auto fall tube shelf |
Have |
|
Driving system |
Glue shelf |
Have |
||
Main motor |
15 KW |
Belts |
4 |
|
Reducer type |
WPDO 200 |
Core mould |
2 |
|
Cutting motor |
Stepper motor |
Cut up-down control |
Y lead screw+ stepper motor |
|
Glue pump |
1.5 KW |
Cut left-right control |
Z lead screw+ servo motor |
|
Mainframe size & Weight | ||||
Mainframe size |
5500*2000*2000 |
Weight |
4000 KG |
|
Area space |
16000*10000 mm |
|||
1OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
