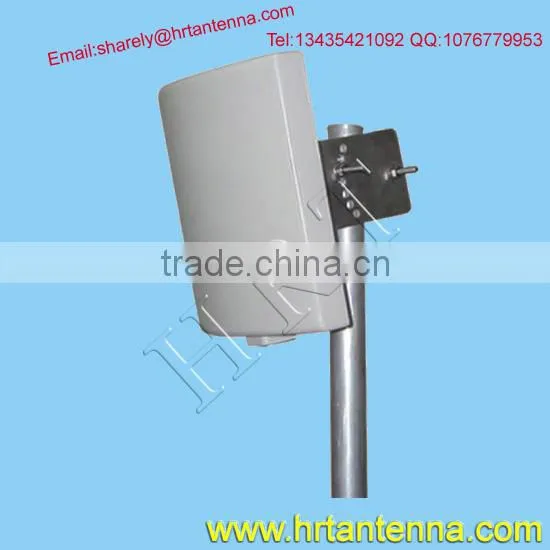

Help CenterHigh Performance 5.8GHz Wifi Panel Antenna TDJ-5800BKD18 Quality Choice
Related Products
-
Uhf 400-470mhz Antenna TQJ-400DUS$ 1 - 50MOQ: 1 Piece -
High Gain Wifi 5.8ghz Patch Antenna TDJ-5800BKD23NegotiableMOQ: 1 Piece
-
12dbi Omni Wifi Fiberglass Antenna TQJ-5800AH12US$ 4 - 50MOQ: 5 Pieces
-
5.8ghz Wifi Antenna 3dbi TQX-5800AH3NegotiableMOQ: 1 Piece
-
High Gain 5.8ghz Wifi 14dbi Patch Panel AntennaNegotiableMOQ: 1 Piece
Applcation:
1,support 802.11a
2,5.8GHz wlan wifi systems
3, wifi systems

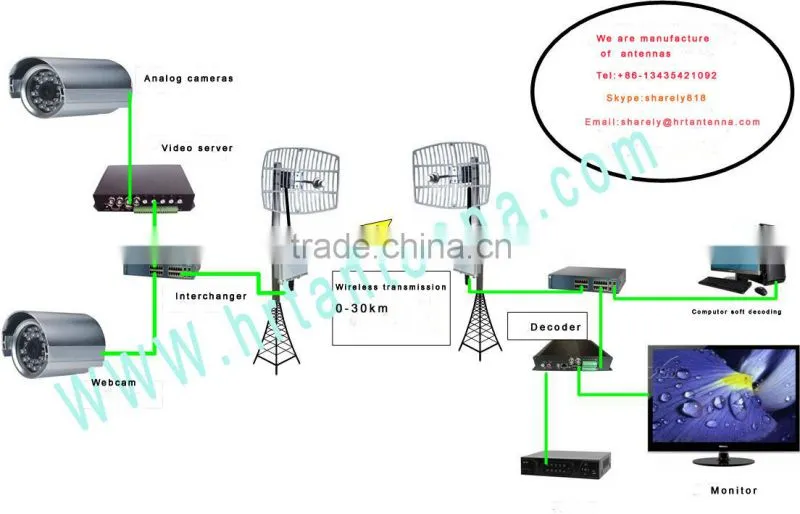

4, point to point systems or point to multi-point
Features:
1, good performance and high quality
2, high gain and low vswr
3,broadband frequency rang
4 light weight and small volume
Specification:
Catcgory |
Panel Antennas |
Model |
TDJ-5800BKD18 |
Frequency Range-MHz |
5725~5850 |
Bandwidth-MHz |
125 |
Gain-dBi |
18 |
Horizontal Beanwidth-° |
22 |
Vertical Beamwidth-° |
16 |
F/B Ratio-dB |
≥25 |
VSWR |
≤1.5 |
Nominal Impedance-Ω |
50 |
Polarization |
Vertical |
Maximum Power-W |
100 |
Dimensions-mm |
220X190X50 |
Weight-kg |
1.5 |
Connector |
N Female |
Mounting Mast Diameter-mm |
Φ40~50 |
Payment:
1,we support payment by western union , T-T , aliexpress ,and Credit card
2, 70% once order confirmation,balance 30% before shipment
Shipment:
1,We can ship goods according your requirement
2,We also support ship by DHL , UPS , TNT ,FEDEX ,EMS , China Post
Packing :
1,Packing with Export standard cartons ,
2,Using small box pack each goods ,good quality carton for outer packing
Delivery time:
1,3-5days after receiving your full payment for samples
2,Around 7-15 days after receiving your 70% advance payment for large quantities
