Application:
1,UHF systems
2,some special communication systems
3,point to mult -point systems
Features:
1,high performance
2,good quality and resist strong force
3,easy to install
Specification:
Category |
Omni Antennas |
Model |
TQJ-400D |
Frequency Range-MHZ |
400~480 |
Bandwidth-MHZ |
14 |
Gain-dBi |
5 |
Vertical Beamwidth-º |
25 |
VSWR |
≤1.5( Center Frequency≤1.2) |
Nominal Impedance-Ω |
50 |
Polarization |
Vertical |
Maximum Power-W |
100 |
Length-m |
1.2 |
Weight-kg |
1 |
Rated Wind Velocity- m/s |
60 |
Connector |
N female or customized |
Remarks |
Fiberglass |

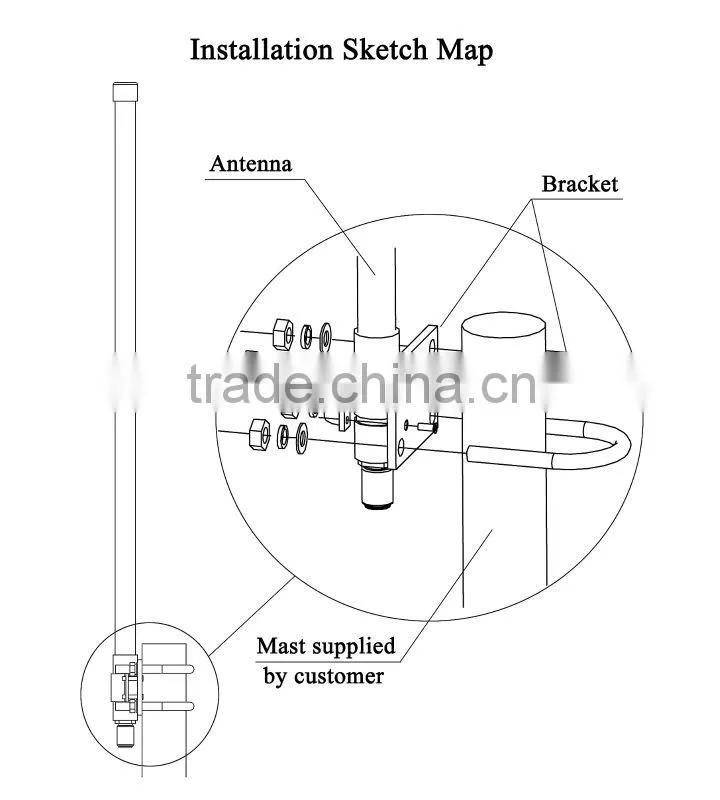

installution:
Our company are specialized various antennas, and our main products as follow:
1,2.4GHz/ 3.5GHz/ 5.8GHz Wifi/ WLAN/ WiMax/ MIMO antennas
2,VHF/ UHF/ DVB-T/ CDMA/ LTE/ GSM/ GPS/ RFID/ 3G antennas
3,Omni/ Yagi/ Panel/ Grid Parabolic/ Mobile/ Terminal/ Rubber/ Alarm/ Decorative antennas
4,Splitters/ Couplers/ Duplers/ Surge Protectors etc.
