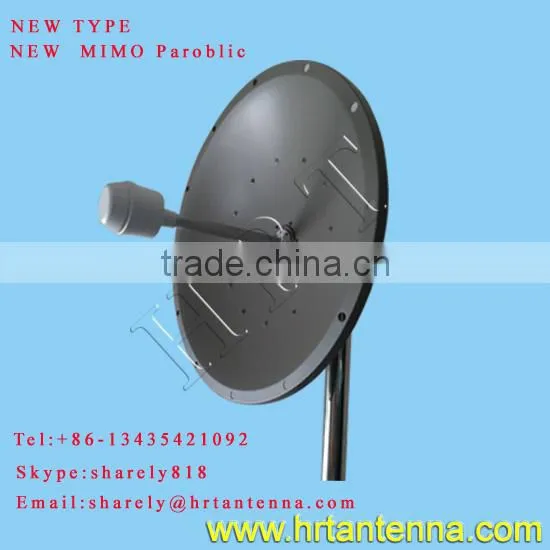

Help Center2.4GHz High Gain Outdoor Wifi Dish Antenna TDJ-2400D9-24*2
Related Products
-
Factory Production 2.4GHz Wifi MIMO Dish Antenna TDJ-2400D6-21*2US$ 70.00 - 76.00MOQ: 50 Pieces -
2400MHz 10dBi Outdoor Directional Mimo Panel Antenna TDJ-2400BP40VH10US$ 0.01 - 0.1MOQ: 2 Pieces
-
2400MHz 12dBi Outdoor Directional Mimo Panel Antenna TDJ-2400BP30VH12US$ 0.01 - 0.1MOQ: 2 Pieces
-
2400MHz 12dBi Outdoor Directional Mimo Panel Antenna TDJ-2400BP120VH12US$ 0.01 - 0.1MOQ: 2 Pieces
-
2400MHz 14dBi Outdoor Directional Mimo Panel Antenna TDJ-2400BP90VH14US$ 0.01 - 0.1MOQ: 2 Pieces
Application:
1,2.4GHz WIFI WLAN systems
2.2.4GHz 2483MHz frequency rang
3, wifi outdoor antenna design
Features:
1,New type MIMO antenna design
2, light weight and easy to install
3, Low VSWR and good performance
Specification:
|
Category |
parabolic Antennas |
|
Model |
TDJ-2400D9-24×2 |
|
Frequency range-MHz |
2400-2500 |
|
Bandwidth-MHz |
100 |
|
Gain-dBi |
24×2 |
|
Horizontal Beamwidth-° |
11 |
|
Vertical Beamwidth-° |
16 |
|
F/ B Rati-dB |
≥30 |
|
VSWR |
≤1.5 |
|
Nominal impedance-Ω |
50 |
|
Polarization |
Vertical |
|
Maximum power-W |
100 |
|
Dimensions-m |
Φ0.9 |
|
Weight-kg |
8 |
|
Rated Wind Velocity-m/s |
60 |
|
Connector |
N female×2 |
|
Mounting Mast Diameter-mm |
Φ35-50 |
Payment:
1,we support payment by western union , T-T , aliexpress ,and Credit card
2, 70% once order confirmation,balance 30% before shipment
Shipment:
1,We can ship goods according your requirement
2,We also support ship by DHL , UPS , TNT ,FEDEX ,EMS , China Post
Packing :
1,Packing with Export standard cartons ,
2,Using small box pack each goods ,good quality carton for outer packing
Delivery time:
1,3-5days after receiving your full payment for samples
2,Around 7-15 days after receiving your 70% advance payment for large quantities
