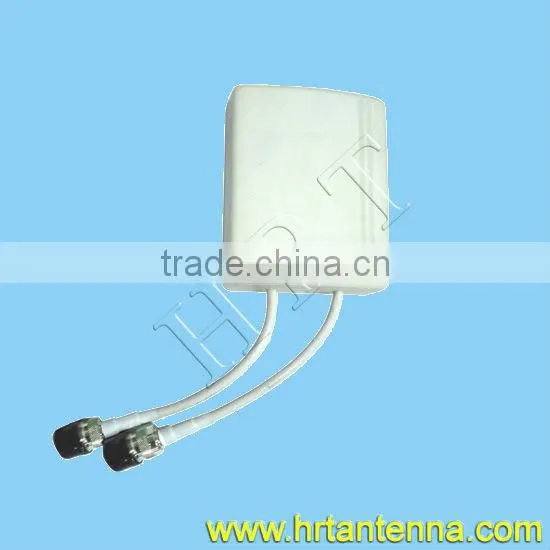

5.8GHz High Gain Mimo Antenna TDJ-5800BP30VH11
US$ 20.00 - 20.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HRT
Model Number:
TDJ-5800BP30VH11
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.4GHz High Gain Mimo Antenna TDJ-2400BP90VH15X2NegotiableMOQ: 1 Piece -
2.4GHz Panel Antenna,WiFi Antenna TDJ-2400BF12NegotiableMOQ: 1 Piece
-
2.4GHz/5.8GHz WiFi MIMO Antenna TDJ-2400BP65VH18US$ 1 - 100MOQ: 2 Pieces
-
Dual Polarization Panel Antenna TDJ-2400BP65VH16NegotiableMOQ: 1 Piece
-
2.4GHz MIMO Directional Panel Antenna TDJ-2400BP30VH12US$ 1 - 100MOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
HRT
Model Number
TDJ-5800BP30VH11
5.8GHz high gain mimo antenna
Features:
♦ Superior Performance
♦ Vertical Polarization
♦ All weather Operation
♦ Includes Mast Mounting Hardware
♦ Integral N-Female Connector
Applications:
♦ 5.1/5.5/5.8GHz WLAN system
♦ IEEE 802.11a Wireless LAN
♦ Public Wireless Hotspot
♦ Wireless Internet Provider "Cell" Sites
Specifications:
Model |
TDJ-5800BP30VH11 |
Frequency Range-MHz |
5725~5850 |
Bandwidth-MHz |
125 |
Gain-dBi |
2×11 |
Horizontal Beamwidth-° |
30 |
Vertical Beamwidth-° |
60 |
F/B Ratio-dB |
≥20 |
Isolation Between Pols -dB |
≥30 |
VSWR |
≤1.5 |
Nominal Impedance-Ω |
50 |
Polarization |
vertical and horizontal |
Maximum Power-W |
50 |
Dimensions-mm |
105×85×35 |
Weight-kg |
0.4 |
Rated Wind Velocity-m/s |
60 |
Connector |
2×N female |
Mounting Mast Diameter-mm |
Φ35~50 |
