5ghz Dual Polarization Patch Antenna
US$ 1 - 100
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HRT
Model Number:
TDJ-5800BP30VH11
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5ghz Mimo Antenna/wifi Outdoor Panel AntennaUS$ 1 - 100MOQ: 2 Pieces -
2400-2500 Mimo Antenna TQJ-2400AHx2US$ 1 - 50MOQ: 2 Sets
-
Outdoor Mimo Omni Antenna TQJ-2400AHx2US$ 1 - 50MOQ: 2 Pieces
-
Wireless Mimo Outdoor AntennaUS$ 1 - 100MOQ: 2 Pieces
-
2x2 Mimo Panel Antenna TDJ-2458BP120D10x3US$ 1 - 100MOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
HRT
Model Number
TDJ-5800BP30VH11
5ghz dual polarization patch antenna
Features:
♦Superior Performance
♦Vertical Polarization
♦All weather Operation
♦Includes Mast Mounting Hardware
♦Integral N-Female Connector

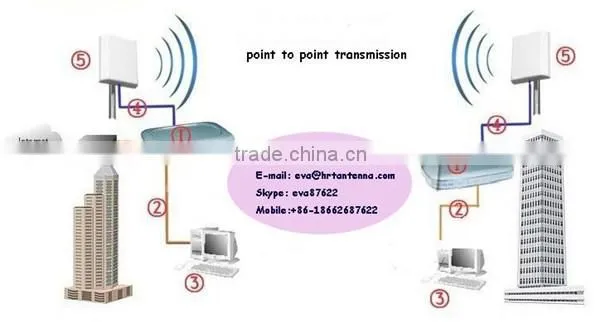

Applications:
♦5.1/5.5/5.8GHz WLAN system
♦IEEE 802.11a Wireless LAN
♦Public Wireless Hotspot
♦Wireless Internet Provider "Cell" Sites
Specification:
Model |
TDJ-5800BP30VH11 |
Frequency Range-MHz |
5725~5850 |
Bandwidth-MHz |
125 |
Gain-dBi |
2×11 |
Horizontal Beamwidth-° |
30 |
Vertical Beamwidth-° |
60 |
F/B Ratio-dB |
≥20 |
Isolation Between Pols -dB |
≥30 |
VSWR |
≤1.5 |
Nominal Impedance-Ω |
50 |
Polarization |
vertical and horizontal |
Maximum Power-W |
50 |
Dimensions-mm |
105×85×35 |
Weight-kg |
0.4 |
Rated Wind Velocity-m/s |
60 |
Connector |
2×N female |
Mounting Mast Diameter-mm |
Φ35~50 |
