Tebeng Brand High Quality wear-resisting Hydrocyclone
Hydrocyclone —Product Introduction
Hydrocyclone — Product Improvement
Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency
Hydrocyclone — Advantages
The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification.
The rational length proportion of column and cone and reasonable insert depth of vortex finder
Wear – resistant rubber as liners prolongs the service life by 2-5 times
Hydrocyclone — Product Features

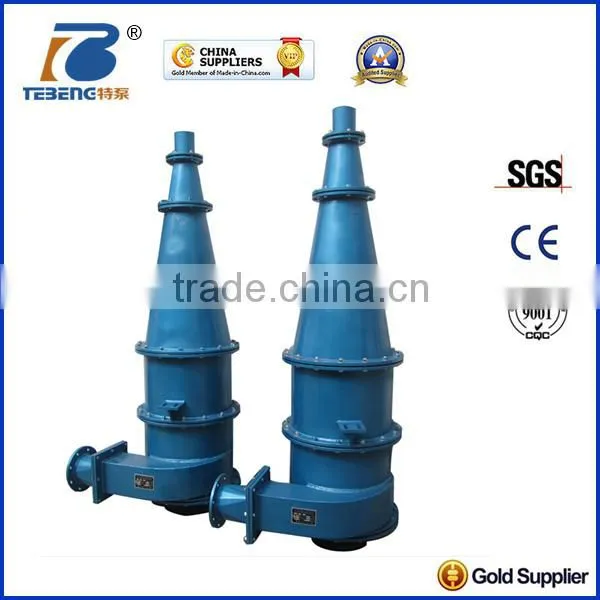

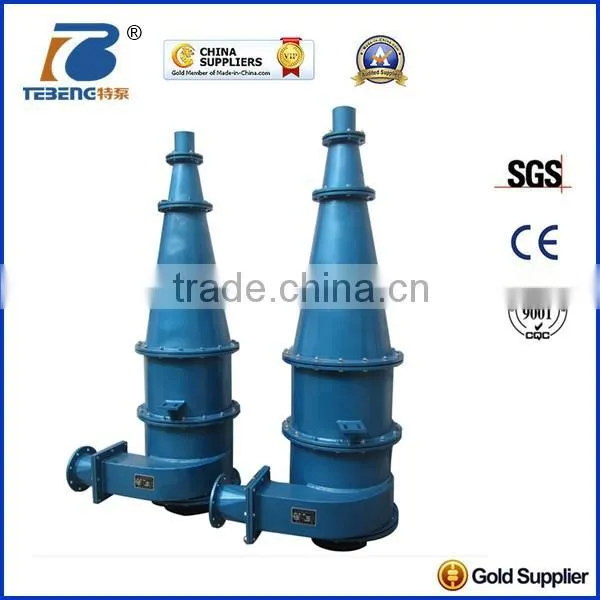

Tebeng brand FX series Hydrocyclone
Tebeng hydrocyclone with unique structure design adopts the composite structure of multi section type column body. It changes the height of column according to the need. If the height increased, overflow fineness increase up to about 10 μ m diameter. Each diameter has unique cylinder length and cone angle, which can achieve the maximum tangential velocity at the minimum total cyclone length, so as to increase centrifugal force and improve the classification efficiency.
Hydrocyclone — Work Principle
China Supplier Sale More High Quality Hydrocyclone :

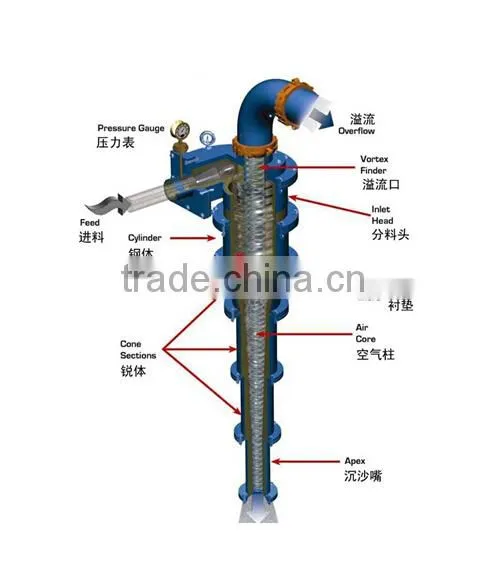

The working principle of Tebeng hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Working modes of Tebeng hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.
Hydrocyclone — FX series Technical Parameters
Specification |
Capacity |
Separation Particle Size |
Diameter of Overflow Outlet |
Diameter of Spigot |
Inlet Pressure |
150 |
10-23 |
25-74 |
30-50 |
8-22 |
0.060-0.15 |
200 |
17-38 |
28-80 |
40-65 |
16-32 |
0.060-0.15 |
250 |
24-53 |
30-82 |
65-100 |
16-40 |
0.060-0.15 |
300 |
40-100 |
36-90 |
65-120 |
20-40 |
0.060-0.15 |
350 |
56-118 |
40-100 |
80-120 |
30-70 |
0.060-0.15 |
375 |
74-157 |
42-105 |
90-135 |
30-70 |
0.060-0.15 |
450 |
90-192 |
44-110 |
100-150 |
30-70 |
0.060-0.15 |
500 |
128-300 |
50-115 |
130-220 |
35-100 |
0.060-0.15 |
610 |
200-468 |
57-125 |
160-260 |
65-110 |
0.060-0.15 |
660 |
237-524 |
60-130 |
180-280 |
80-150 |
0.060-0.15 |
Certificate
If you insterest of our Hydrocyclone,Pls contact me freely.
