Shipping Port Container Crane 120t

Shipping Port Container Crane 120t thumbnail-1
Shipping Port Container Crane 120t thumbnail-2
Shipping Port Container Crane 120t thumbnail-3
Shipping Port Container Crane 120t thumbnail-4
Shipping Port Container Crane 120t thumbnail-5
Shipping Port Container Crane 120t photo-1
Shipping Port Container Crane 120t photo-2
Shipping Port Container Crane 120t photo-3
Shipping Port Container Crane 120t photo-4
Shipping Port Container Crane 120t photo-5
US$ 300,000 - 1,200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Widely used at open ground and warehouse and so on.
Rated Loading Capacity:
10~160t
Contact Supplier Request Quote Chat Now
Xinxiang Kehao Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Widely used at open ground and warehouse and so on.
Rated Loading Capacity 10~160t
Rated Lifting Moment Different
Max. Lifting Load 50/10ton
Max. Lifting Height 12m
Span 18m 22m 26m 30m 35m
Place of Origin Henan, China
Brand Name Kehao
Model Number KH208
Certification CE/ISO
Warranty 12 months from Installation
After-sales Service Provided Engineers available to service machinery overseas

  Shipping Port Container Crane 120t





                                       Shipping Port Container Crane 120t





To Lift the Dream



As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse.



To Lift the Dream, this is our purse. The trade consultant would be the super robot of your life, career, and your dream.





A. Product Specification

Name: Shipping Port Container Crane 120t

1.Loading capacity: 80t ( 20m outreach)
2.Fly jib load: 10t
3. Outreach: 18m to 50m
4. Load capacity: 25t ( 50m outreach)
5. Lifting height: 45m above rail, 10m below rail.
6. Distance between the rails: 9m( 5m-16m)
7. Type: four-bar portal boom or Single girder
8. Structure: box type boom or frame type
9.Industry working voltage: Local (User)
10.Color: Red, yellow, white or blue etc
11.Power Supply: 3-Phase
12.Working duty: A7
13.Standrad: GB/T 24001-2004
14.Steel track recommended: P48



Delivery Time

  Shipping Port Container Crane 120t :

180days for production, the port loading and custom cost about 6 days,
the sea transportant takes 15days to 35days, the loading, transport and installation
takes about 10days to 20days.

Total time: 210days to 241days



B. Parameter & Instruction
                                        Product Parameter of 80t Portal Beam Crane
Product Name Unit Parameter
Working Classification                       A8
Load Capacity t 80
Outreach Range Max range m 50
Min range m 18
Lifting Height Above rail m 45
Below rail m 10
Working Speed Lifting speed m/min 60
Derricking speed m/min 50
Slewing speed R/min 1.5
Traveling speed m/min 26
Motor Syetem Lifting motor                   YZP355M2-10   220KW×2
Derricking motor                 YZP250M-8       37KW
Slewing motor           YZP225M-8 (Vertical)    37KW×2
Traveling motor             YZP160L-6      11KW×4
Rails Distance m 9
Base Width m 9
Traveling Wheel Quantity Pcs 24(Driving wheel is 12pcs)
Max Wheel Pressure KN ≤250
Max Wind Pressure(Working) N/m2 250
Slewing Radius of turntable end m <7.8
Total Motor Capacity KW 562
Power Syetem Cable drum, three phase four wire system,  AC380v  50Hz






C. Port and Shipyard Container Crane Pictures

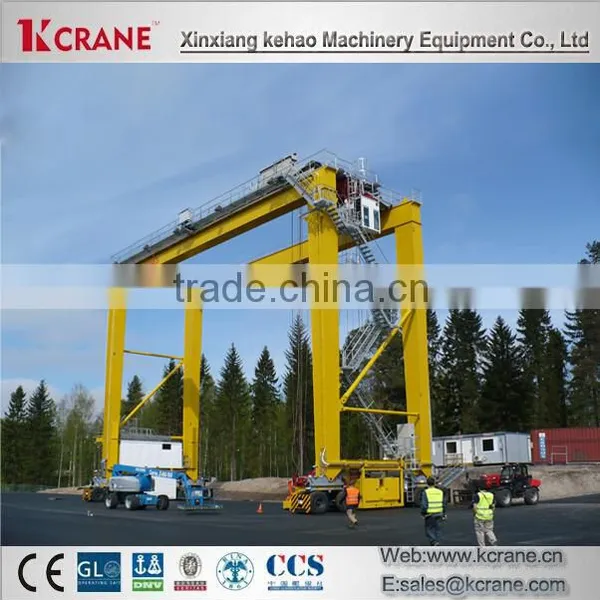

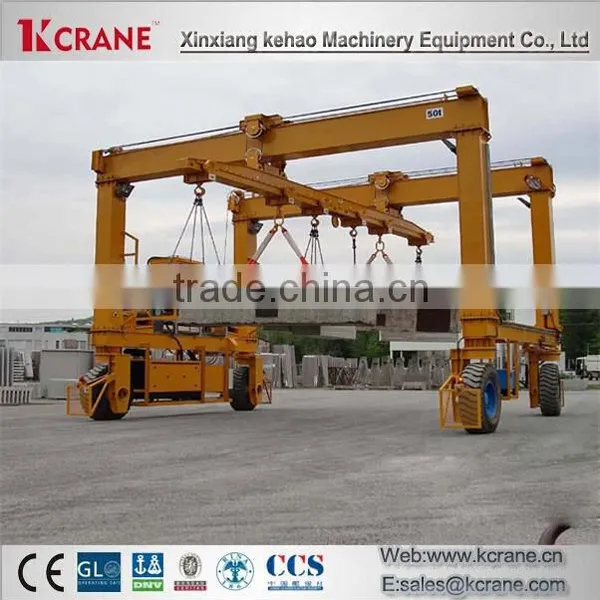

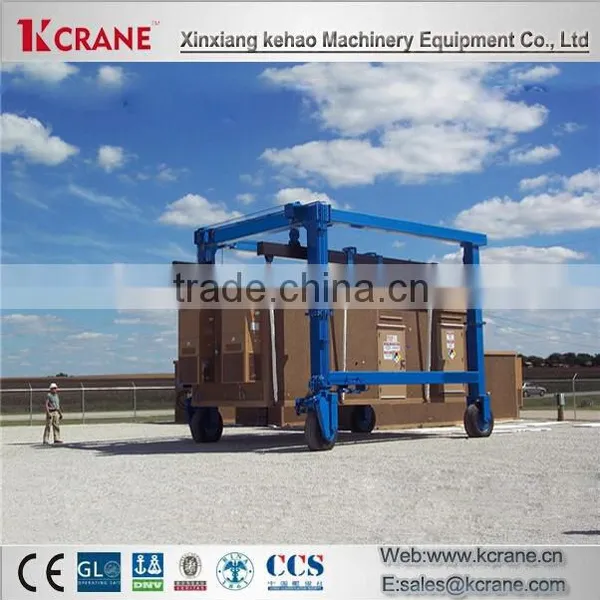

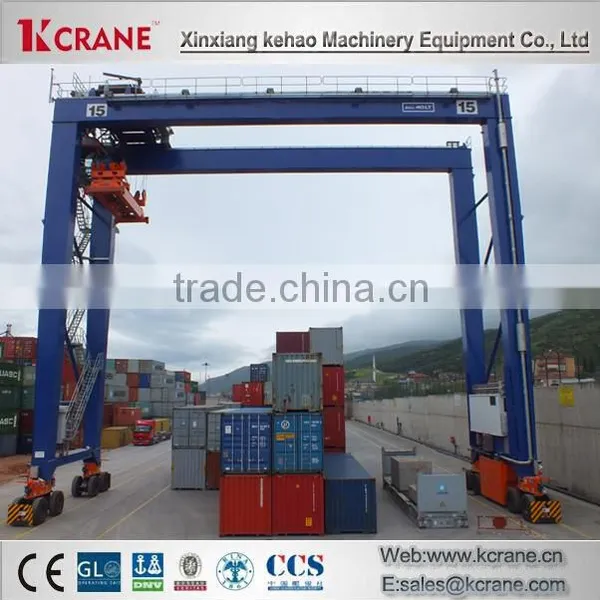

Product one: Rubber tyre container gantry crane (RTG container crane)

Rubber tyre container gantry crane applies to international standard container transporting, loading and unloading at the

container yard and railway container depots, use high-quality electronic components which improve the efficiency and safety of the whole machine. Electrical system uses PLC frequency adjustment which can easily control every mechanism.



Shipping Port Container Crane 120t

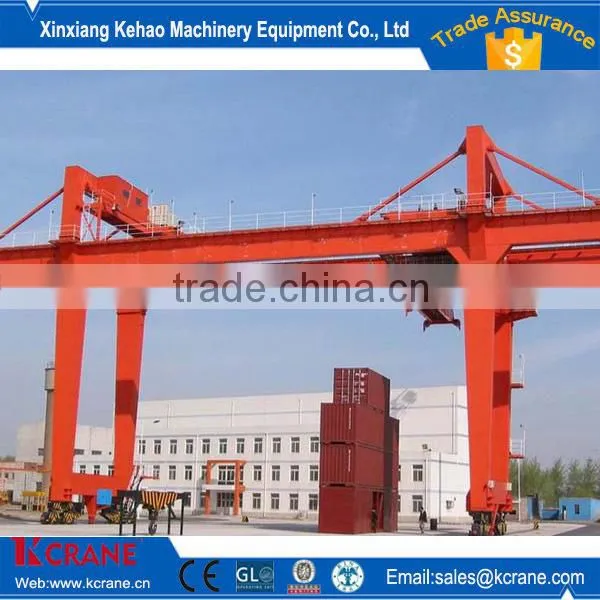

Product two: Rail mounted container gantry crane (RMG container crane)

Rail mounted container gantry crane is one of gantry crane with large hoisting capacity,multiple functions and high efficiency, dedicated to subsection transportation of large ship, butt jointing, and overturning on dock or slipway.

applies to international standard container transporting, loading and unloading at the container yard and railway container depots.

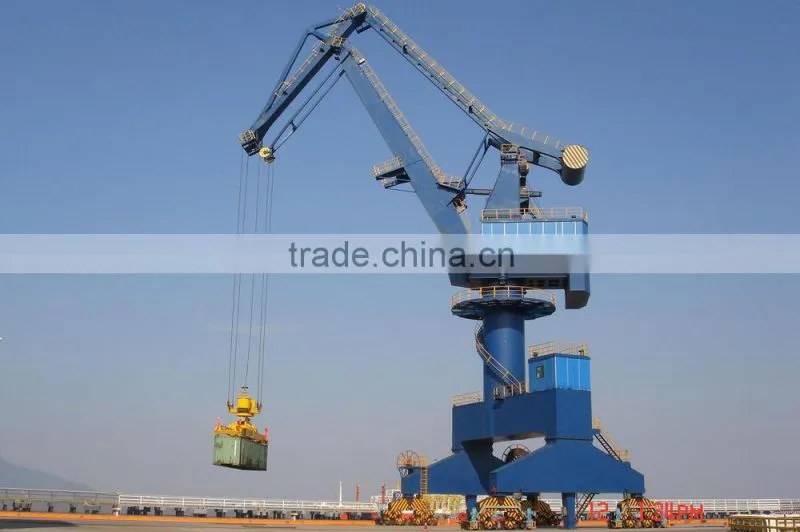

Project three: Portal container gantry

Harbor portal cranes are mainly applied to harbors, ships at wharfs and vehicles for mechanized handling and

transshipment, so as to improve the handling efficiency and speed up the turnover of ships and vehicles.

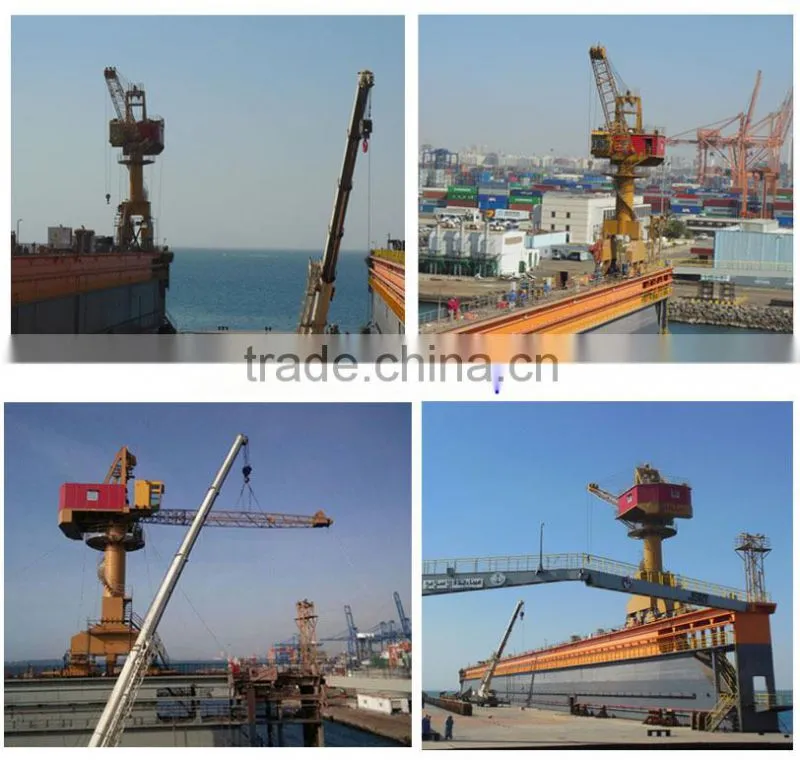

D.  Case one: Portal container crane in using



Shipping Port Container Crane 120t

Shipping Port Container Crane 120t

Shipping Port Container Crane 120t



E.  After Sales Services:



1.14 months warranty when products leave the factory, or 12 months warranty after installation and

     commissioning in addition to the human damage factors.

2. 2 years spare-parts provided for better maintenance.

3. Professional technical staffs provide installation, commissioning and training services.

4. Delivery with English user manual, parts manual, product certification and other relevant

    certificates.

5. Technical advisory for any time and Engineers available to service machinery overseas.



F.  To Lift the Dream



As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse.

Sometimes we want to own a super robot, because the load is too heavy to bear, sometimes in life,
sometimes in career. So we have to sigh for the dream.

To Lift the Dream, this is our purse. The trade consultant would be the super robot of your life, career, and your dream.

Shipping Port Container Crane 120t





G.  Consult Guide



Estimate Parameter:
1. Lifting Load capacity (max goods weight)
2. Span or Girder length
3. Lifting Height ( how height?)

Or Just tell me where you will use, then it is my turns.



                                                I am in China, but serve you in the world.
