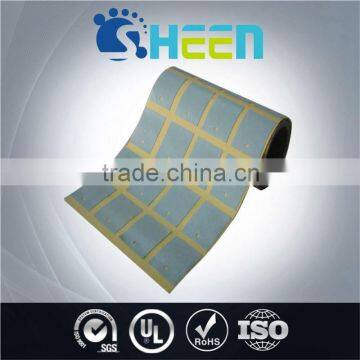

Heat Dissipation Insulator Thermal Conductivity For Automotive Electronics
- 2000 Square Meter / Square Meters per Month
- shenzhen
- Credit Card
You May Like
-
Fill The Air Gaps Sheets Foam Insulation For Motor Controls
-
Fill The Air Gaps Thermal Insulator For High Pressure Interface
-
Thermal Conductive 4X8 Sheet Insulation For Power Semiconductors
-
Non-Toxic Thermal Insulators Materials For Motor Controls
-
Harmless Thermal Insolation For High Pressure Interface
-
Heat Dissipation Thermal Conductors Insulators For Power Supply
Product Details
| Place of Origin | Guangdong, China | Brand Name | SHEEN | |
| Model Number | SC800FG | Type | Insulation Sheet | |
| Material | Composite Polymer | Application | High Voltage | |
| Tensile Strength | 450 |
Product Description
Heat Dissipation Insulator Thermal Conductivity For Automotive Electronics
| Product Information |
| Product Name | Heat Dissipation Insulator Thermal Conductivity For Automotive Electronics |
| Item No. | SC800FG |
| Color | Gray |
| Construction & compostionn | Silicone elastomer |
| Thickness (inch/mm) | 0.2mm |
| Specific Gravity, (g/cc) | 2.2 |
| Hardness, (Shore A) | 45 |
Tensile Strength, (psi) | 450 |
| Continuous Use Temp °F/ °C | (-58 to 356°F)/ (-50 to 180°C) |
| Dielectric Breakdown Voltage,(V) | >6000 |
| Dielectric Constant, (1000 Hz) | 5.5 |
| Volume Resistivity ohm-meter | 5.0 X 1013 |
| Fire rating | 94 V0 |
| Thermal Conductivity,(W/m-K) | 0.8 |
| Configurations Available | Can be die-cut into specific dimensions; - Adhesive coatings are optional |
| Introduction | The SC series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction. |
| Features and Benefits | - 0.8W/mK thermal conductivity - Electrically isolating - High breakdown voltage - ROHS compliant -High tensile strength |
| Typical Applications Include | - Power supply - Automotive electronics - Motor controls - Power semiconductors - High pressure interface |
| Product Display |
| Hot Sale |
| " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad > | " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape > | " href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV > | " href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease > |
| " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials > | " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug > | " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators > | " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets > |
| " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone > | " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics > | " href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive > | " href="http://sheen.en.china.cn/productlist.html" target="_blank">More products > |
| Product Advantage |
|
|
|
|
Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid. |
| Company Overview |
| Certificate |
| Contact |
| We can make many specifications according to your request! For more information. Please contact us. | ||||||||||
|
| FAQ |
1. What are your main products? We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. 2. What about the product quality and which certificate do you have? We have UL certificate and RoHS certificate. 3. How long does it take to deliver after order? For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements. 4. What about your after-sale service? We fully guarantee our product quality and will provide free technical guidance on operations. |
