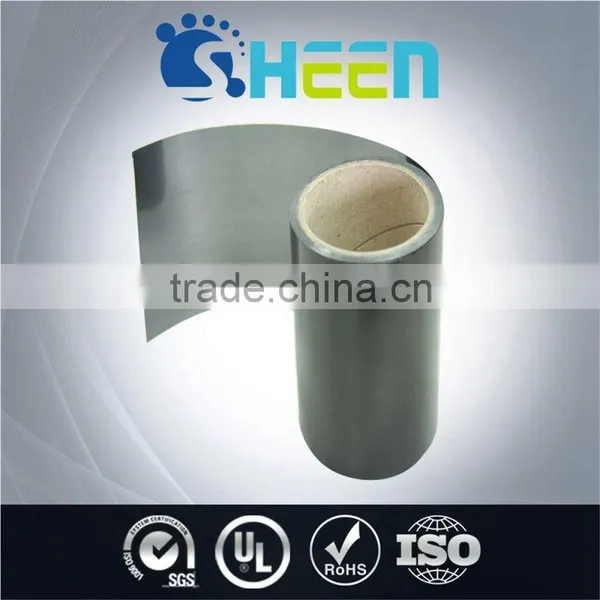

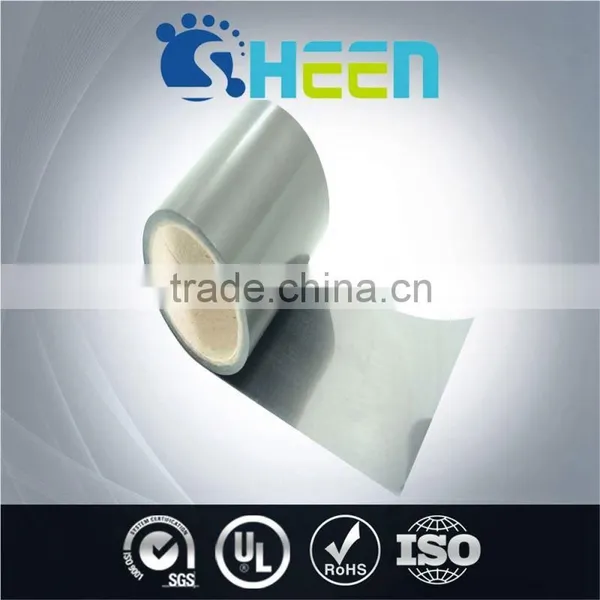

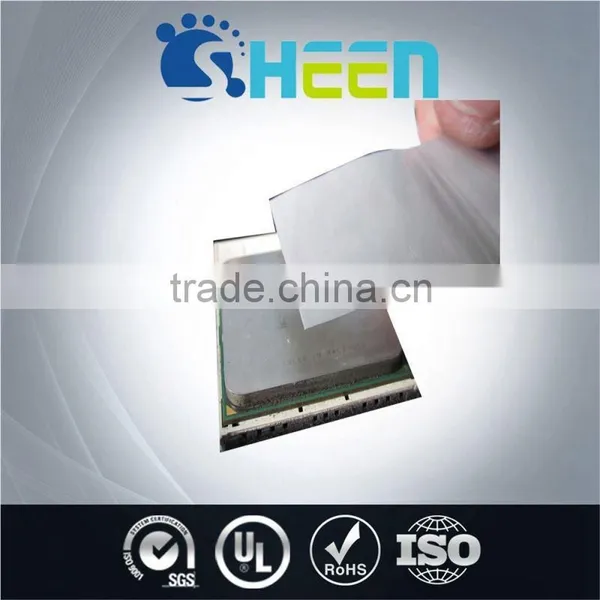

Flexible Graphite Sheet For Laptop Heat Sink For LED

FOB Price

USD $33.6 - $70 / Square Meter

100 Square Meters(Min.Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SHEEN
Model Number	SR600-16	Type	Composite Sheet
Application	LED lighting -Notebook an desktop pc -CPU modules -Microprocessors ...	Thickness	0.005inch~0.04inch(0.127~1.016MM)
Grade	Industrial Grade	C Content (%)	99%

Product Description

Flexible Graphite Sheet For Laptop Heat Sink For LED

Product Information

Product Name	Flexible Graphite Sheet For Laptop Heat Sink For LED
Item No.	SR600-16
Thickness (inch/MM)	0.005”~0.04″ (0.127~1.016MM)
Thickness Tolerance	± 10%
Material	Natural Graphite with Additive Polymer
Typical Thermal Conductivity	16.0W/m-K
Tensile Strength(1400kpa)	215psi	ASTMF-152
Thermal Resistance (in2 °C/W)@100psi	0.029
Length	No Maximum
Dimensions	Die-cut into specific dimensions
Electrical Performance	Electric
Adhesive coatings	Optional
Certificate	ROHS compliant
Introduction	The SR600-16 are high-performance and heat-conductive interface materials with the reasonable prices.They can be used in applications where no requirement for electric insulation is specified.The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.
Features and Benefits	16W/mK thermal conductivity - Electric - Adhesive coatings are optional - Can be die-cut into specific dimensions -ROHS compliant
Typical Applications Include	-LED lighting -Notebook an desktop pc -CPU modules -Microprocessors -Hot and Cold plates -TelecoMMunication Hardware

Product Display

Hot Sale

" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad >	" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape >	" href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV >	" href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease >
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials >	" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug >	" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators >	" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets >
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone >	" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics >	" href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive >	" href="http://sheen.en.china.cn/productlist.html" target="_blank">More products >

Product Advantage

Fill the air gap between heating devices and heat sink or metal base
Improve the efficiency and service life of heating components

Ultra-strong adhesion to various surface
High thermally conductive acrylic adhesive
Double-sided pressure-sensitive adhesive tape
Effectively replace lubricating grease and mechanical fastening

With good adhesion to most metal, glass, alloy and plastic materials, etc.
Solidified under room temperature
With good electrical insulation and weather resistance

No preheating process is required for the product
Excellent adhesion and sealing strength with good conductivity
Suitable for auto-dispensing and screen printing

Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid.
