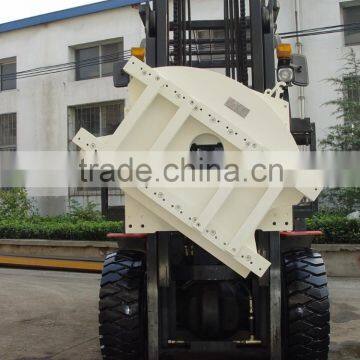

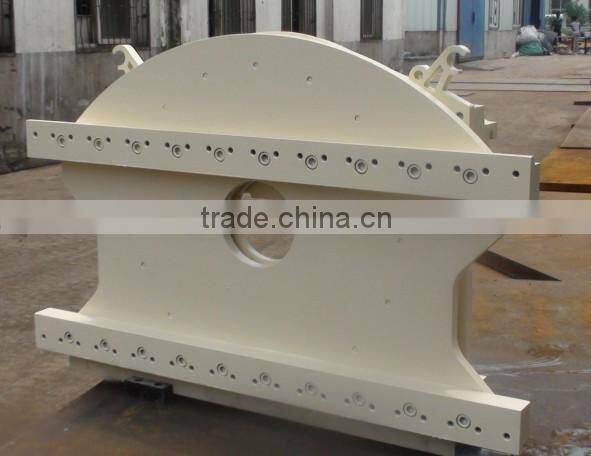

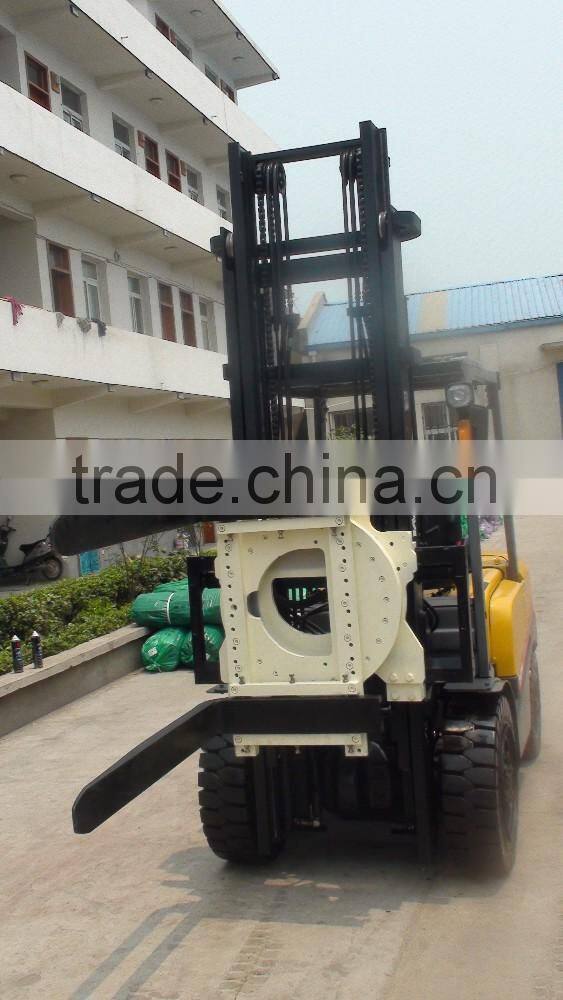

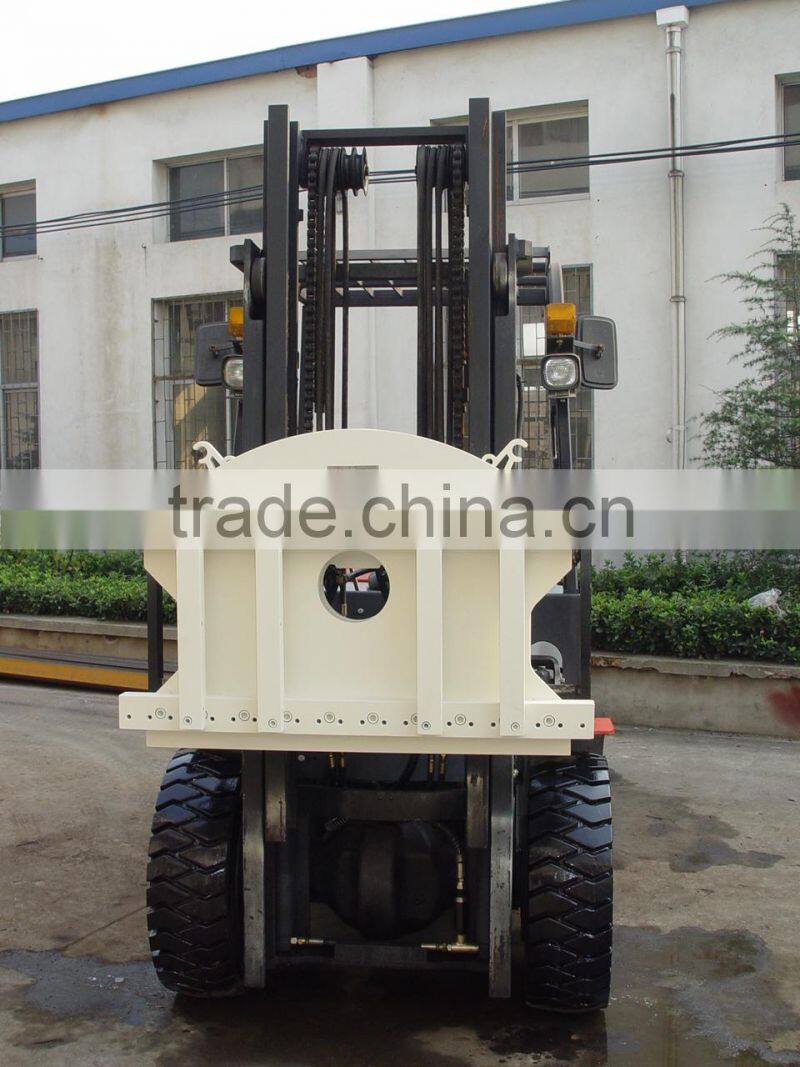

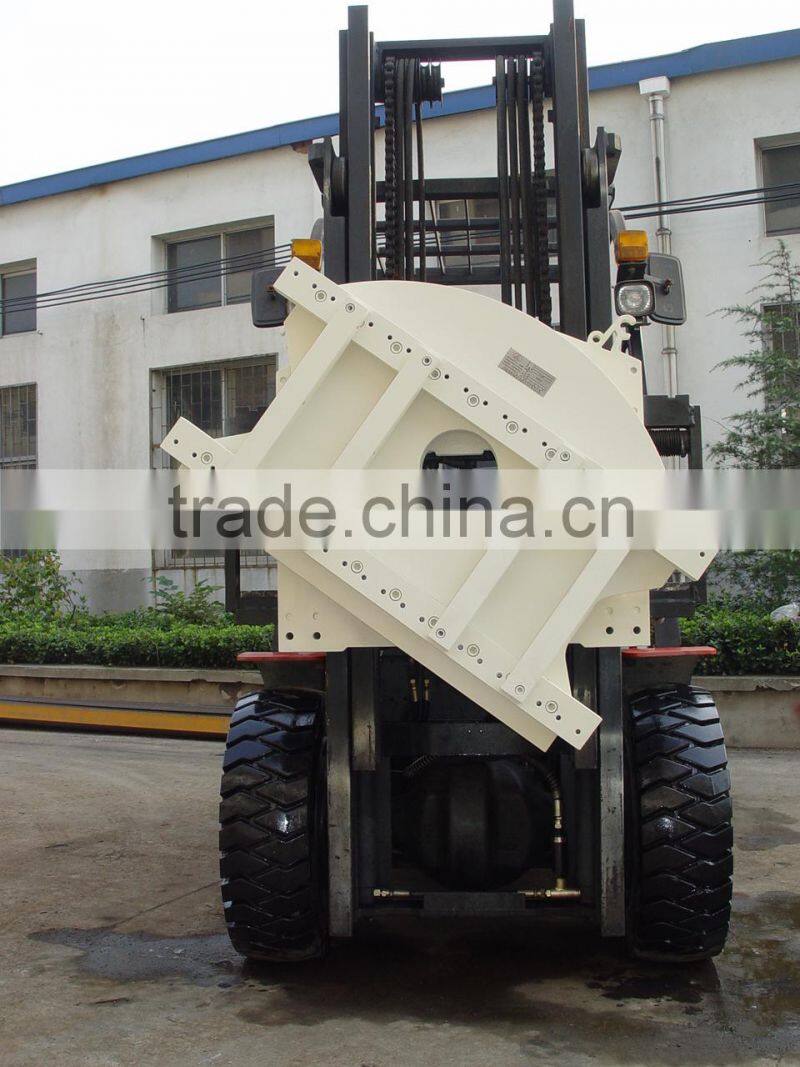

Hydraulic forklift attachment rotator
Functions & Application
Widely used in food, chemical, materials recycle, smelting & casting industries, etc. and the sites need rotating to tip and mix the buckets or boxes. It can tip and change the goods quickly, and then restore the fork to the original position immediately.
Features:
- High strength structural design, meet high duty continuous operation;
- Excellent operation view, safe and reliable;
- Strong rotating driving torque achieved the stable and reliable rotation;
- Hydraulic motor fixed with two-way hydraulic lock that can realize self-locking at any angle.

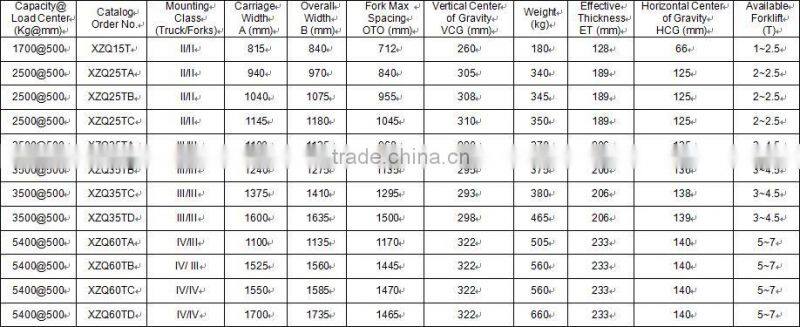

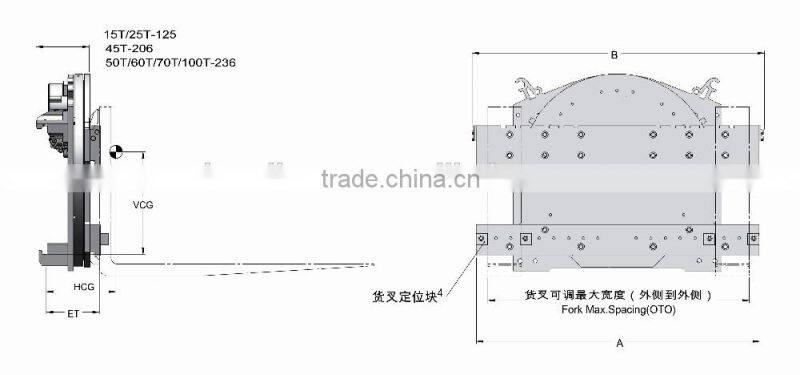

Technical Data:
Remarks:
1. Please get the actual comprehensive loading capacity of forklift and attachment from the factory;
2. Matching this attachment requires one more oil circuit for the forklift;
3. Forks can be added according to user’s requirement, please note the loading capacity of the forks;
4. In respect of the whole rotators which middle hooks are attached, the forks equipped for rotators must be welded with middle hooks correctly.
Above listed models are common products of Handbarow, other models can also be provided for customer according to special working conditions. Please contact Handbarow sales representative.
