Best selling jeans making mini laser engraving machine-40W
( It is developed for engraving and cutting most of the nonmetal material, always
dedicating to improve the working efficiency and working accuracy. )
Features of this mini laser engarving machine-40W:
1) High quality Reci Brand Laser Tube provide the strong laser beam and longer service life
2)The Imported Optical Reflectors and Focus lens adopt high intensity metal molybdenum and non sphere focusing lens, making the cutting effect much better.
3) Adopting DSP Digital Screen Technology, making the operation much easier.
4) Off-line Control System which can not only work without computer, but also connect to U flash disk, USB communication.
5) It is well compatible with Autocad, Coreldraw and other image processing software.
Technical Prameters of mini laser engraving machine-40W:
Model |
FSL1290 ( CO2 laser ) |
|
1 |
Working area |
1200mm*900mm |
2 |
Laser power |
40W 60W 80W 100W |
3 |
Engraving speed |
0-64000mm/min |
4 |
Cutting Speed |
0-36000mm/min |
5 |
Preposition accuracy |
±0.1mm |
6 |
Cutting Platform |
Blade table or Honeycomb table |
7 |
Driving system |
Stepper motors |
8 |
Cooling mode |
Circulating-water cooling and protection system |
9 |
Minimum letter size |
Chinese Character: 2.0mm×2.0mm, |
10 |
Power Supply |
AC220V 50HZ |
11 |
Dictate format |
BMP,HPGL,PLT,DST,DXP,AL |
12 |
Compatible Software |
CorelDraw ,AutoCAD transmit directly |
13 |
Operating Temperature |
5°C-40°C |
14 |
N.W/G.W |
300kg/350kg |
15 |
Packing dimension |
1960*1580*1360mm |

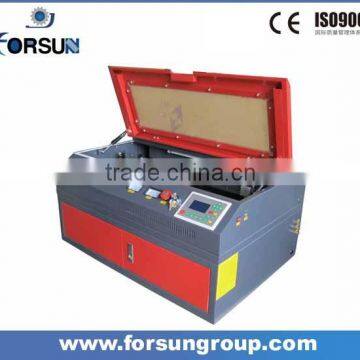

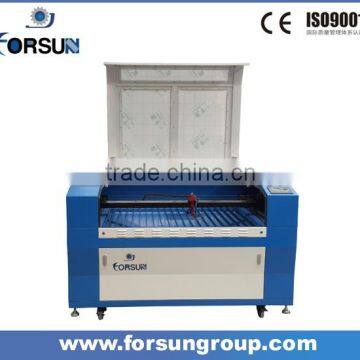

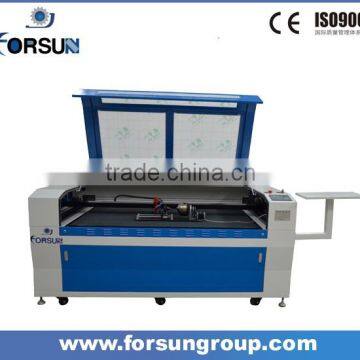

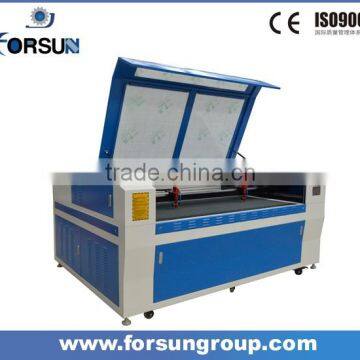

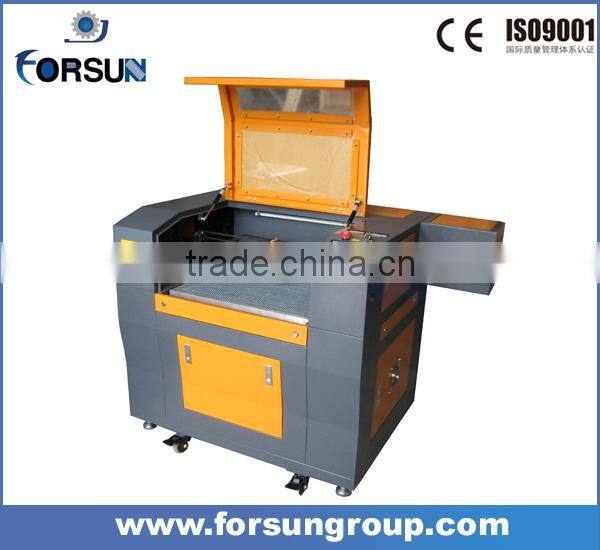

mini laser engraving machine-40w pictures' show:
mini laser engraving machine-40w Application:
Materials |
Cut |
Engrave |
Acrylic/Plexiglas/Perspex |
YES |
YES |
Organic board/Matte board/Double color plate |
YES |
YES |
Wood/Bamboo/Veneer/MDF |
YES |
YES |
Leather/Pig leather/Cow Leather/Sheep leather |
YES |
YES |
Fabric/Cloth/Textile |
YES |
YES |
Wool Felt |
YES |
YES |
Paper/Cardboard/Chipboard press board |
YES |
YES |
Plastic ABS/PVC/rubber/plastic |
YES |
YES |
Ceramic/Tile/Marble/Stone/Granite/Tombstone |
NO |
YES |
Fiber glass crystal/Glass |
NO |
YES |
Others non-metal materials |
|
YES |
Working samples for our mini laser engraving machine-40w:
Related profucts:
1) Laser engraving and machines:
2) CNC router machines:
Waterproof inside packing, plywood outside packing.
Services of our mini laser engraving machine-40w
1. 18 months guarantee for our machines except laser tube with 6 months.
2. 24 hours technical support by emails, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers'
place if customer agrees to air ticket, food and hotel.

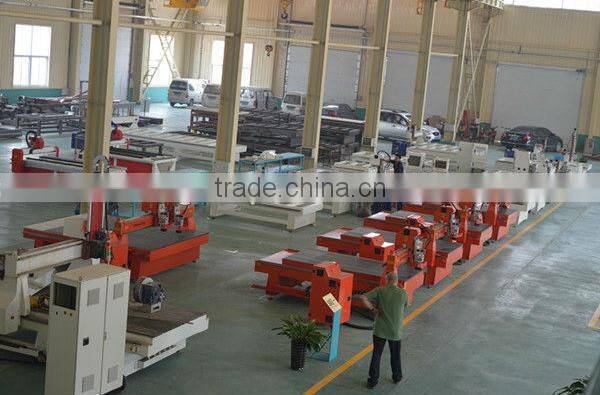

Our Factory:
Our Certificate:
Our Customers visit:
Q1:How long is the delivery time for mini laser engraving machine-40w?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific
requirements, it would be 15 to 30 days.
Q2: What mode of payment for this mini laser engraving machine-40w?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this machine during warranty period,
what should i do?
We will supply free parts in machine warranty period if machine have some problem.
While we also supply free after-service forever,so any doubts,just let us know,we will
give you solutions in 30 minutes.
More videos please check:
YOUTUBE: /channel/UCaCl11JOcXVn1r0QHto4y4A/videos
FACEBOOK: /forsuncnc
Skype:forsun.sales5 Always online, waiting for you~
