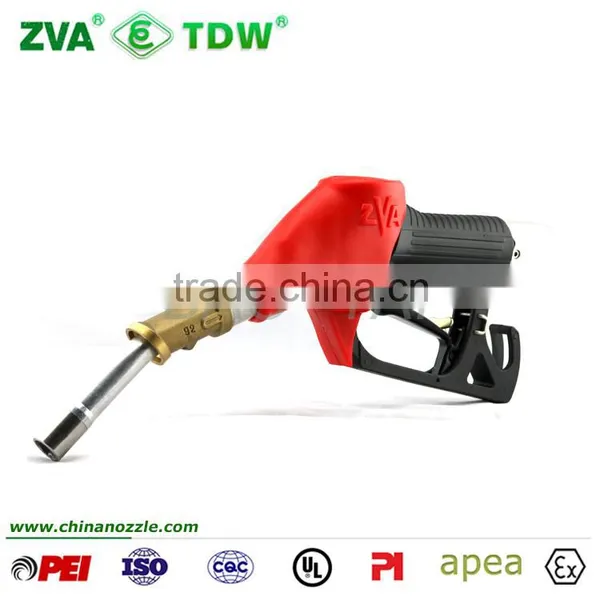

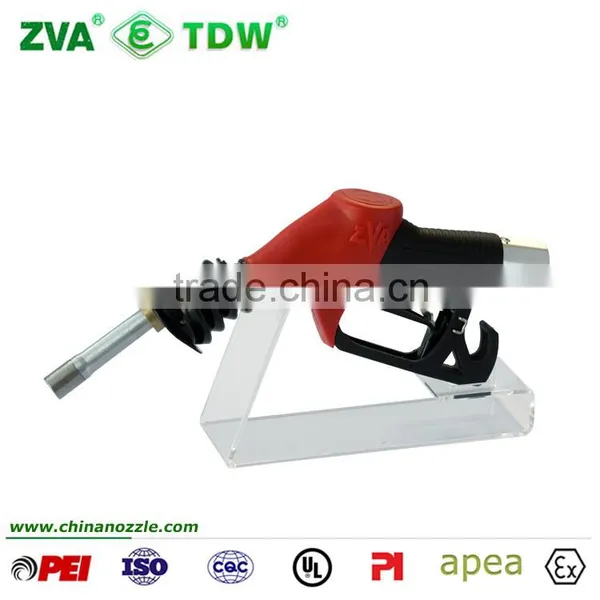

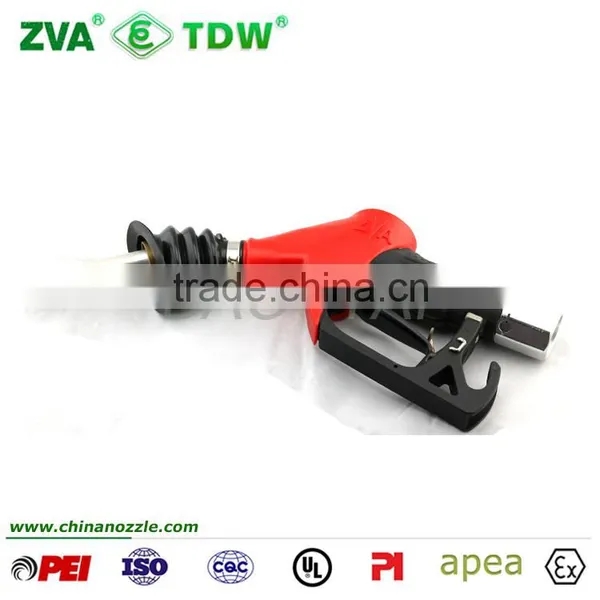

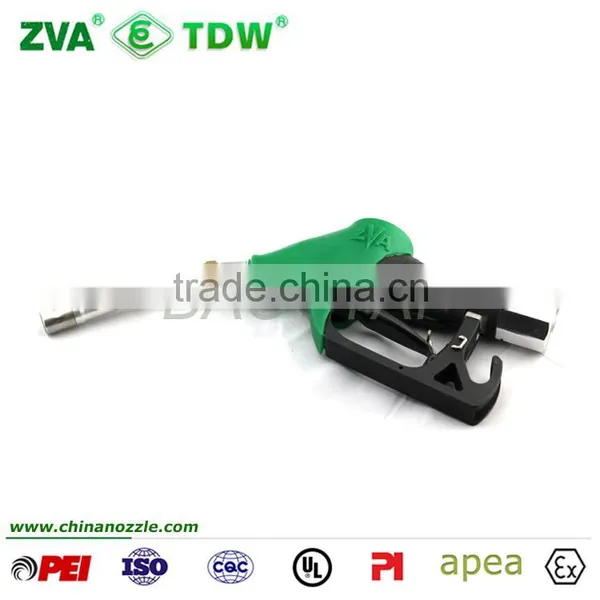

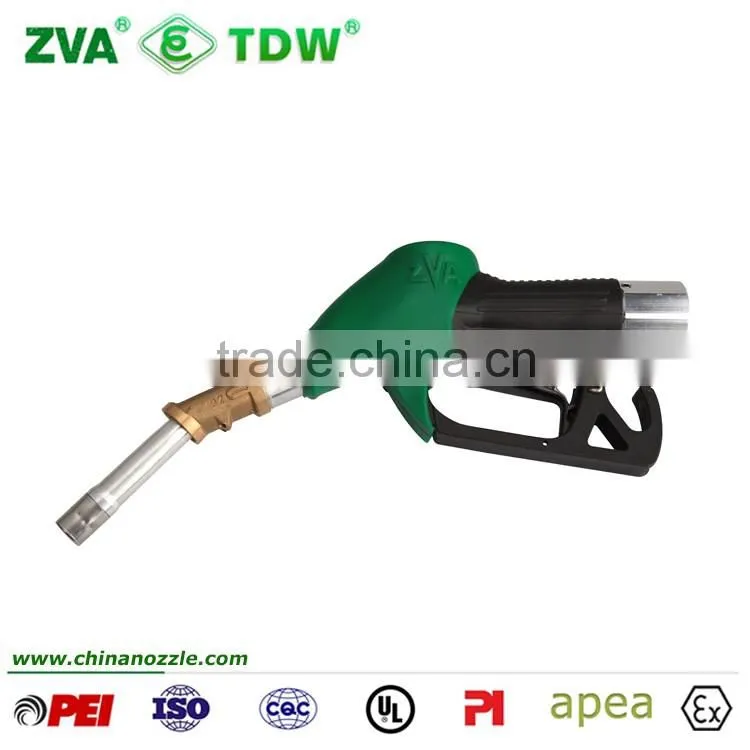

ZVA Nozzle Vapour Recovery oil gun zva automatic nozzle for Zva Fuel Dispenser
The GRVP version of the ZVA -BT200 GR vapour recovery nozzle has an integrated proportional valve(GVP). This feature provides an ideal low cost solution to enable retrofitting mechanical or upgrade older type dispenser to Stage II VR.
Features and Benefits:
Ø For all normal gasoline fuels - leaded or unleaded. Not suitable for water and hydrous liquids, alcohols, solvents, viscous oils and diesel fuels.
Ø TRISTOP - Venturi controlled automatic shut-off on request and safety cut-out attitude valve(protection when tilting and falling), 3- speed lever latch with removable latch pin.
Ø Full adjustable control of the vapour volume flow independent of the fuel flow delivery.
Ø ON/OFF function - Secure termination of the vapour line when there is no fuel flow. Important when connecting two or more hoses to a vacuum pump.
Ø Design "GR"- with vapour suction apout, internal vapour channel and COAX hose coupling M34*1.5. Reduced spout DN 16 acc. To ISO9158.
Ø Design "GRVP" - additionally with gas-and proportional valve GVP. Ø 100% Factory Tested.
| Material | |
| Body | Aluminum |
| Spout | Aluminum |
| Vapour Suction Spout | Bronze |
| Springs | Galvanised or Stainless Steel |
| Diaphragm | Buna-N, Polyurethane, Viton |
| Seals | Buna-N, Polyurethane, Viton |
| Inner Parts | Brass, Bronze, Acetal Resin/Delrin or Ultrapek |
| Covers | PVC |
| Technical Specifical | |
| Working Pressure | 0.05 - 0.35 Mpa |
| Max Flow Rate | 45 L/m |
| Temperature | =A17 |
| Inlet Thread | M34×1.5 |
| Net Weight | 1.17 KG |
| Order Specifications | |
| Item No. | Proportional Valve |
| ZVA-BT200GR | Without Proportional Valve |
| ZVA-BT200 GRVP | With Proportional Valve |
| Color Options | |
| Red, Green, Black |
| Package Data | |
| Size | Weight |
| 1pcs = 44*21.5*9 cm (box) | 1.35 kg |
| 10pcs = 0.057 club (carton) | 13.8 kg |
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
