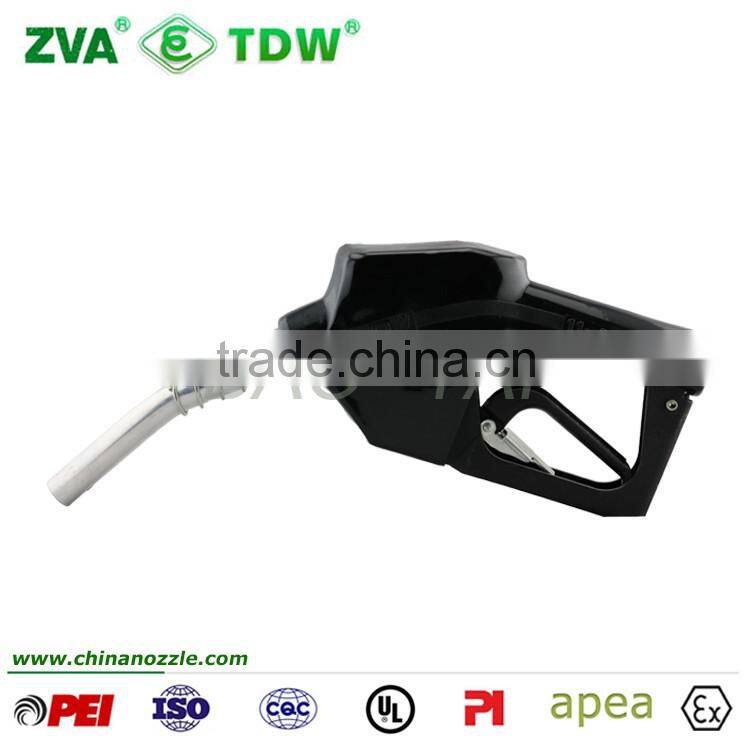

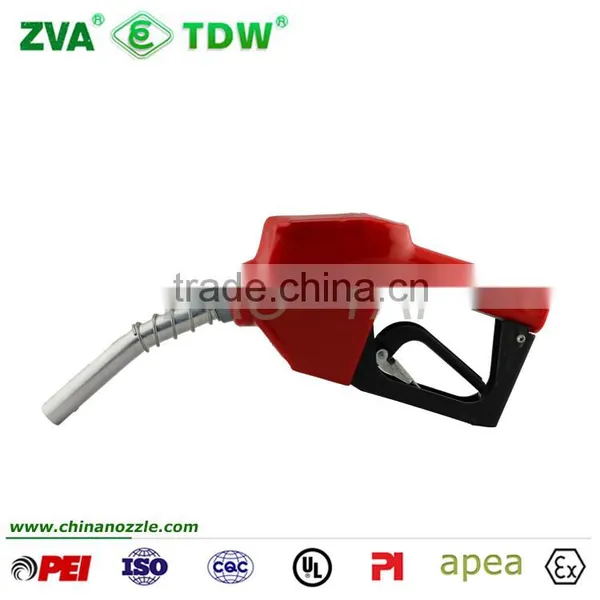

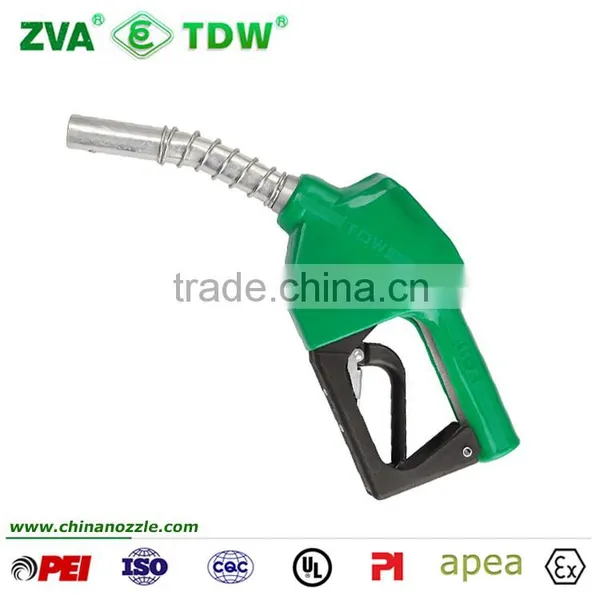

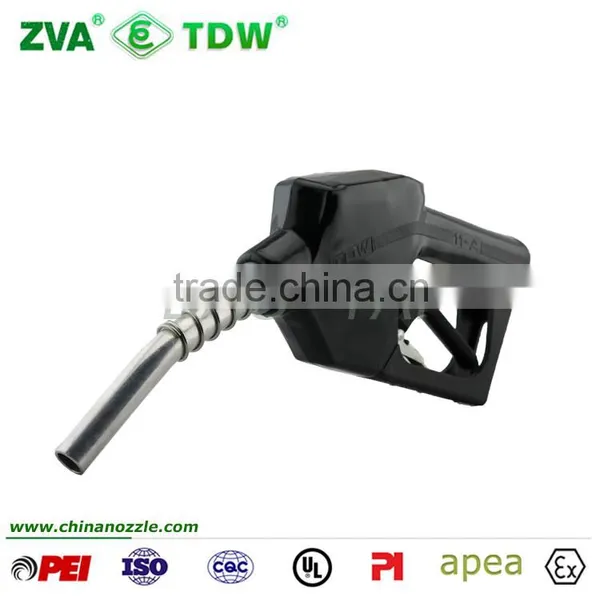

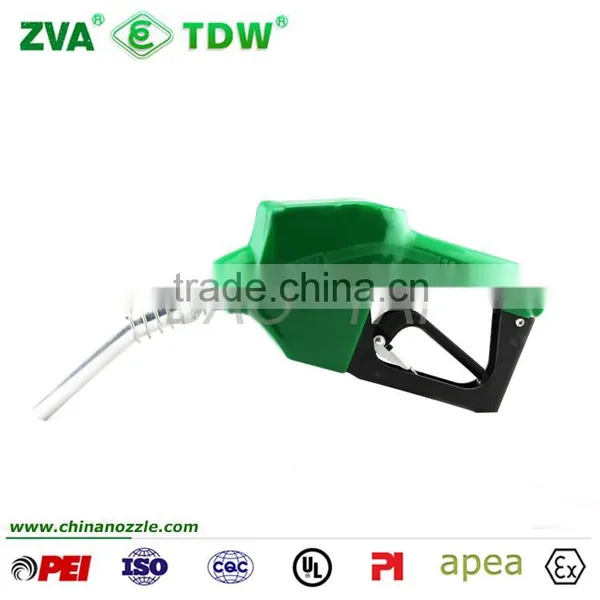

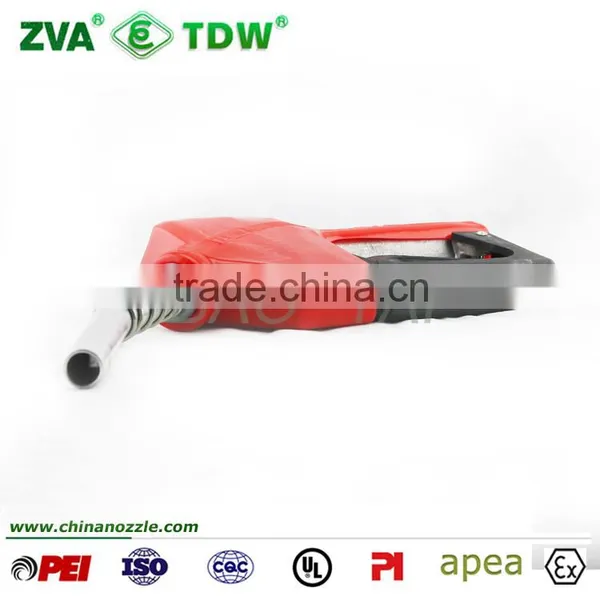

Automatic oil diesel fuel injector nozzle price fuel filling auto Seal nozzle 11a tdw nozzles for gas filling station
OPW 11A automatic nozzles are designed with today's consumers in mind. Small, trim, light weight, easy and convenient to use, It is a rugged performer that offers long life and reliable service. "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely.
Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
| Material | |
| Body | Aluminum |
| Lever and lever guard | Duratuff |
| Main stem | Extra hard stainless steel |
| Seals | Buna-N, Viton |
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Auto Shut-off sensibility | 0.1 second |
| Thread | NPT/BSPT |
| Spout Outlet Diameter | 15/16", 13/16" |
| Inlet Size | 3/4" |
| Flow Rate | 18-60 L/m(15/16"), 15-40 L/m(13/16") |
| Net Weight | 1.15 KG |
| Order Specifications | ||
| Item No. | Inlet Thread | Spout O.D. |
| TDW-11A01 | 3/4" NPT | 13/16" |
| TDW-11A02 | 3/4" NPT | 15/16" |
| TDW-11A03 | 3/4" BSPT | 13/16" |
| TDW-11A04 | 3/4" BSPT | 15/16" |
| Package Data | |
| Size | Weight |
| 1pcs = 43*17*6.5 cm (box) | 1.3 kg |
| 20pcs = 0.1 club (carton) | 26.3 kg |
| Color Options | |
| Red, Green, Blue, Yellow, Orange, Black |

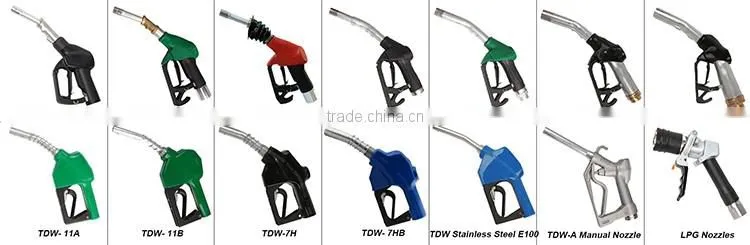

YOU MAY LIKE OUR OTHER AUTOMATIC NOZZLES, PLEASE CLICK THE BELOW PHOTO!
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
