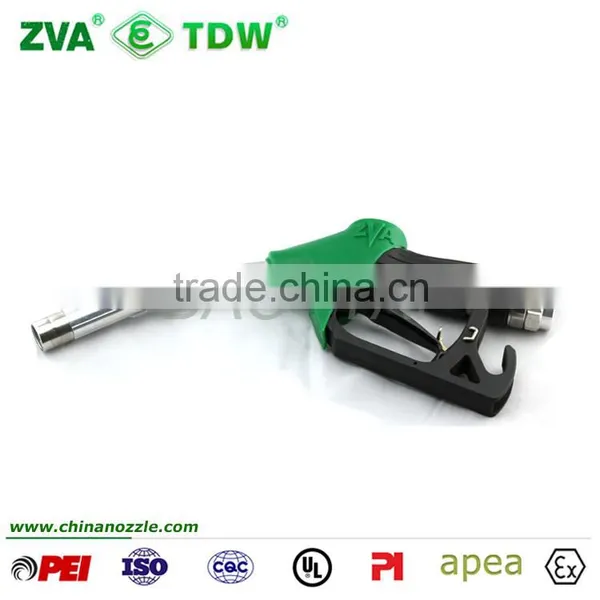

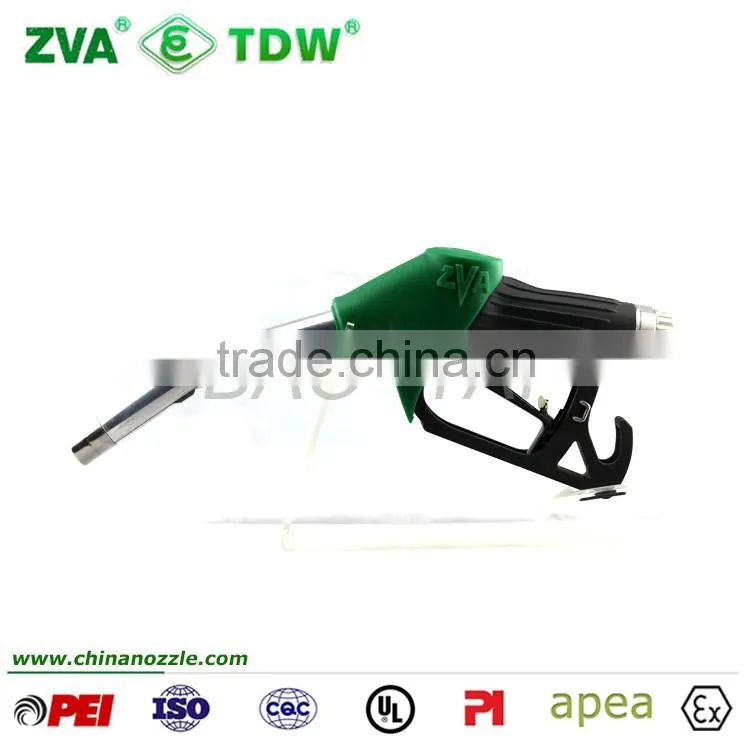

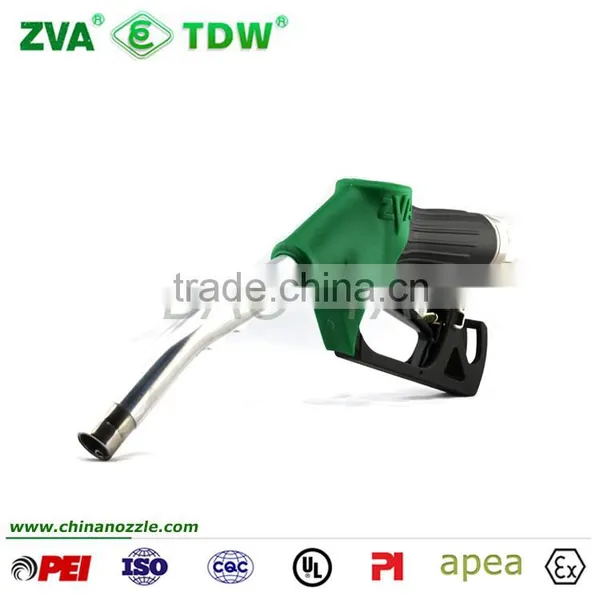

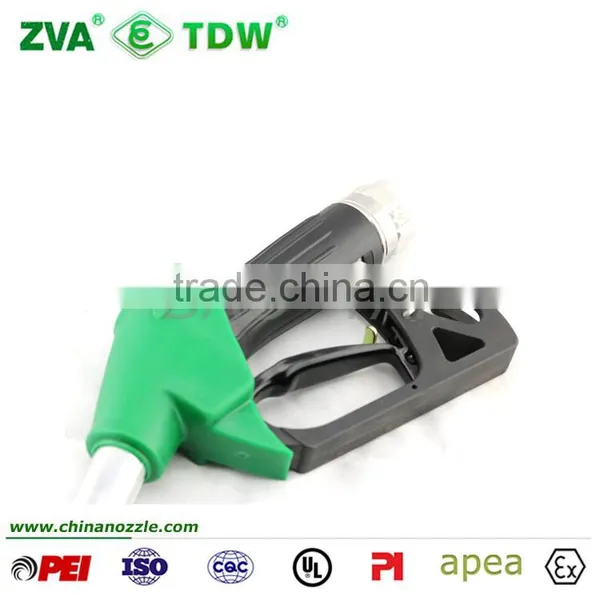

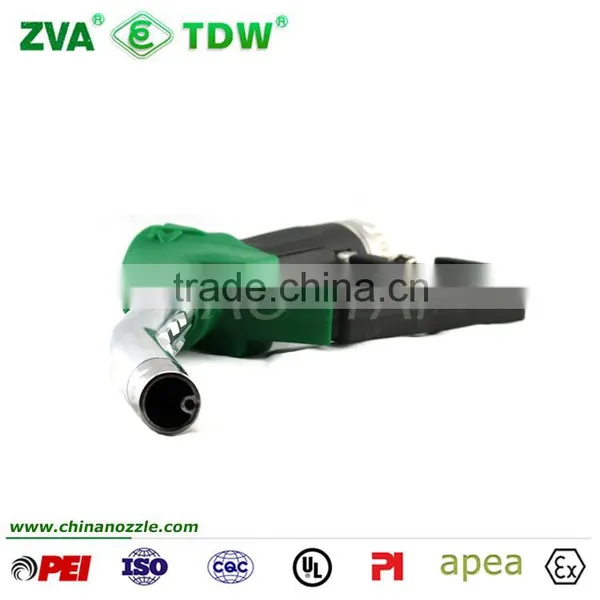

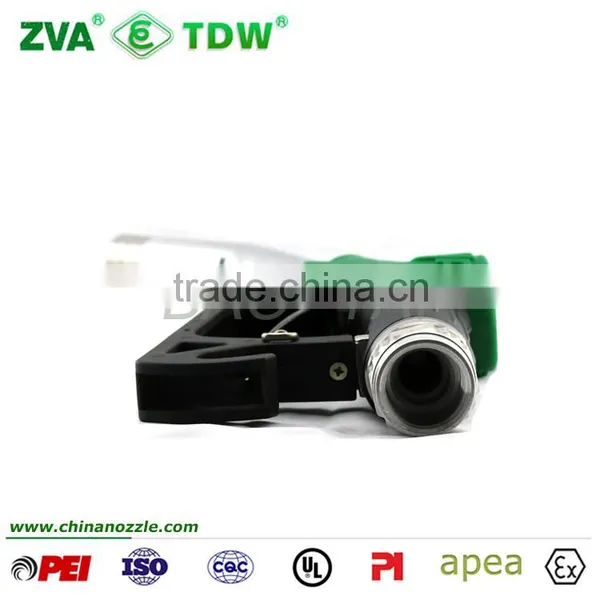

Automatic delivery nozzle fuel oil gun Oil refueling nozzle diesel gas zva dn19 fuel oil nozzle for gas station pump nozzle
ZVA DN 19 automatic nozzle is a fuel-dispensing nozzle with an automatic safety shut off for wet-hose use with electrical operated petrol dispensing pumps. For gasoline, diesel and fuel oil, not suitable for viscous oils and water or solvents.
Ø Working principle - The flow through the nozzle creats a vacuum at the valve seat. Air is drawn in through the sensing port at the tip of the spout, through the safety cut-out, past the diaphragm, and into the fuel.The valve will remain open while the air flows freely . When the fuel reaches the sensing port , suction builds up rapidly until it lifts the diaphragm and trips the automatic action which shuts the valve. The mechanic also trips if the ball of the safety cut-off rolls back to obstruct the free airflow.It will also occur if the spout is pointed upwards or if the nozzle is dropped onto the ground.The valve opens with the flow, allowing smooth low control for"to-the-penny" dispensing.It closes against the flow for a soft shock-less closure.

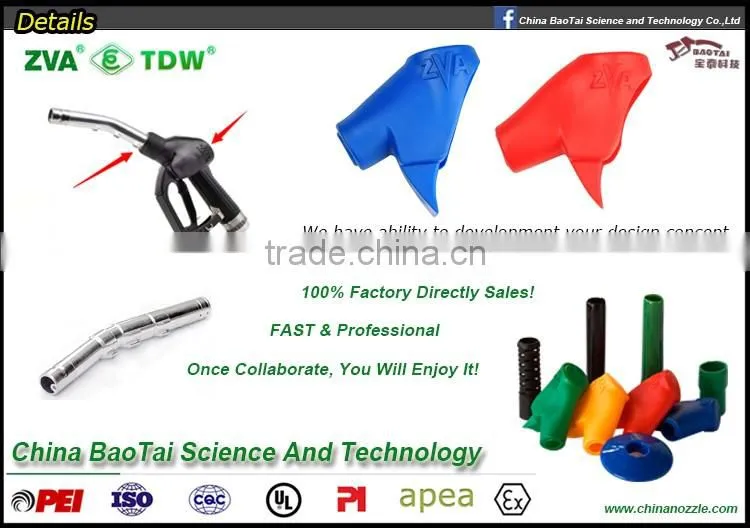

Ø All type of guards are available if requested.
Ø "ZVA" logo or blank are available
Ø 100% Factory tested.
| Material | |
| Body | Aluminum |
| Spout | Aluminum |
| Swivel | Aluminum |
| Seals | Buna-N, Viton |
| Covers | PVC |
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Flow Rate | 18-60 L/m |
| Auto Shut-off sensibility | 0.1 second |
| Spout Internal Diameter | 19mm |
| Intel Thread | M34 × 1.5 |
| Net Weight | 1.1 KG |
| Order Specifications | ||
| Item No. | Swivel | Inlet Size |
| ZVA DN1901 | without swivel | M34 × 1.5 |
| ZVA DN1902 | with swivel | Female, BSP, 3/4" |
| ZVA DN1903 | with swivel | Female, NPT, 3/4" |
| ZVA DN1904 | with swivel | Male, BSP, 3/4" |
| ZVA DN1905 | with swivel | Male, NPT, 3/4" |
| ZVA DN1906 | with swivel | Female, BSP, 1" |
| ZVA DN1907 | with swivel | Female, NPT, 1" |
| ZVA DN1908 | with swivel | Male, BSP, 1" |
| ZVA DN1909 | with swivel | Male, NPT, 1" |
| Color Options | |
| Red, Green, Blue, Yellow, Orange, Black |
| Package Data | |
| Size | Gross Weight |
| 1pcs = 48*17*6.5 cm (box) | 1.25 kg |
| 10pcs = 0.057 club (carton) | 12.8 kg |
YOU MAY LIKE OUR OTHER AUTOMATIC NOZZLES.( CLICK !!!)
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
