Help CenterMaxdor GTC Automatic Commercial Sliding Curved Doors
Related Products
-
Maxdor GTC Aluminium Curved Doors Guangzhou ManufacturerUS$ 800.00 - 1000.00MOQ: 1 Set -
Maxdor GTW Semi-circle Aluminium Automatic Curved Sliding DoorUS$ 800.00 - 1000.00MOQ: 1 Set
-
Aluminium Automatic Full Circle Curved Sliding DoorUS$ 800.00 - 1000.00MOQ: 1 Set
-
Maxdor GTW Automatic Curved Doors Lock SystemUS$ 800.00 - 1000.00MOQ: 1 Set
-
Hign Quality Automatic Arc Door For CommercialUS$ 800.00 - 1000.00MOQ: 1 Set
Brand Name: Maxdor
Model Number:GTC
Door Type : curved sliding doors
Door Material: Glass , aluminum frame
Application type:stores,banks,hotel, Hospitals, restaurants,conference center,exhibition building
Delivery Detail: 10-15 days after receiving customers payment
Packaging Detail: Carton packing
*Can choose ES200 control system or GT150 (GT300 ) control system
Automatic curved sliding door includes semi-circle ,full circle or segment version, concave or convex version, with fixed panel or not.
Characteristic
*Safety Functions,If the door leaves are hindered when opening, they are immediately stopped.
*Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
*Self monitoring light barriers ,slow speed search for obstruction
Dimensions | |
|
Technical data
|
Door leaf weight (maxmum).100kg Opening speed per door leaf, adjustable 100-600mm/s Opening speed per door leaf, adjustable 100-655mm/s Opening and closing force, adjustable Maximum force on contact with an obstruction 150N Power input, max.360W Power supply data 220V/50-60Hz External power supply 24V/2.5A |
Standard Components |
|

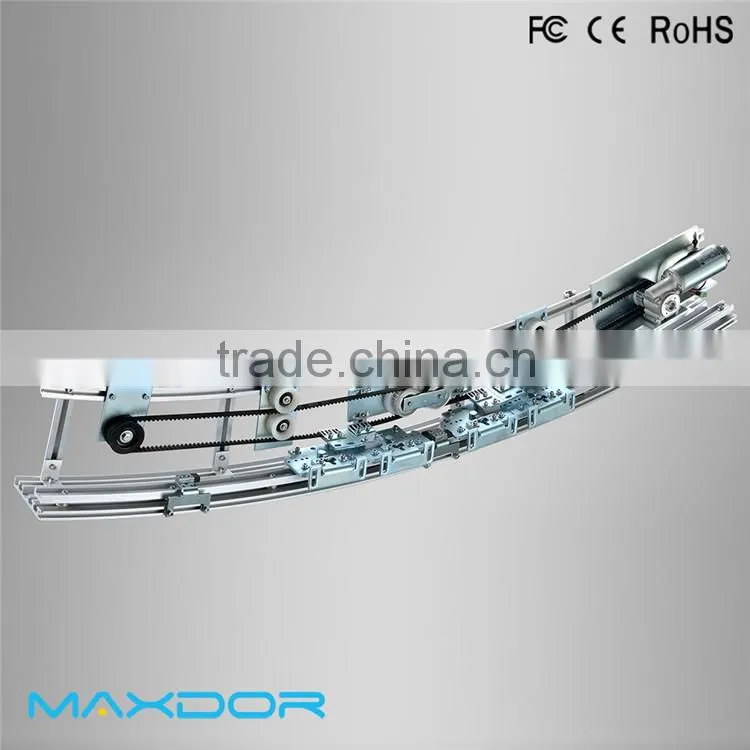

1.Mini Drive Unit (2-5) 2.Transformer 3.Motor 4.Decoder 5.Basic control module 6.Curver Track 7. Belt tensioning device 8.Carrier 9.Return pulley 10.End stop 11.Belt connection 12. Remote switch(or Functional switch)
|
Optional Accessory |
|
13.Electric mechanical lock 14. Battery pack 15.Cover 16. Glass clamping rail 17. Light barrier |
Maxdor GTC Automatic commercial curved glass doors
- R&D department will develop and improve new products for the guests .
- Our products provide 2 years warranty
*All product through CE ,ROHS ,FCC certification, strict quality supervision.
