Omega Forming Machine

Omega Forming Machine thumbnail-1
Omega Forming Machine thumbnail-2
Omega Forming Machine thumbnail-3
Omega Forming Machine thumbnail-4
Omega Forming Machine thumbnail-5
Omega Forming Machine photo-1
Omega Forming Machine photo-2
Omega Forming Machine photo-3
Omega Forming Machine photo-4
Omega Forming Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, dry wall forming machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Hangzhou Zhongyuan Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, dry wall forming machine
Tile Type Steel
Use Other, channel
Production Capacity 10m/min(including cutting time)
Place of Origin Zhejiang, China
Brand Name Zhongyuan
Model Number ZYYX
Power(W) 6.6KW
Voltage 380V/50HZ/3Phase
Dimension(L*W*H) about 6m x 1.5m x 1.4m
Weight 4tons
Certification BV & SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Omaga forming machine



1.Technical parameter:

Item

Specification



Material

Type

Pre-painted steel coil & galvanized coils

Thickness(mm)

0.3-0.7

Yield strength(mpa)

235-345

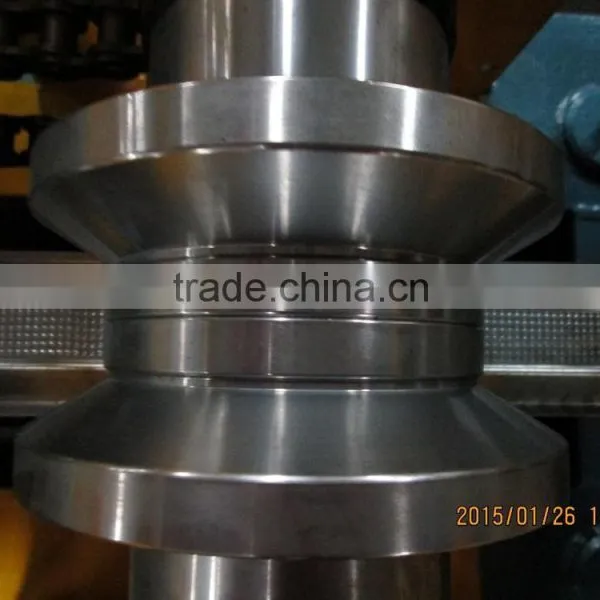

Roller material

45#Chrome steel

Forming speed(m/min)

About 20

Output speed(m/min)

10

Speed adjusting mode

AC Frequency

Roller drive

Decelerating motor + Chain drive

Cutting mode

Hydraulic cutting

Cutter material

Cr12 mould steel

Length measurement

Encoder

Control mode

Mitsubishi PLC

Operating mode

Button + Mitsubishi Touch screen

Main motor power(kw)

4KW

Hydraulic station motor power(kw)

 2.2 KW

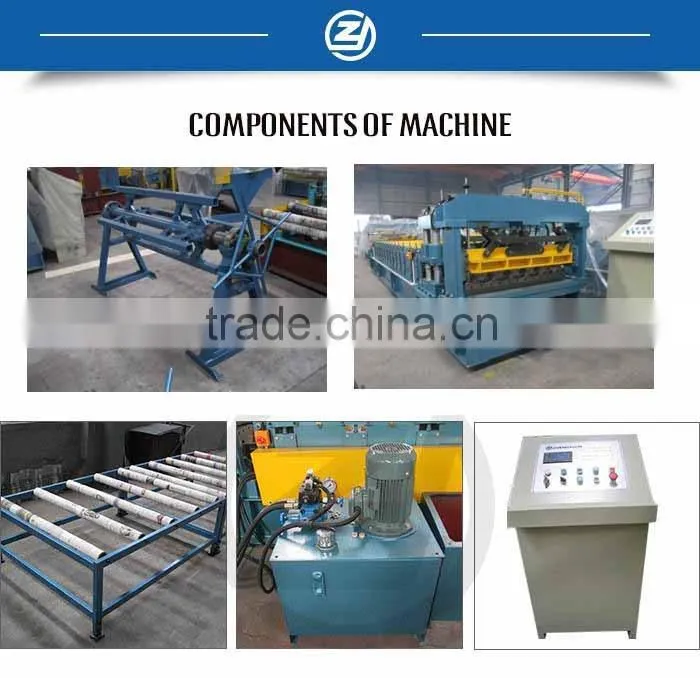

2. Components of machine:

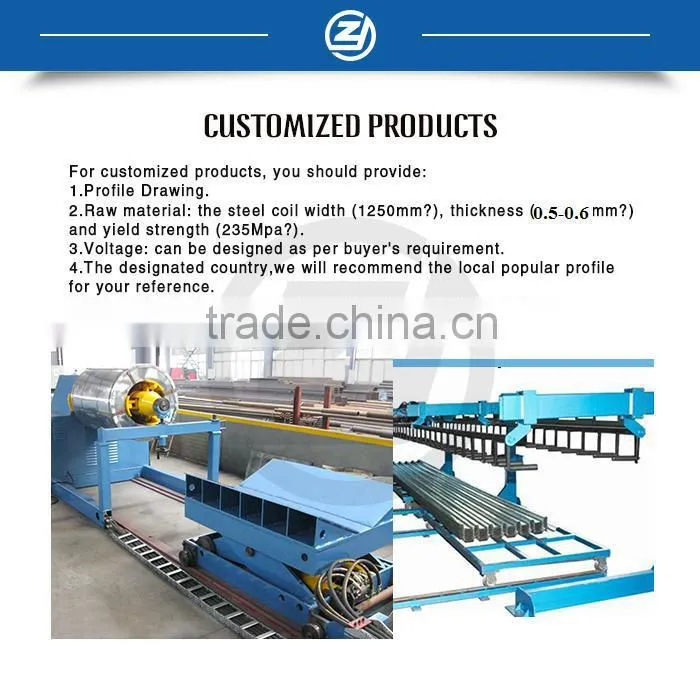

Decoiler

1set  (3MT capacity)

Feeding & guiding device

1set

Main roll forming machine

1set

Hydraulic cutting system

1set

Controlling system

1set

Run out table

1set



3.Process flow:

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

Omega Forming Machine







.

Omega Forming MachineOmega Forming MachineOmega Forming MachineOmega Forming MachineOmega Forming Machine

Omega Forming MachineOmega Forming MachineOmega Forming MachineOmega Forming Machine
