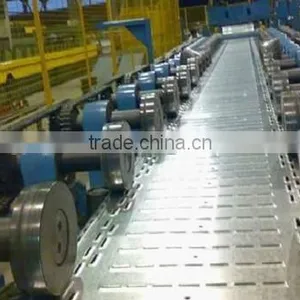

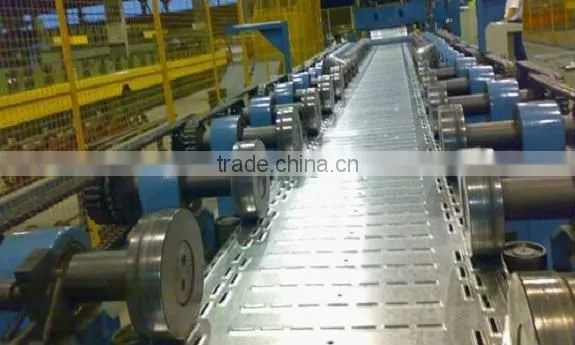

Hangzhou Cable Tray Forming Machine
1.Components for the machine
This forming line includes in decoiler,sheet leveling equipment,punching machine,roll forming machine,cutting equipment,hydraulic station, electric controlling system and supporter for product.
One machine can make many size cable tray.
2. Technical parameter:
Suitable material Galvanization steel sheet and hot rolled steel sheet
Thickness of material 1.0-1.5mm
Yield strength of material between 240-300Mpa
Forming speed about 10m/min.
Producing speed about 3m/min.
Total power requirement Main motor: 5.5kw
hydraulic motor:5.5kw

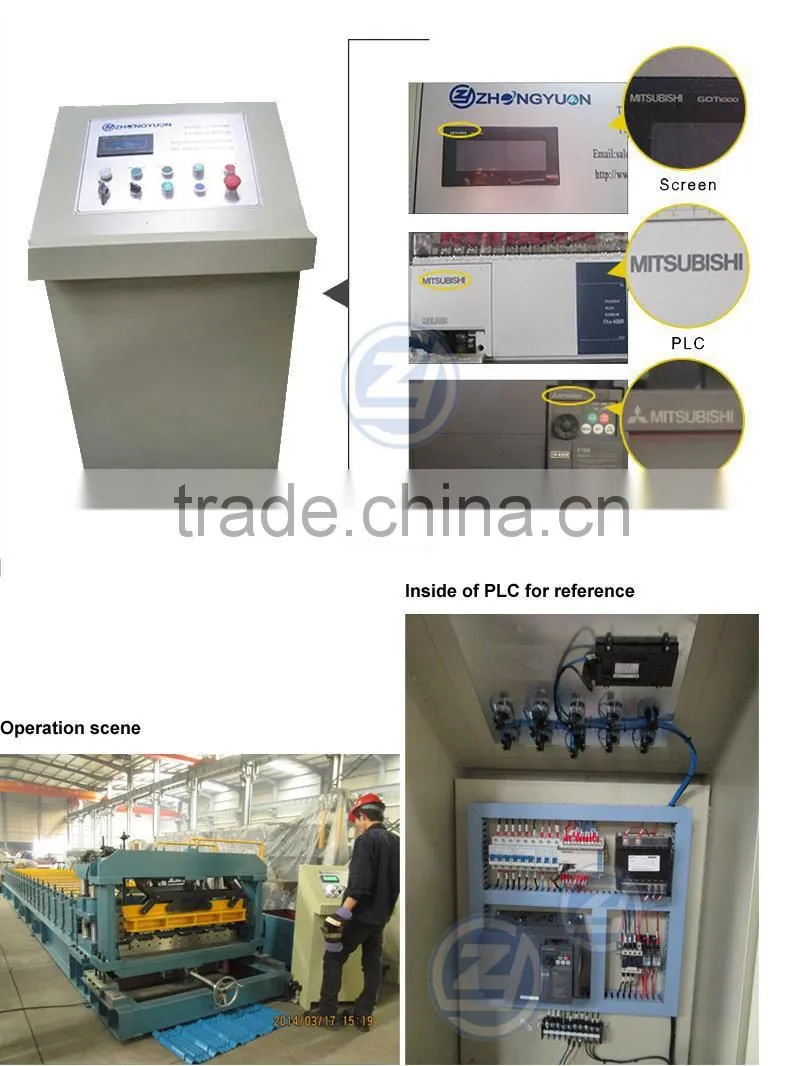

Control system Mitsubishi PLC system
Electrical requirement 380V/3ph/60HZ(optional)
Type of cutting Post-cutting
Length of product Controled by PLC controller Mitsubishi
galvanization steel sheet and hot rolled steel sheet
3.Working Flow:
Decoiling the sheet--Feeding system--leveling sheet--punching sheet--foll forming sheet--measure length and cutting the sheet--produce to the supporter
| Packaging Details: | 1. need about 1*20Gp container for loading one set machine completely; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container. |
|---|---|
| Delivery Detail: | within 6 months after getting advance payment. |
Famous Brand: Japanese Mitsubishi PLC and Converter.
Operating Mode: Touch screen and Button.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We joined Alibaba trade assurance. With Trade Assurance, you’re covered for On-time shipment and Pre-shipment product quality (Optional).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
